Icrimp IWS-3220S Micro Pin Connector Crimping Tool, AWG 32-20, Ratchet Crimper f
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230746586
- Quantity : 1 item
- Views : 3
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:14:25 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description

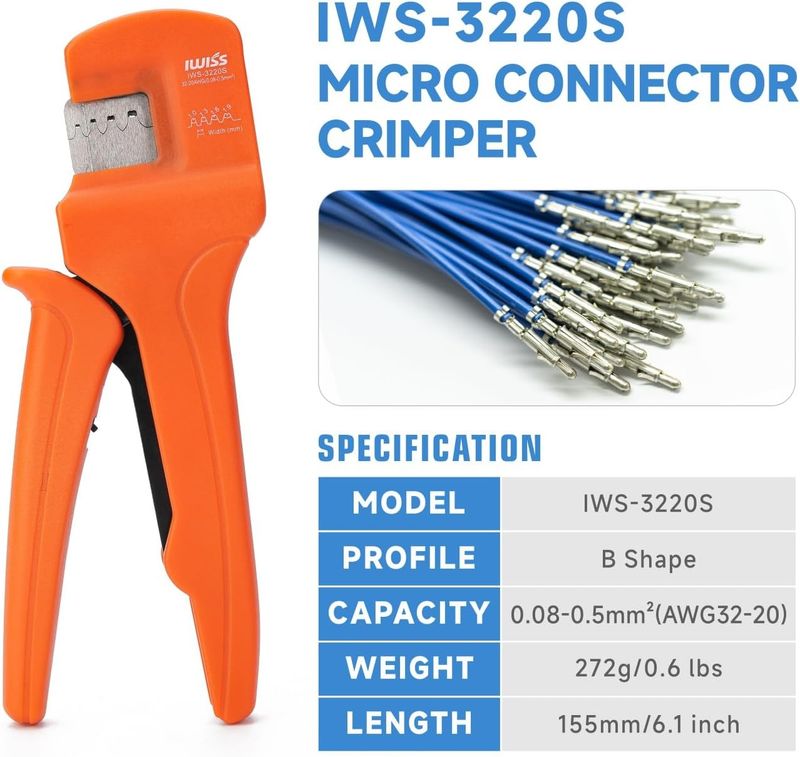

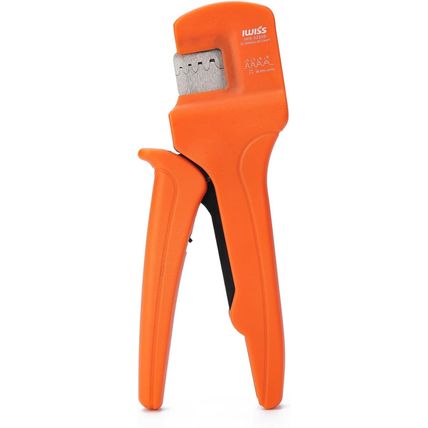

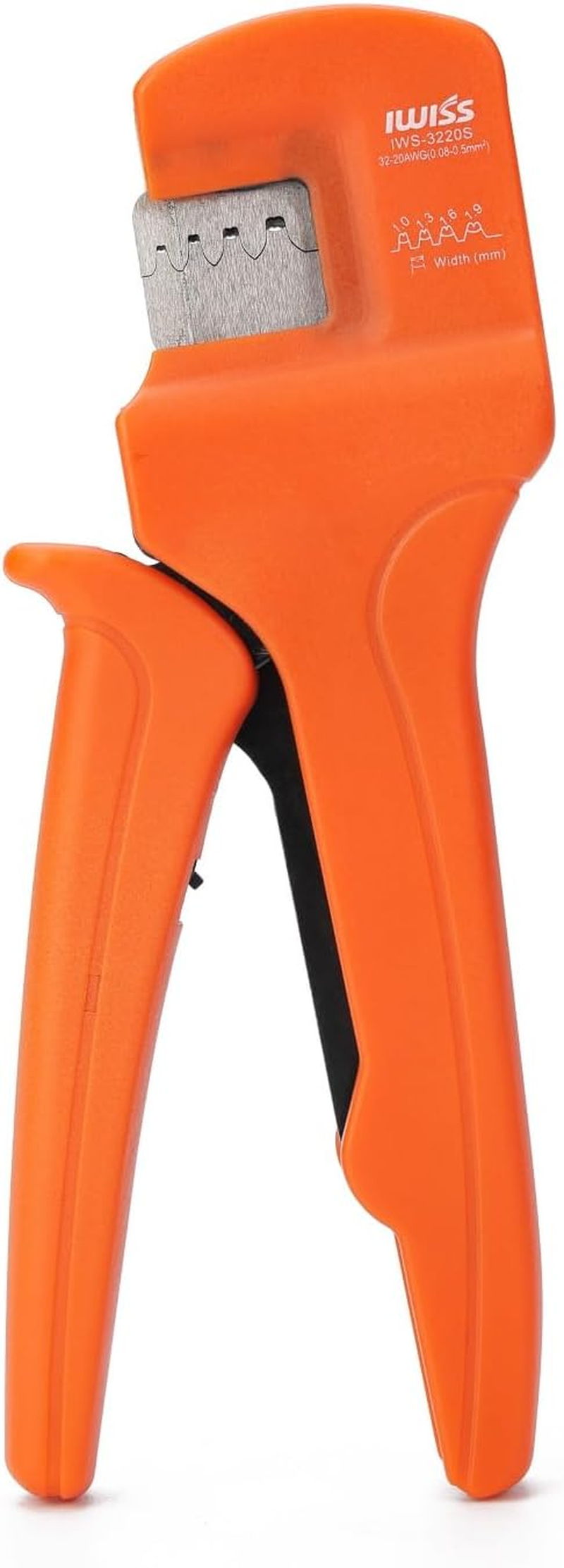

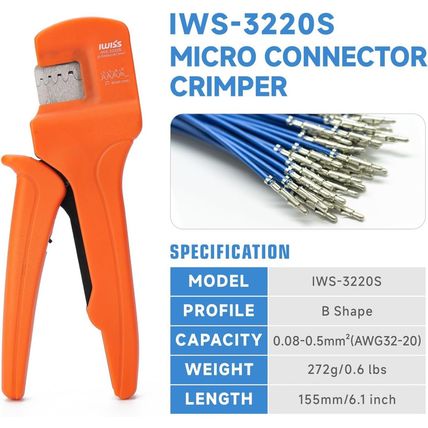

Icrimp IWS-3220S Micro Pin Connector Crimping Tool, AWG 32-20, Ratchet Crimper for JST XH, PH, SH, Molex KK, D-Sub Terminals
Description
| Item model number | IWS-3220S |
| Batteries Required? | No |
| Power Source | manual |
| Color | Orange |
| Brand | iCRIMP |
| Country of Origin | China |
| Grip Type | Ergonomic |
| Item Weight | 10.2 ounces |
| Batteries Included? | No |
| Model | IWS-3220S |
| Manufacturer | Zhejiang IWISS Electric Co.,Ltd. |
| Package Dimensions | 6.85 x 2.91 x 1.26 inches |
| Included Components | Case |
- IWS-3220S ratcheting wire crimping tool is designed to crimp micro connectors AWG 32-20.
- Innovative parallel crimping method allows to make delicate crimps to electrical micro connectors.
- Precision die set forms insulation tab and cord tab of open barrel connectors into B shapes in one-time crimp, for time-saving and uniformity.
- Perfect wire crimper for Dupont, Sumitomo, 2.54mm pitch JST XH, Molex KK, 2.0mm pitch JST XH, 1.5mm pitch JST ZH connectors.
- Ideal for making custom wiring in 3D printers, stepper motor and servo where electronic connectors are applied.
Product Description
Compact, Precision, Ratcheting
Micro Connector Crimping Tool
- Versatile and compatible with various connector types (JST, Dupont, Molex, etc)
- OEM wiring tool for electronic devices like 3D printer, EPS header jumpers.
Dupont Jumper Wire
Dupont 2.54 mm Pitch connector is a low profile wire-to-wire connector delivering 3.0A current for AWG #22 to #28 suitable for either power transmission systems or chassis wiring.
Molex Connector
Feature a 2.54 mm pitch which provide a simple and economical way to make multipole connections to printed circuit boards.

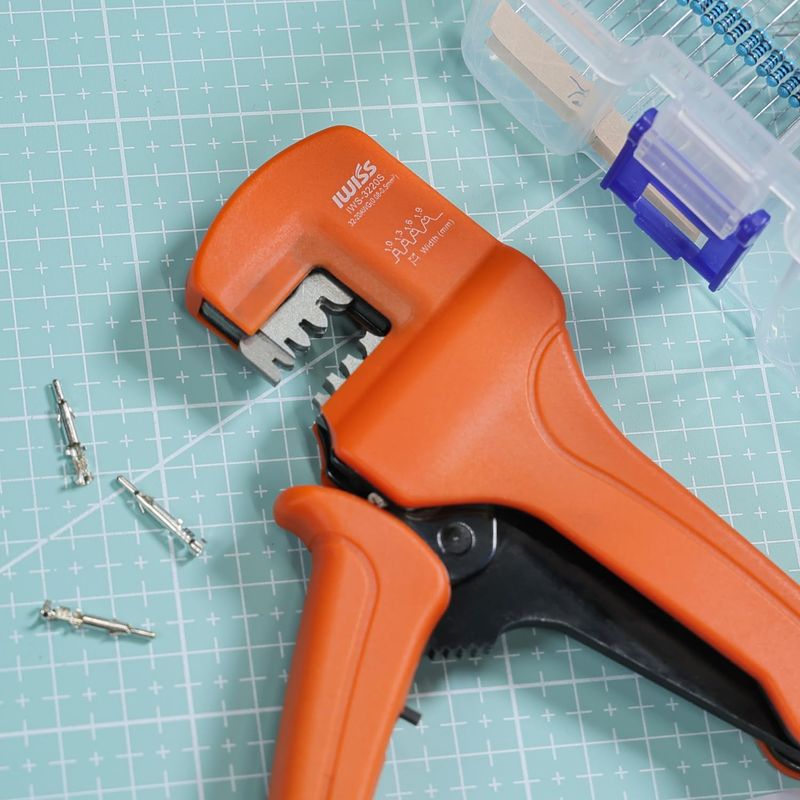

High Precision Wire Crimping Tool

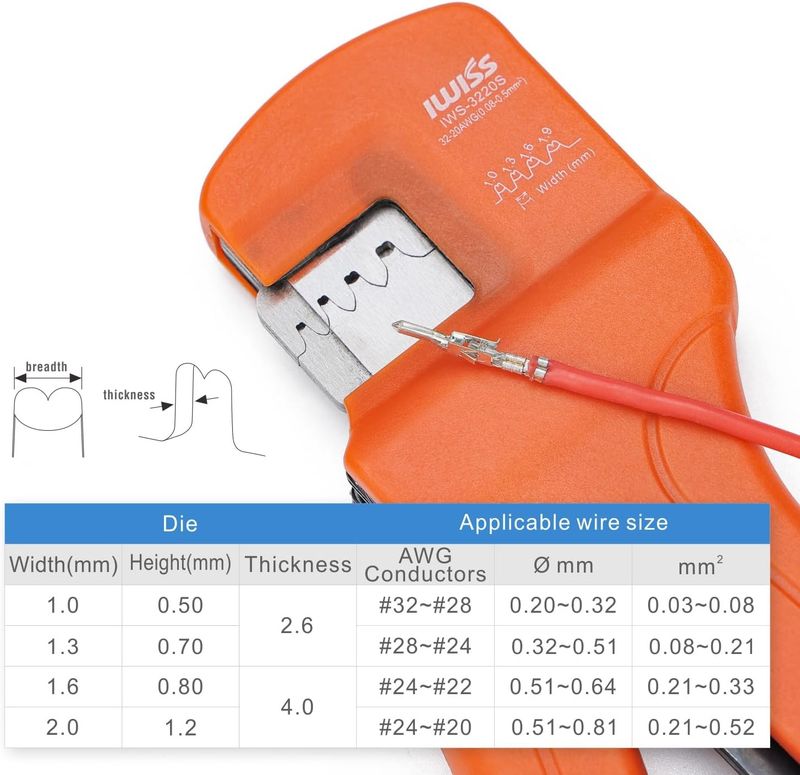

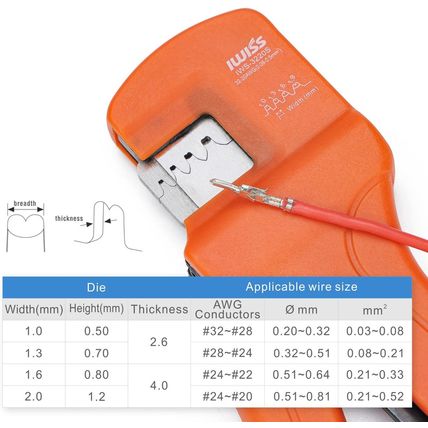

- 4-slot crimp jaw processed with EDM wire cutting.
- Parallel action consistent and accurate crimps.
- Ratcheted crimp to ensure proper termination.

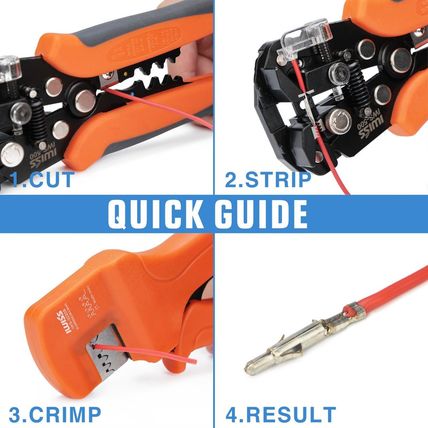

How to Crimp Open Barrel Terminals
Wire Cutting
Cut off certain length of cable.
Stripping
Strip off wire insulation.
Crimping
Choose among die sets and crimp over terminal.
Crimped
Wire terminal is crimped into B shape.

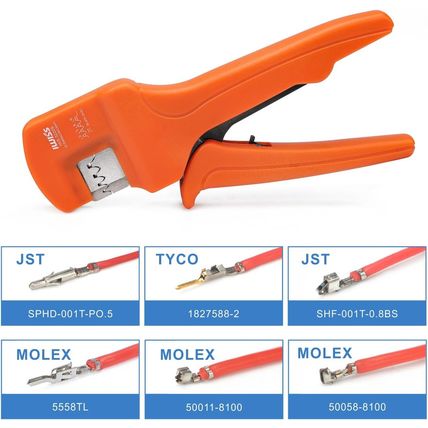

Dupont, JST, Molex Connectors
How to Crimp
IWS-3220S is a high-quality micro connector crimp tool for most connectors we use on 3D printers. This ratcheting type lets you get a consistent crimp and does a double crimp in one squeeze.
-

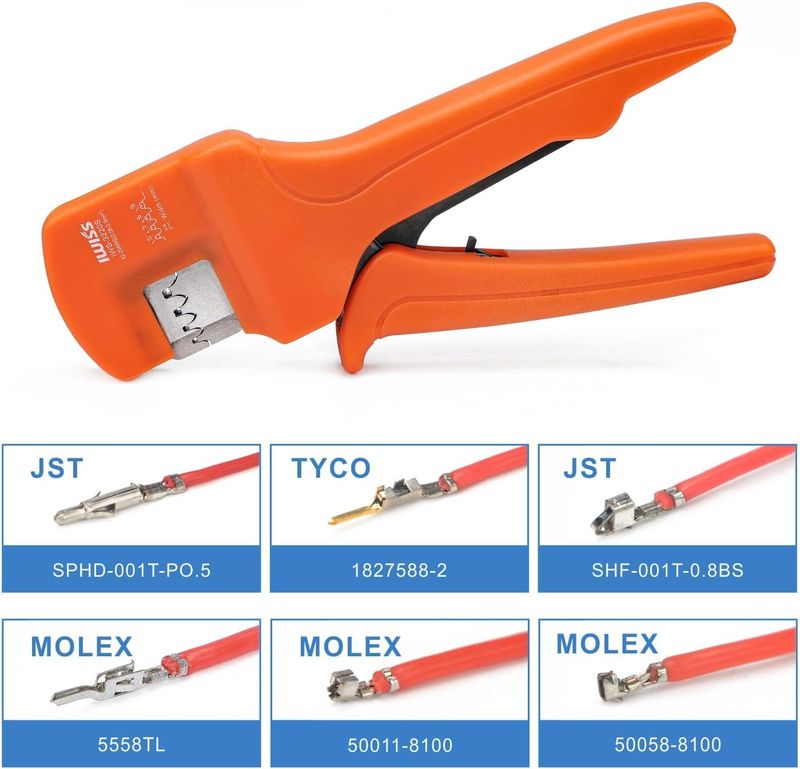

What JST connectors can IWS-3220S crimp?
IWS-3220S is capable of crimping JST XH, SM, PH, SH, ZH connectors, 1.25mm pitch and 2.54mm pitch micro connectors. Crimps micro terminals in parallel action to promise precision crimp results.
-
What Molex connectors can IWS-3220S crimp?
IWS-3220S is capable of crimping Molex KK254, SL70058 series contacts, mini 50, Mini-Lock connectors, KK 0.100, Micro-Fit connector, etc.
-
What are differences among IWS-3220S, IWS-0302BS, IWS-2549S?
These three crimpers share the same crimper body, but differ in crimp range. IWS-3220S(AWG 32-20). IWS-0302BS(AWG 32-22), IWS-2549S(AWG 28-18).
iCrimp Micro Connector Crimpers
-
-
Crimp Range
AWG 32-20
-
Crimp Range
AWG 32-22
-
Crimp Range
AWG 28-18
-
-
-
Mechanism
Ratcheting
-
Mechanism
Ratcheting
-
Mechanism
Ratcheting
-
-
-
Crimp Profile
B Crimps
-
Crimp Profile
B Crimps
-
Crimp Profile
B Crimps
-
-
-
Crimping Style
One-step crimping
-
Crimping Style
One-step crimping
-
Crimping Style
One-step crimping
-
