2 Sets - Door Contacts Brown Flush Speedfit Round Contacts - Free Shipping

DETAILS

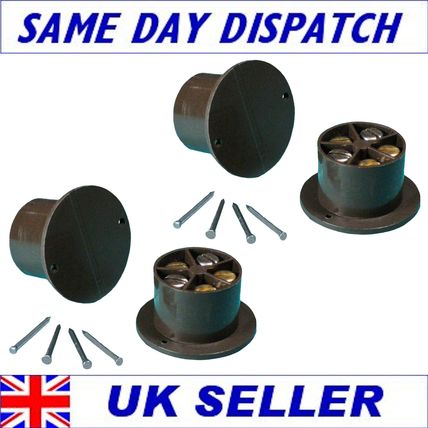

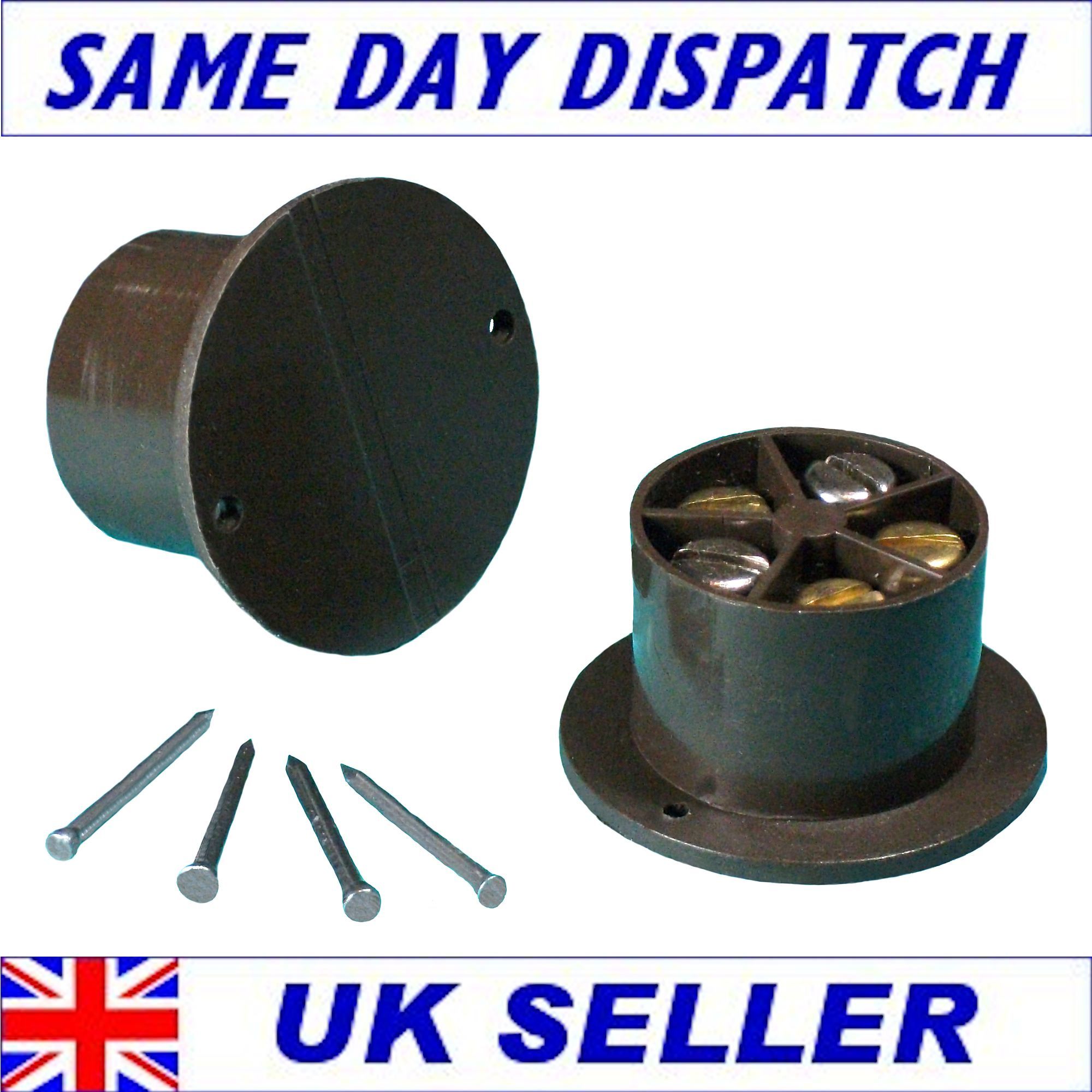

Two brown flush contacts designed to be fitted into the door and door frame. The main body of the contact measures 19mm in diameter approx with a depth of 13mm. The flange has a diameter of 27mm and a depth of around 1mm. To fit this you will need a 20mm spade bit for the body of the contact and if you wish to recess the flange you will need a 28mm spade bit. If you are going to recess the flange the 28mm spade should be used first followed by the 20mm bit. These type of contacts give a more professional finish to the job, but require a much higher degree of skill to fit than surface contacts. The contacts should line up when the door is closed to achieve the maximum operating gap. The operating gap can be adjusted by rotating the magnet to different positions before pinning in place.

SPECIFICATIONS

Grade 1, Environmental Class 2 contacts with an operating gap of around 14mm, Colour brown, fixing pins included. These are normally closed contacts and therefore work with all the leading brands of burglar alarm panels: ADE, Honeywell, Accenta, Optima, Gardtec, Risco etc.
