YIHUA 853D 2A USB SMD Hot Air Rework Soldering Iron Station, DC Power Supply 0-1
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230745896
- Quantity : 1 item
- Views : 2
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:13:04 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description
YIHUA 853D 2A USB SMD Hot Air Rework Soldering Iron Station, DC Power Supply 0-15V 0-2A with 5V USB Charging Port and 35 Volt DC Voltage Test Meter
Description
| Item model number | 853D 2A USB |
| Power Source | Corded Electric |
| Upper Temperature Rating | 896 Degrees Fahrenheit |
| Country of Origin | China |
| Batteries Included? | No |
| Batteries Required? | No |
| Lower Temperature Rating | 392 Degrees Fahrenheit |
| Brand | YIHUA |
| Product Dimensions | 9.96"D x 7.32"W x 4.88"H |
| Material | Plastic, Steel |
| Number of Channels | 2 |
| Included Components | 1 x IC Extractor, 4 x Hot Air Nozzles, 1 x Desoldering Pump (golden), 1 x ESD-Safe Tweezers, 10 x Assorted Iron Tips |
| Item Package Quantity | 1 |
| Item Weight | 4.76 Kilograms |
| Part Number | 853D |
| Display Type | LED |
| Temperature Stability | 1.8, 3.6 degrees_celsius |
| Global Trade Identification Number | 05060497921825 |
| Voltage | 110 Volts |
| Manufacturer | Guangzhou Yihua Electronic Equipment Co., Ltd. |
| Wattage | 3E+1 |
| Size | 853D 2A USB |

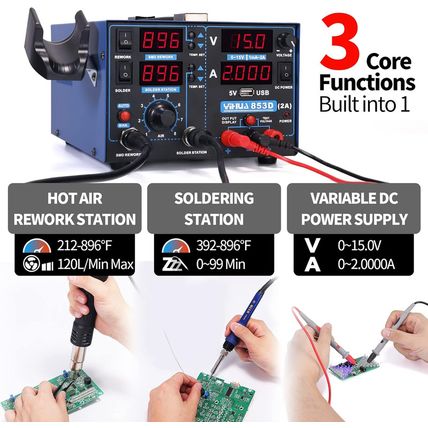

- 1 = 3 – You now get three professionally integrated stations in one compact package. The 853D Series comes equipped with a soldering iron station, a hot air rework station, and a DC power supply (with voltmeter mode). All three stations can be used simultaneously or independently.
- Specifications – You can set the soldering station from 392~896°F, the hot air rework station from 212~896°F with adjustable air volume (120L/Min Max.), the DC power supply from 0~2A / 0~15V in output mode or, measure 0~35V DC in test mode. We equipped the station with a 0.5A/5V USB port so you can test or work on devices while they're powered.
- Precision – Both the soldering station and the hot air rework station comes with high precision PID temperature stabilization function to maintain them at the set temperature. This way, you can enjoy a more efficient and smoother soldering/rework experience.
- Extended Lifespan – A series of assistive functions to help preserve your station in mint condition for longer. You'll not only save on electricity bills but also the cost to replace wearable parts. These functions include sleep mode, automatic shut-down, and more.Read and follow safety guidelines and instruction manuals that come with the product before using it.
- Choose YIHUA with Confidence – Enjoy our 12-month US- exclusive manufacturer technical coverage and 24/7 professional assistance on Amazon. Note: This model is designed to operate on 110-127V with a US-standard power plug.
Product Description
Experience a seamless workflow for your projects.
What's a multi-station?
- Soldering Station
- Rework Station
- DC Power Supply
Why Choose a Multi Station?
We don’t just jam three tools into one box; you can use the soldering, hot air, power supply/testing stations simultaneously. With our multi-station, you no longer need multiple individual stations on your desk to complete a project.
By the industry, for the industry
Inspired by popular industry demands, the 853D Series Multi-Station is the complete 3-in-1 work station for your projects. The 853D 2A USB multi-station empowers you to enjoy a seamless workflow. You can solder, test, and rework in a streamlined process.

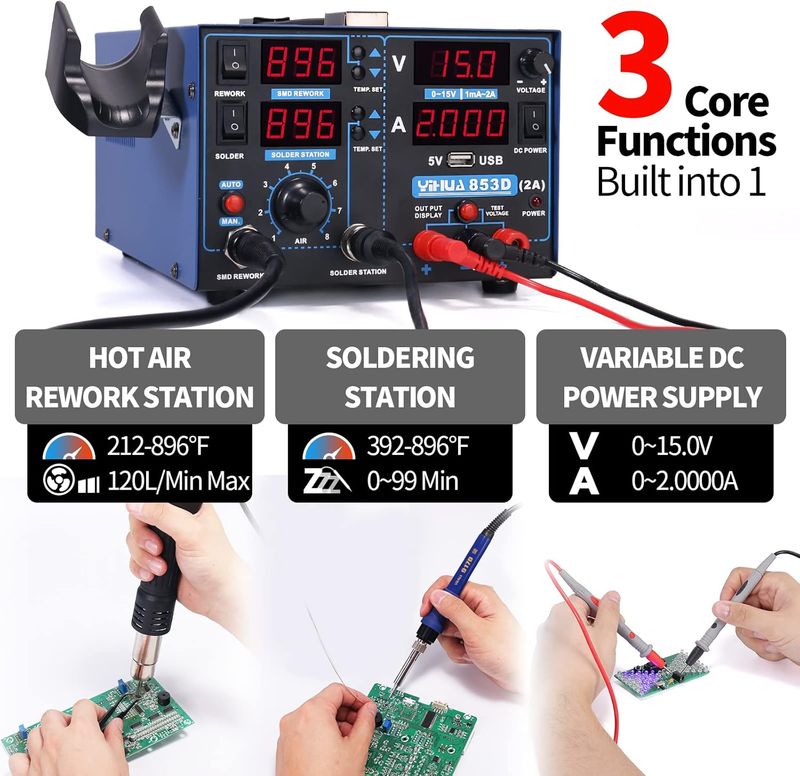

1 = 3
Packed full of professional-grade performance and functions to help get your job done. The multi-station integrates a soldering iron, a hot air gun, a voltmeter, and a power supply into a single compact package. You can conduct a complete soldering/rework procedure on your work device with just one station. Why not save a sizable amount of space and time by using this professional multi-station?

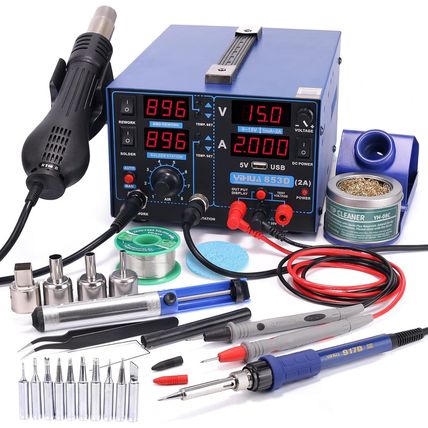

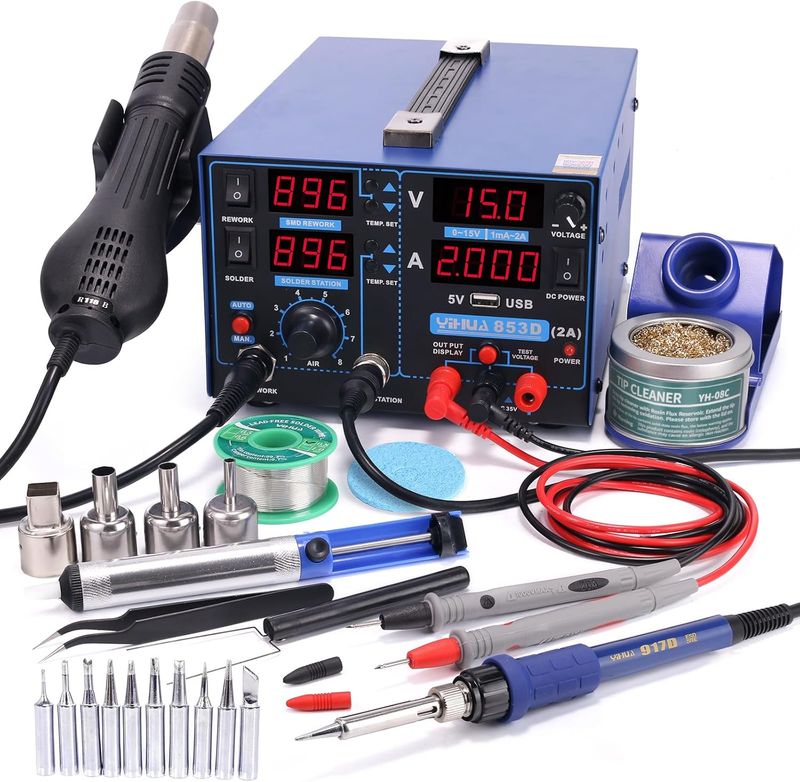

What you're getting
Multi-Station?
Why call it a station, you ask? Unlike conventional plug-n-play soldering iron that connects directly to electricity, our station puts the electricity through a sophisticated transformer and controller IC that intelligently puts out the perfect amount of power to your soldering iron and hot air gun. We integrated these technologies to ensure your safety and allow rapid heating and lightning-fast temperature compensation.

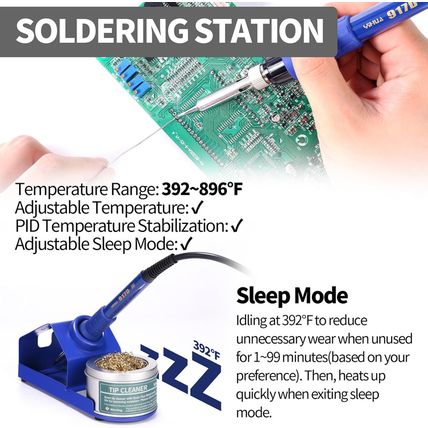

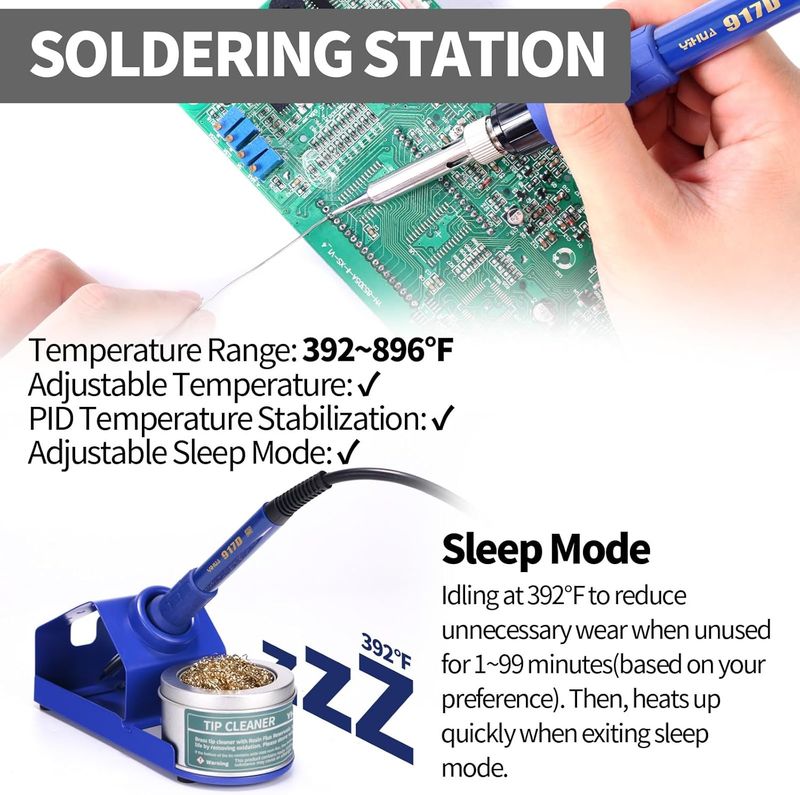

Soldering Station
The soldering section pushes 60 watts of (maximum) power to the iron tip, providing a temperature range of 392℉～896℉. The new and improved heating element enables rapid heating and lightning-fast temperature compensation for your operation. You can even solder a broad range of components with this iron.

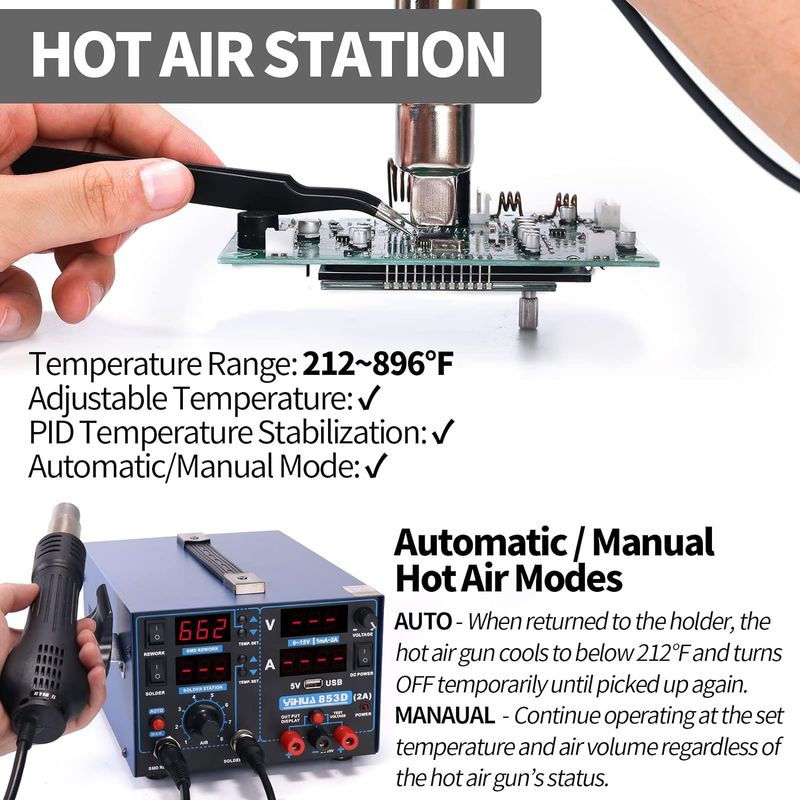

Rework Station
We understand how important an excellent hot air gun means for your work. Hence, we’ve built a hot air gun with a premium quality heating element and a powerful motor. With a maximum airflow volume of 120L/min and a temperature range of 212℉～896℉, you can easily remove SOIC, CHIP, QFP, PLCC, BGA, and SMD components with this hot air gun.

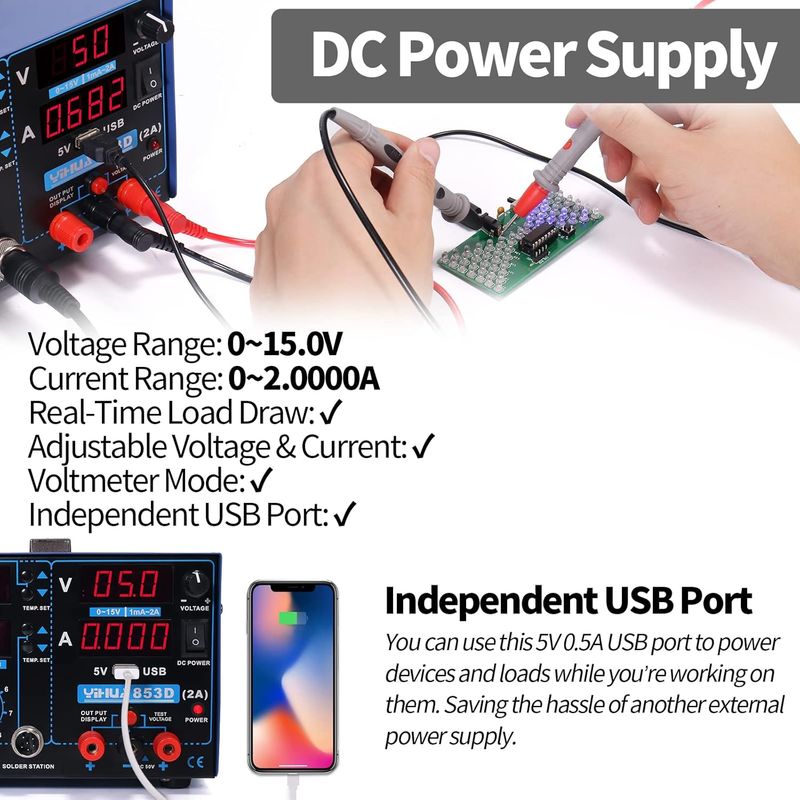

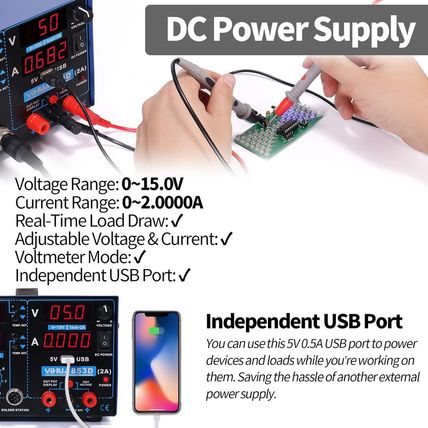

DC Power Supply
The DC Power supply comes with output mode and voltmeter mode. In output mode, the power supply can put out adjustable DC power 0-2.000A / 0-15.0V DC, and show the load’s power pull in real-time. In the testing mode, the voltmeter can test DC power from 0-35V DC.
User-Centric Features
Multi-Function
Solder or desolder, it wouldn’t matter if you’re trying to put a component down or you’re trying to lift one away. Our multi-station is the real “do-it-all”. If you’re looking to get three major functions at the cost of one, this will be the perfect choice to get your hobby, soldering skills, and business on track.
Assistive Functions
We built the multi-station with a series of user-centric functions to help you stay safe, work efficiently, and conserve energy. These functions include PID Temperature Control Technology, Sleep Mode, ℃/℉ Temperature Display, Temperature Calibration, and more!
High Performance
The station holds a power reserve of 800 watts of pure electrical energy. Thanks to the new and improved internal design upgrade, each handpiece can utilize those power to their maximum potential. The hot air gun and the soldering iron can get up to operating temperature quickly.
Specifications
| Model | 853D USB 2A |
| Voltage | 110V~127V AC 60Hz |
| Rated Power | 800w |
| Dimensions | L9.96 inch x W7.32 inch x H4.88 inch ±0.2 inch |
| Weight | 8.7 lbs |
| Operating Ambient Temperature | 32~104 °F |
| Storage Temperature | -4~176 °F |
| Storage Humidity | 35%~45% |
| Hot Air Gun | |
| Motor | Brushless Motor (Smoother Airflow) |
| Air Volume | ≤120L / Min |
| Temperature Range | 212~896 °F |
| Display | LED Screen |
| Soldering Iron | |
| Temperature Range | 392~896 °F |
| Tip to Ground Resistance | <2 Ohms |
Power Supply (Testing Station)
| Voltage Output | DC 0~15.0V ±10% |
| Current Output | 0~2.000A ±10% |
| Short-Circuit Protection | Yes |

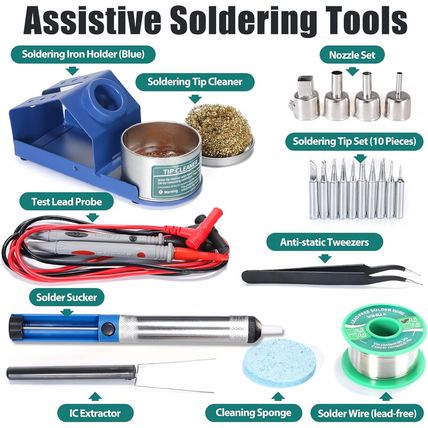

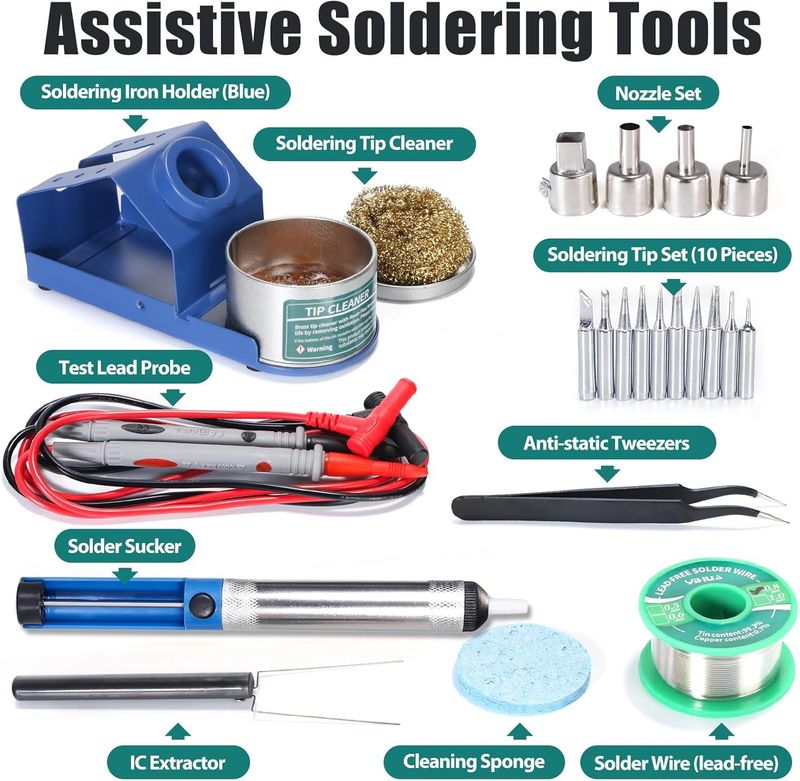

Advanced tool pack included
- 4 x Hot Air Nozzles
- 10 x Assorted Iron Tips
- 1 x IC Extractor
- 1 x Desoldering Pump (golden)
- 1 x ESD-Safe Tweezers
- 1 x Roll of Lead-free solder (0.8mm 35g)
- 1 x Soldering Iron Holder (with wool ball)
Direct from the manufacturer
By choosing YIHUA products, you reap the benefits of quality products derived from our 20-years of experience in designing and manufacturing soldering, hot air rework, DC power supply, and desoldering equipment.
Compliance
LEAD-FREE

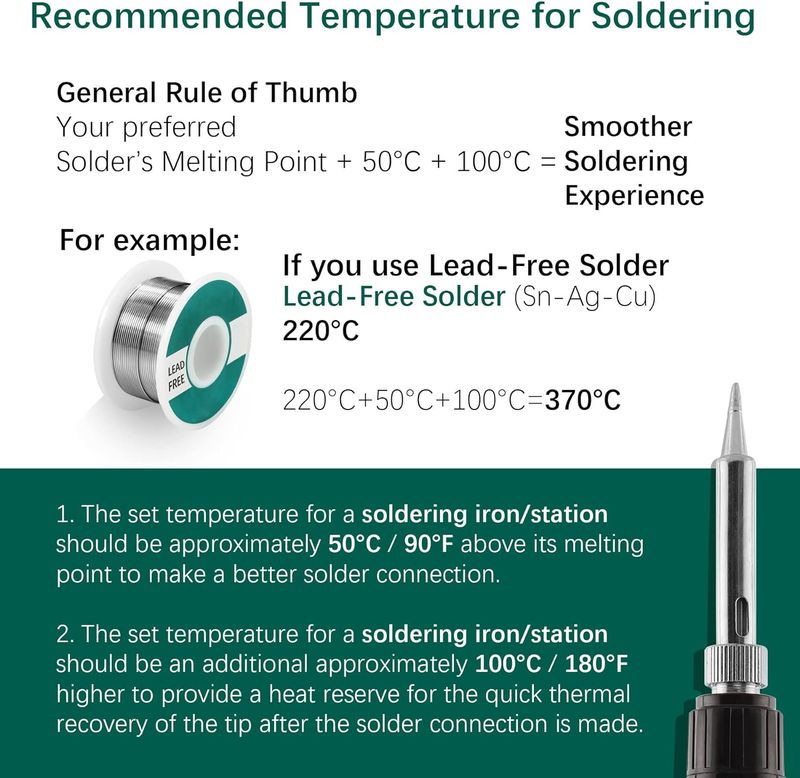

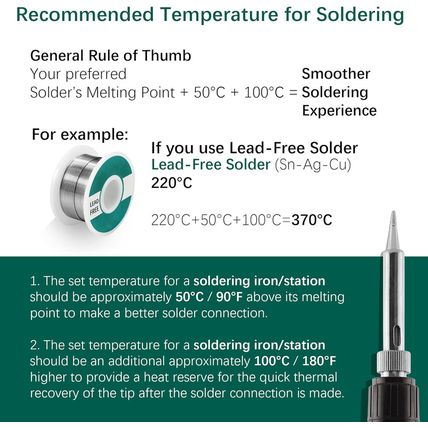

The soldering iron station is capable of holding a temperature setting of (896°F/ 480°C) steadily, you can work with different types of solder without any concerns.
ESD SAFE
We help you protect your project with our ESD Safe design. This feature prevents the build-up of satic discharges to protect your delicate circuit board components.
NOTE:
Testing Station
The testing section consists of two key elements, which are the testing mode meters and the power supply. (These functions are integrated, use ONLY either at once)
USB Port
A stand-alone 5V 0.5A USB port that can power most smartphones. (do not use the USB port for devices with large capacities)
Power Supply
The respective receptacles can act as a power supply or show readings when switched to power supply's output mode. In testing mode, the power supply runs on constant C.C (Constant Current) mode to protect your delicate work devices. You can test devices of maximum voltage of up to 35V. (do not use the voltmeter for devices that runs on AC, or has a voltage value greater than 35V)
Soldering Iron
The advanced soldering iron is equipped with a gravitational motion sensor, and the internal component consists of a metal ball to detect movements. A wobbling noise may occur when the iron is picked up as a result of motion sensing. The wobbling noise is not a sign of defective product / poor build quality.
