VEVOR Pure Sine Wave Inverter 3500 Watt Power Inverter, DC 12V to AC 120V Car In

Product specification

Model

GYS-3500W

Continuous Output Power

3500W

Peak/Surge Power

7000W

DC Input Voltage

12V DC(9.5-15.5V)

AC Output Voltage

120V AC ± 5%

Output Waveform

Pure Sine Wave

Features

LCD Display

Outlet Type

4 x US Outlets

No Load Current

< 0. 8 A

USB Output

QC 3.0 18W

THD

≤ 3%

Output Frequency

60 Hz

Low-voltage Shutdown

9.5 ± 0.5V

Low-voltage Alarm

10.5 ± 0.5V

Over-voltage Shutdown

15.5 ± 0.5V

Fuse

50A

Over-temperature Protection

176 ℉ / 80 ℃

Over-load protection

Alarm at 125% overload, stop working after 20s

Efficiency

≥ 88%

Cooling Mode

Intelligent Fan Cooling

Built-in Cooling Fan

Starts when the internal temperature is 113 ℉/ 45 ℃

Fan Operating Noise

20-40 dB

Remote Controller Cable Length

9.8 ft / 3 m

Remote Controller Dimensions(L x W x H)

3.74 x 2.76 x 0.98 in / 9.5 x 7 x 2.5 cm

Remote Controller Connection Type

6P6C

Battery Cables Specifications

35 mm² x 50 cm / 1.64 ft

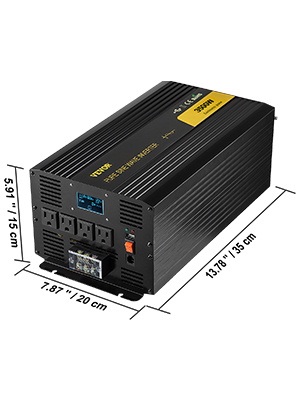

Product Dimensions(L x W x H)

13.78 x 7.87 x 5.91 in / 35 x 20 x 15 mm

Net Weight

15 lbs / 6.8 kg

Description

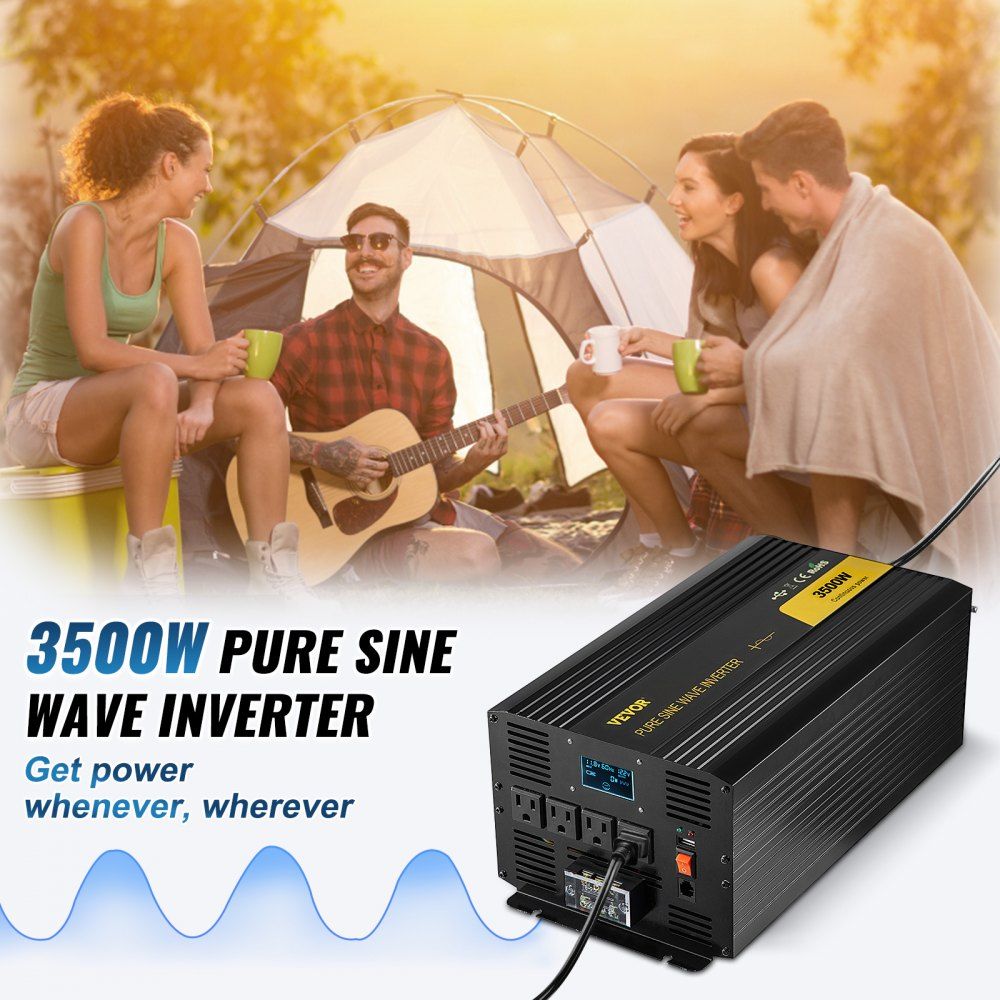

3500W Pure Sine Wave Power Inverter

12V to 120V & Aluminum Alloy Shell & Easy Remote Control

Are you ready to confidently power up your electronics? This pure sine wave inverter is highly recommended for sensitive electronic equipment that requires cleaner AC power to operate effectively. Clear LCD display, intelligent cooling fan, and multiple protections provide reliable power conversion in a compact size and high efficiency. It allows you to power up multiple devices such as laptops, fans, fridges, microwave ovens, notebook computers, switching power supplies, coffeemakers, etc. Let's power it up together!

3500W Pure Sine Wave Power Inverter

Professional LCD & LED Indicators

Powerful Remote Control

All-Around Security Protection

Power Up Your Appliances

VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.

Why Choose VEVOR?

Stable Pure Sine Wave

Our power inverter dc outputs continuous stable pure sine wave by wave phase-detection, making it more reliable for providing clean power and low interference to your devices while also providing a stronger load capacity.

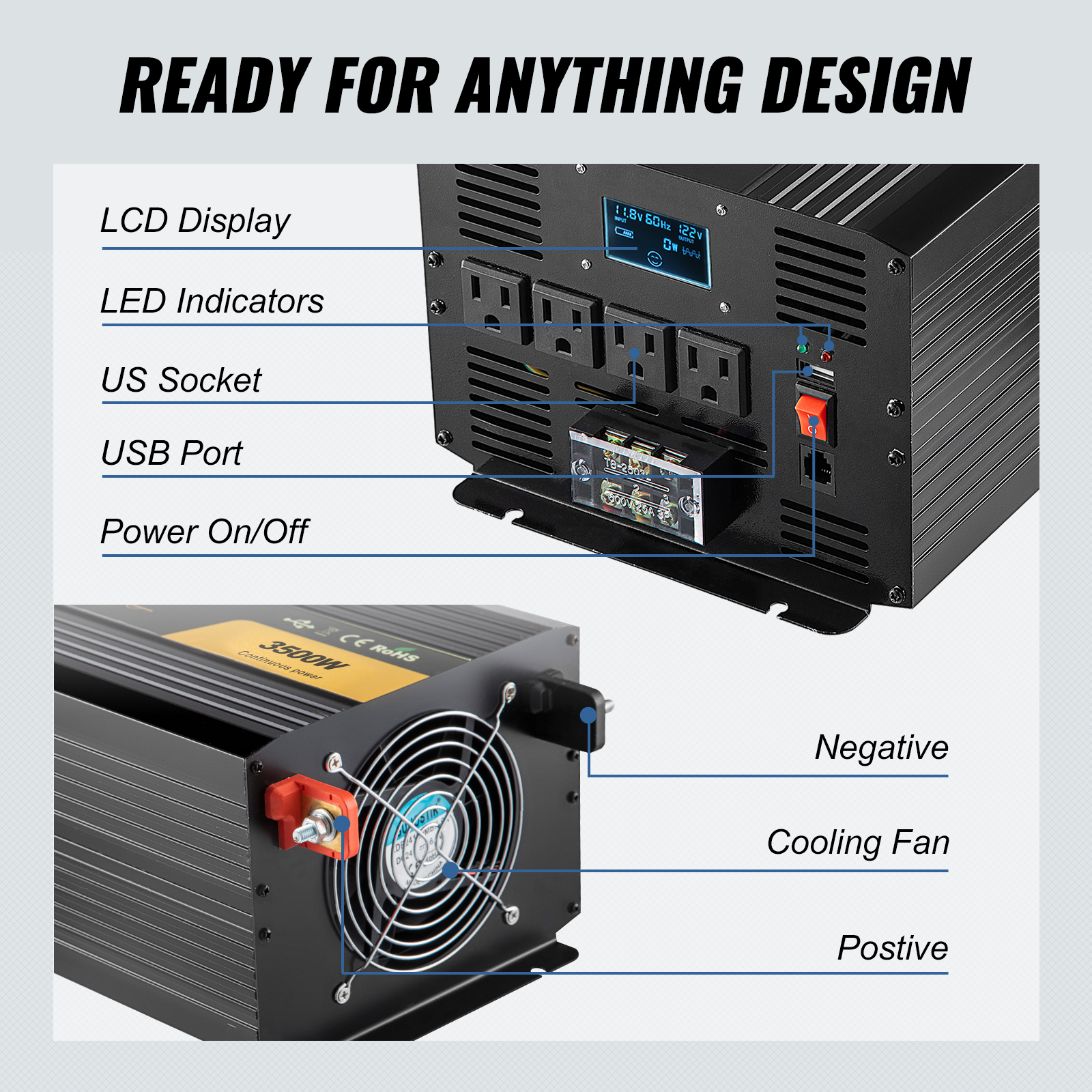

Ready for Anything Design

The inverter is meticulously crafted with a clear structure, facilitating you to use it effortlessly. When the internal temperature is up to 113℉/45℃, the cooling fan will rotate to reduce heat. The aluminum alloy shell has excellent oxidation and deformation resistance.

Certification & Security First

Power inverter pure sine wave has CE, FCC, RoHS, and PSE certifications for higher security and reliability. Six main protection measures keep you and your device secure and help electrical appliances operate stably.

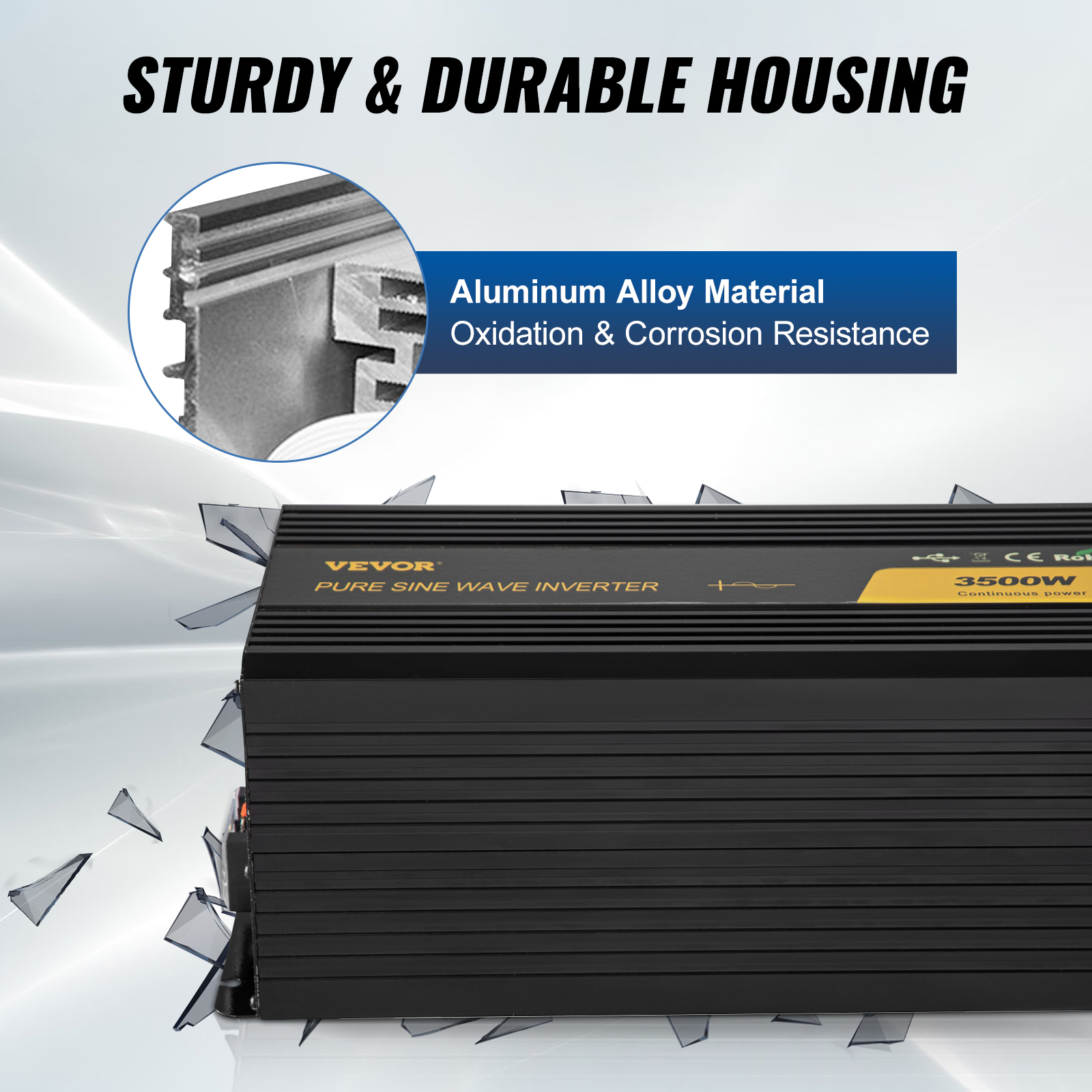

Sturdy Aluminum Alloy Shell

The dc to ac inverter board shell is made of aluminum alloy material, which can resist oxidation, compression, vibration, and deformation. Multiple cooling grooves on the housing for easy heat dissipation.

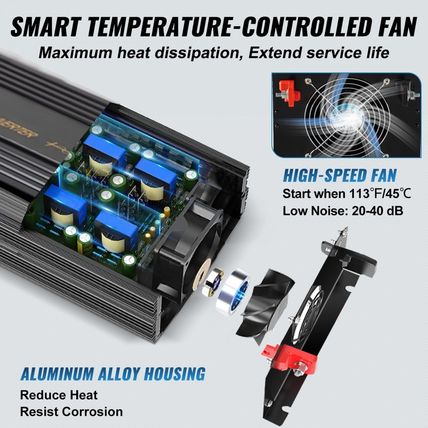

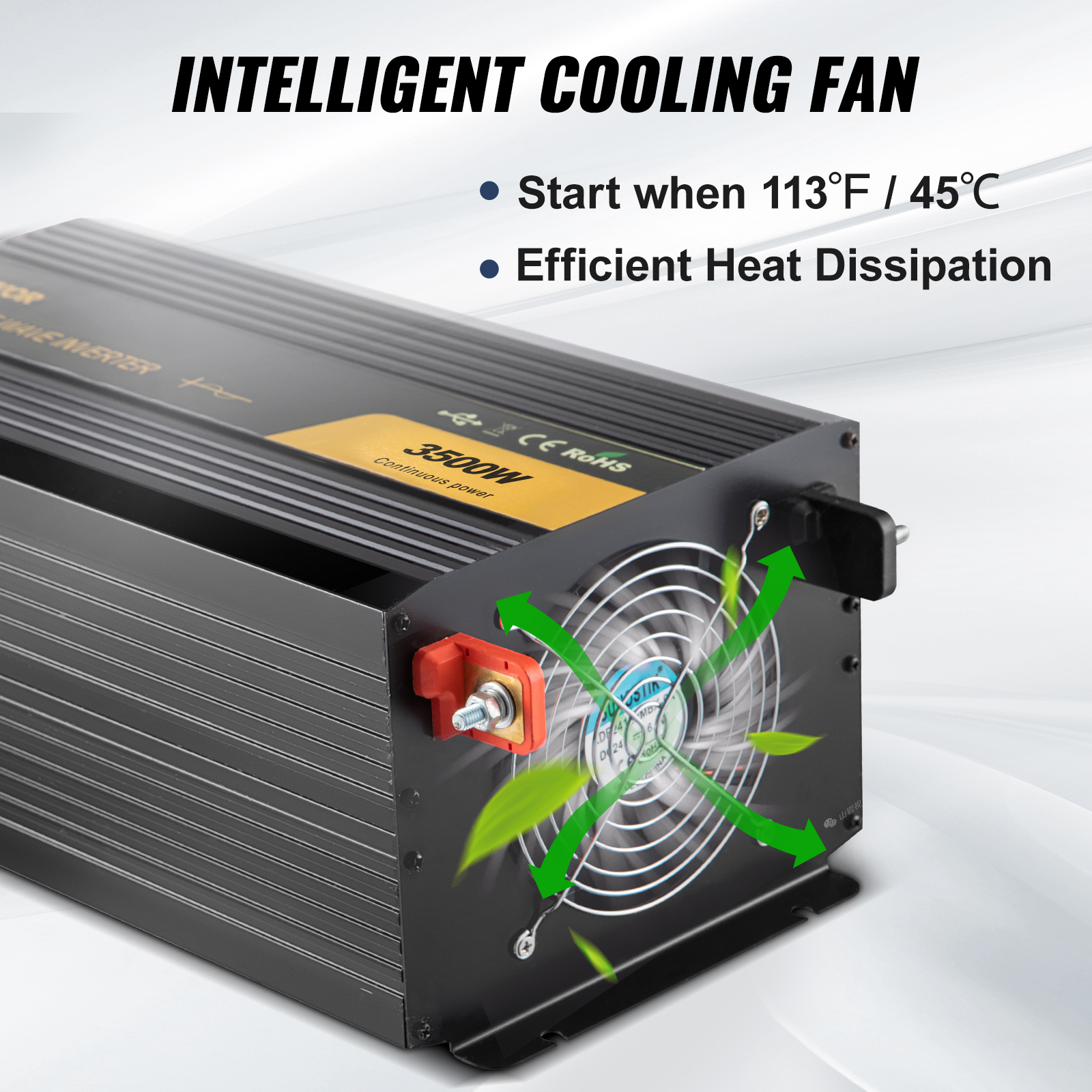

Intelligent Fan Cooling

When the internal temperature achieves 113℉/45℃, the built-in silent cooling fan will rotate, effectively reducing operating temperatures. In addition, the fan net avoids small animals from flying into the machine.

Universal Compatibility

The RV power inverter is suitable in scenarios like working, camping, emergencies, traveling, power failures, or household use. Ideal for your electric fan, television, camera, drones, electric saw, electric grill, etc.

Specifications

Model: GYS-3500W

Continuous Output Power: 3500W

Peak/Surge Power: 7000W

DC Input Voltage: 12V DC(9.5-15.5V)

AC Output Voltage: 120V AC ± 5%

Output Waveform: Pure Sine Wave

Features: LCD Display

Outlet Type: 4 x US Outlets

No Load Current: < 0. 8 A

USB Output: QC 3.0 18W

THD: ≤ 3%

Output Frequency: 60 Hz

Low-voltage Shutdown: 9.5 ± 0.5V

Low-voltage Alarm: 10.5 ± 0.5V

Over-voltage Shutdown: 15.5 ± 0.5V

Fuse: 50A

Over-temperature Protection: 176 ℉ / 80 ℃

Over-load protection: Alarm at 125% overload, stop working after 20s

Efficiency: ≥ 88%

Cooling Mode: Intelligent Fan Cooling

Built-in Cooling Fan: Starts when the internal temperature is 113 ℉/ 45 ℃

Fan Operating Noise: 20-40 dB

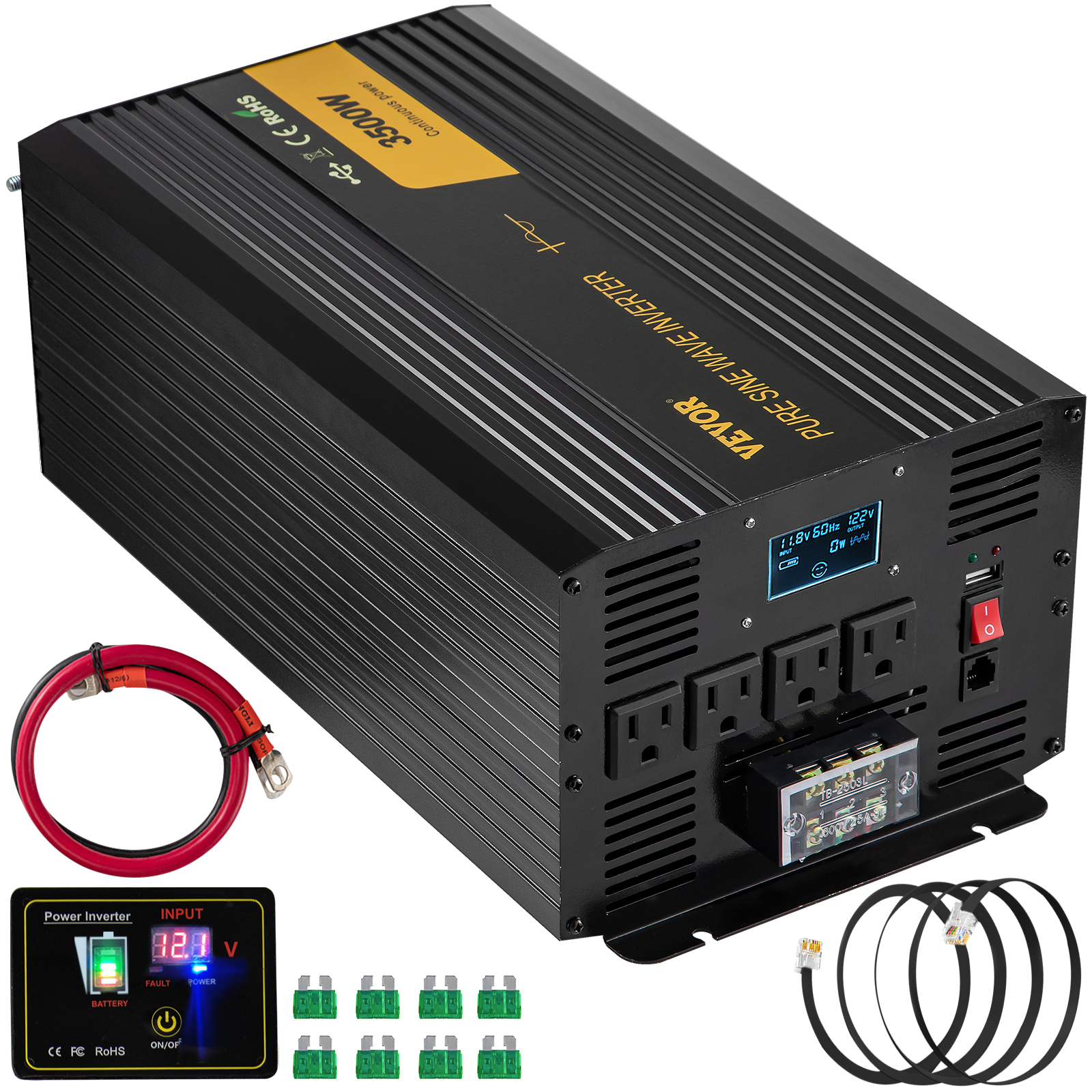

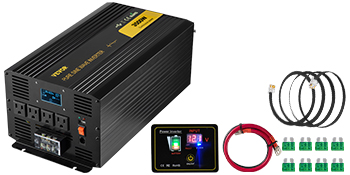

Package Content

1 x Pure Sine Wave Power Inverter

1 x Remote Control w/Cable

8 x 50A Fuses

2 x Battery Cables(1 Red & 1 Black)

1 x Convenient Paste

1 x User Manual

Ensure Uninterrupted Power — Pure Sine Wave Inverter

Convert DC into the alternating current AC with this inverter. Engineered with advanced technology, this wave inverter ensures stable power. Feel free to use this sine wave inverter for homes, RV trucks, boats, and solar power systems and ensure high quality power. Operates with a remote control system and features all-around security protection. So, use this pure sine wave inverter to get an optimal energy source to power up your devices.

High Performance for Extreme Positions

The VEVOR pure sine wave inverter features high performance with 3500 watts of output power. This means this inverter continually supplies 3500 output power watt electricity. Moreover, this wave inverter is equipped with four AC outlets. So, you can power multiple devices with it simultaneously.

It also features one USB port so you can charge small electronic devices such as smartphones or tablets. With an efficiency rating of at least 88%, this converter wastes little energy during the conversion process. It also has a “No Load Current” mechanism, which means that the inverter draws less than 0.8 amps of current when no devices are connected to it.

Advanced Mechanism for Ultimate Convenience

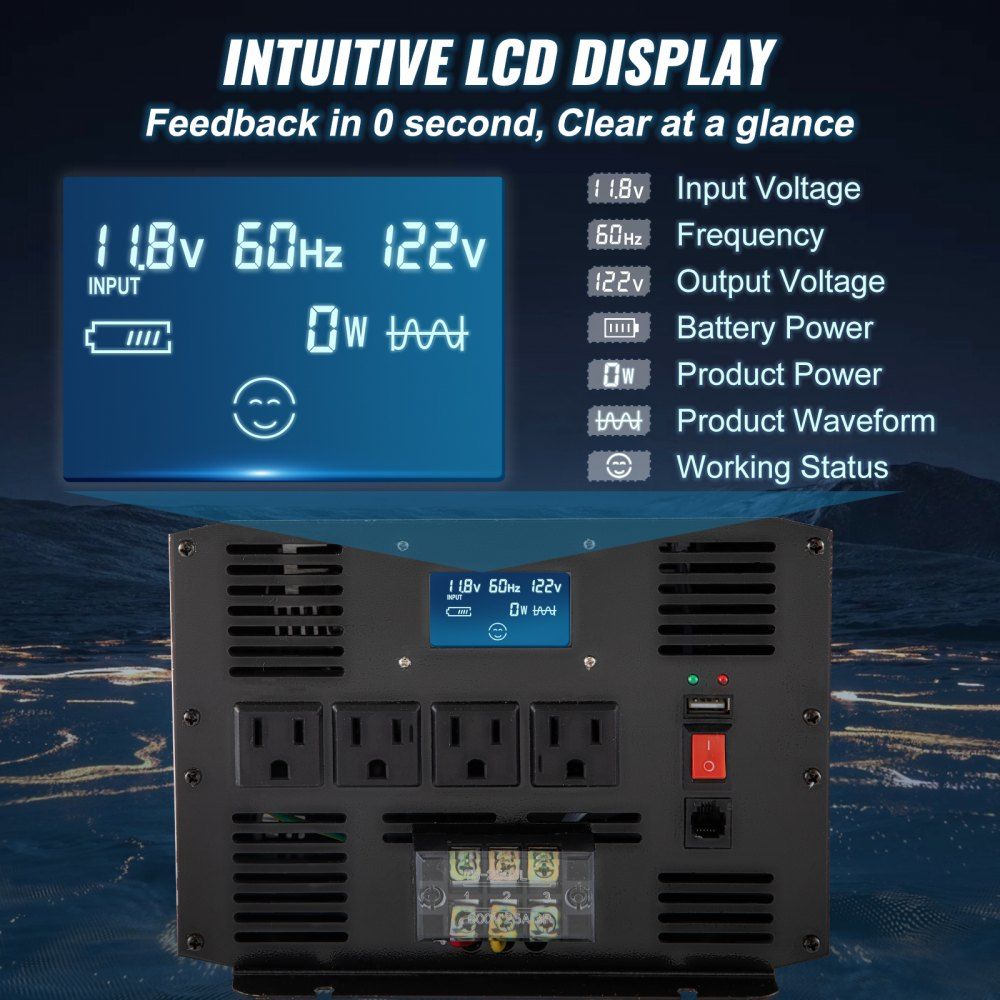

The VEVOR pure sine wave inverter features an LCD and LED lights. These displays show the working status of the inverter so you can see whether the inverter is operating correctly or not. The LCD display describes the input voltage, frequency, output voltage, battery power, product power, product waveform, and working status.

LED indicators are light-equipped on this inverter. They enable you to know the current working status of the inverter to inspect a problem in its working mechanism.

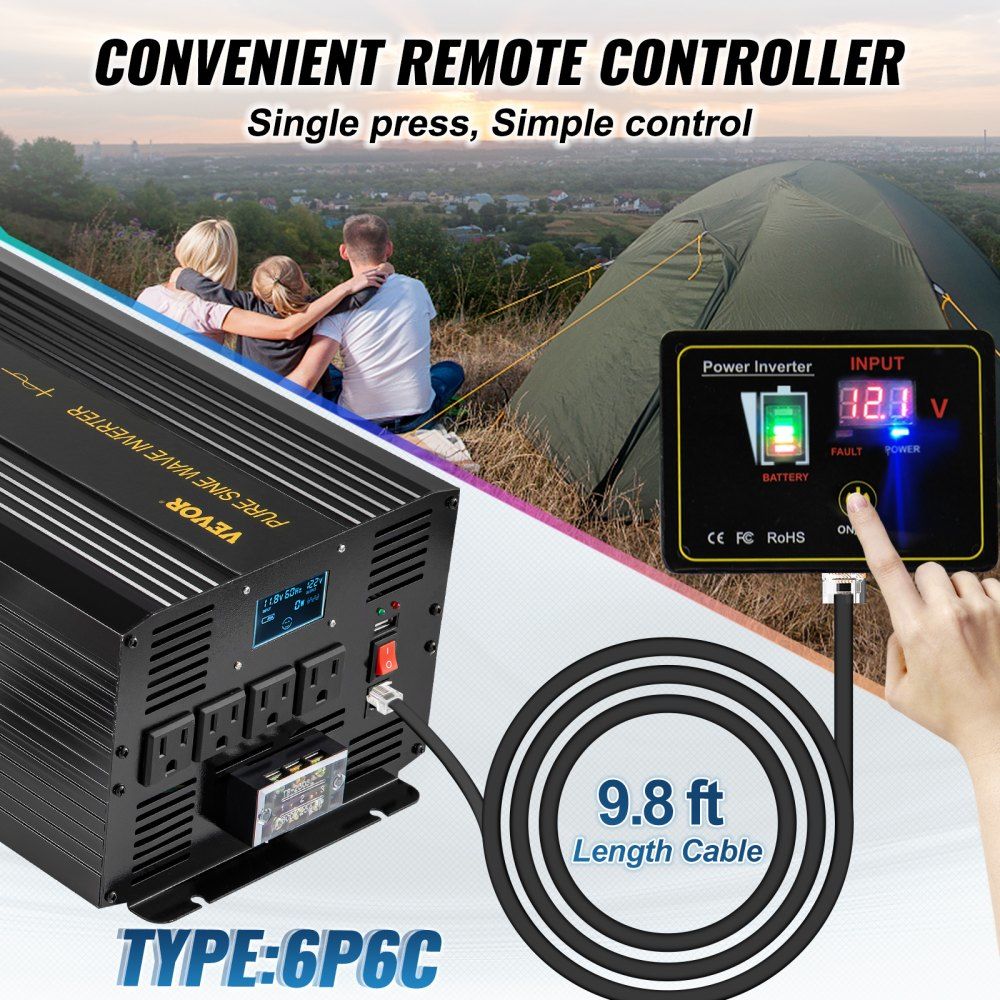

To enable you to operate the inverter at a considerable distance, the sine wave inverter has a remote controller. This remote controller is made of premium quality plastic and is suitable for long use. The remote is equipped with a 9.8-foot-long cable to use it from a distance. The remote controller uses a 6P6C connection type for optimal performance.

Premium Quality — Quiet Operation & Security Protection

To enable you to use the VEVOR sine wave inverter for a long time, its casing is made of aluminum alloy. This material withstands significant pressure without being damaged. It is also resistant to oxidation and deformation to prevent rust and corrosion. It also resists vibration, which is vital to maintaining the integrity of the inverter’s internal electronics.

Due to its advanced mechanism, this inverter ensures a noiseless operation for your ultimate comfort and pleasant experience. Moreover, it features multiple cooling grooves and an intelligent fan. These grooves circulate the air to keep the inverter cool during operation. The fan automatically starts rotating when the inverter’s internal temperature reaches 113℉/45℃. This technology keeps the wave inverter properly working even in high temperatures without damage.

Simple & Effortless Installation

To ensure ultimate convenience for you, the VEVOR pure sine wave inverter is super simple to install. Its package includes all required accessories for the installation. The manual guide helps you easily install this inverter by yourself without calling a professional. So, if you’re looking for a simple-to-install inverter with efficient performance, the VEVOR 3500-watt power inverter will be a great choice for you.

High Compatibility & Versatility

The VEVOR pure sine wave inverter is perfect for different scenarios. For example, it will be a great backup power source for different working settings. It is also a reliable option for camping, traveling, emergencies, power failures, and household uses. Feel free to use this 3500-watt wave inverter to power up different electric devices, like electric fans, RV trucks, televisions, electric saws, cameras, drones, and electric grills.

See Less

Remote Controller Cable Length: 9.8 ft / 3 m

Remote Controller Dimensions(L x W x H): 3.74 x 2.76 x 0.98 in / 9.5 x 7 x 2.5 cm

Remote Controller Connection Type: 6P6C

Battery Cables Specifications: 35 mm² x 50 cm / 1.64 ft

Product Dimensions(L x W x H): 13.78 x 7.87 x 5.91 in / 35 x 20 x 15 mm

Net Weight: 15 lbs / 6.8 kg
