Mokerlink 4 Port 2.5G Ethernet Switch with 2X10G SFP+ Slot, 4X2.5G Base-T Ports
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230747635
- Quantity : 1 item
- Views : 11
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:17:01 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description
Mokerlink 4 Port 2.5G Ethernet Switch with 2X10G SFP+ Slot, 4X2.5G Base-T Ports Compatible with 100/1000Mbps, Mini Size, Metal Unmanaged Fanless Network Switch
Description
| Item model number | Mini 4*2.5G,2*10G SFP |
| Data Transfer Rate | 2.5E+3 Megabits Per Second |
| Number of Ports | 4 |
| Brand | MokerLink |
| Country of Origin | China |
| Item Weight | 13.7 ounces |
| Platform | Not Machine Specific |
| Case Material | Metal |
| Interface Type | SFP |
| Model | Mini 4*2.5G,2*10G SFP |
| Manufacturer | MokerLink |
| Package Dimensions | 6.97 x 4.84 x 2.52 inches |
| Included Components | 2.5G Switch |
- 2.5G Ports: The network switch has 4x2.5Gigabit Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 2x10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, excellent data forwarding performance
- Easy to Use: Unmanaged Plug and Play, just plug in the power cord, connect the ethernet cable directly to the device, auto MDI/MDIX, auto-negotiation rate, without any configuration.
- Metal Mini Size: With durable metal casing, Super mini size and compact design saves installation space. Fanless lowers energy consumption, quiet no noise and stable operation
- Easy to Maintain: Power and port led indicator light, clearly display the running status and port rate status, installation and maintenance are very simple
- Widely Used: desktop/wall-mounting design, well-suited for various environments, such as home entrainment and office, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
Product Description

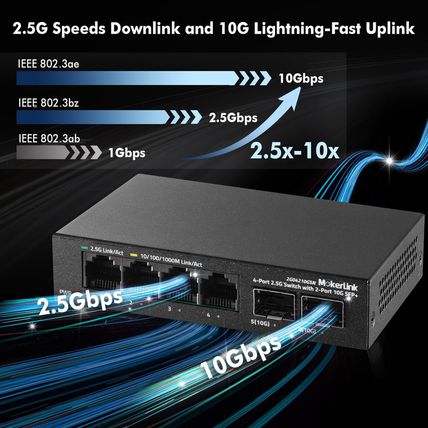

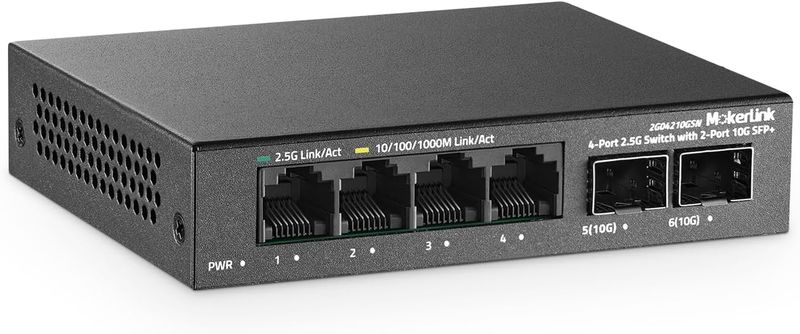

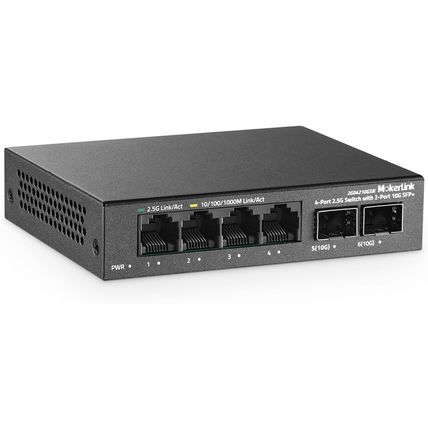

The 2G04210GSN is an unmanaged switch with 4x2.5GbE and 2x10GbE SFP+ ports. 4 ethernet ports provide either 100M, 1000M and 2.5G connectivity, as well as 2 SFP+ Fiber port with 1G or 10G connectivity. Each port automatically detects which speed is needed.

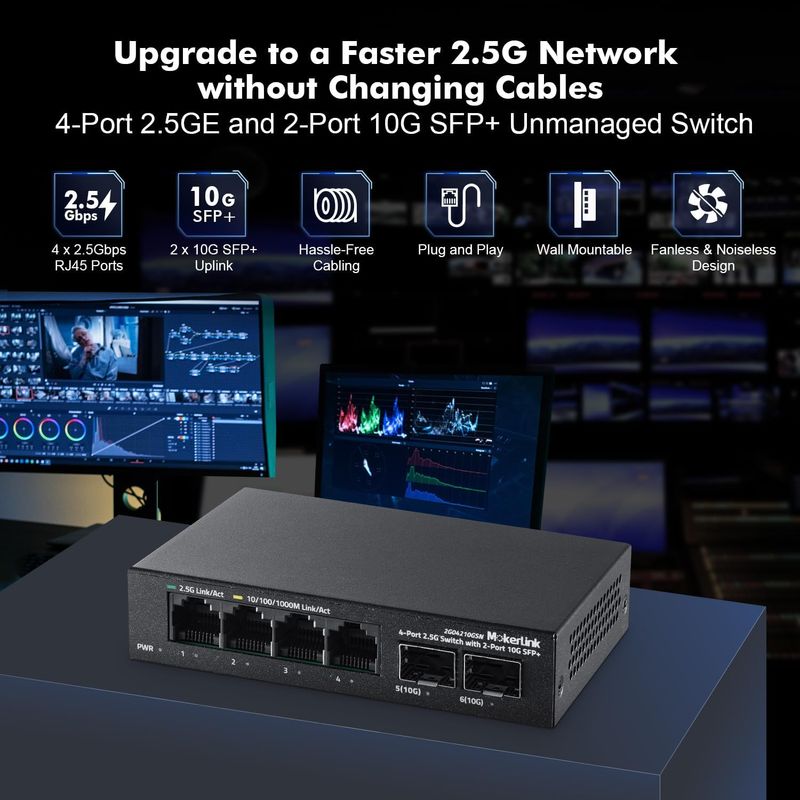

4x 2.5G Ports for WiFi 7/6 or NAS
4× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6 APs and NAS server. No need to upgrade cabling infrastructure Doubles network bandwidth by leveraging existing CAT-5E cabling infrastructure.
2x 10G Uplink Slots for Servers or Core Switch
2× 10 Gbps open SFP+ slots enable high-bandwidth, long-distance connectivity and non-blocking switching capacity. Adaptive 1G, 10G sfp modules that can connect to core servers and switches.
Energy efficient
With fanless and metal housing design eliminates a common point of failure, It can be placed virtually anywhere and operate silently. It supports the IEEE 802.3az Energy-Efficient Ethernet standard. Switches automatically adjust power consumption according to the link status and cable length

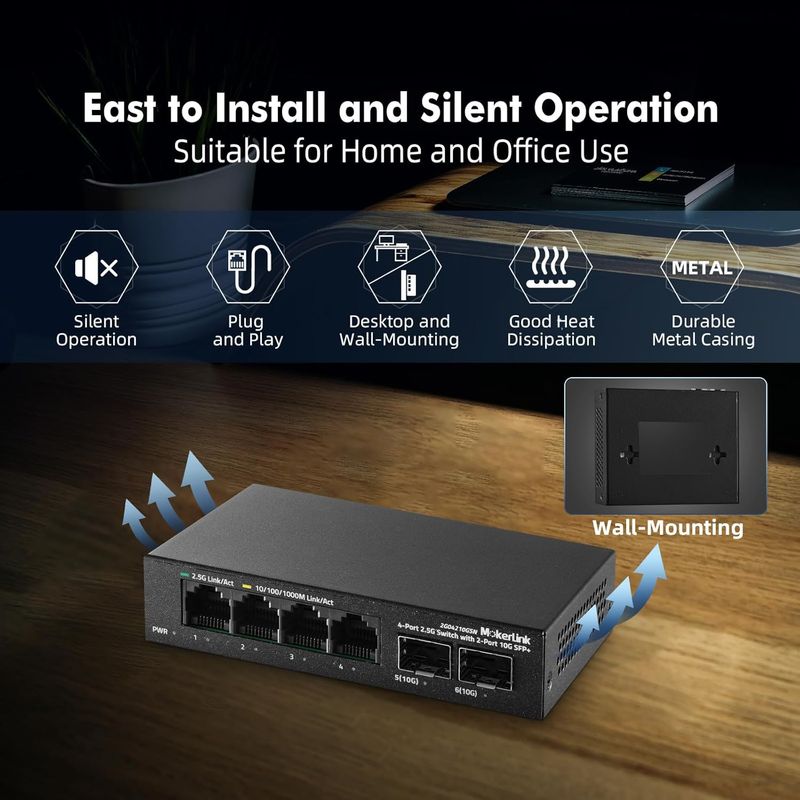

Mounting flexibility
Flexible deployment options for desktop or wall-mount in your office and home, meet the network environment requirement.
Power and Port Protection
With a dedicated and intelligent microchip, power backfeed and lighting protection, It can avoid damaging the ethernet ports and power port.
Plug-and-play
Automatic connectivity to your PCs or router. No need for an IT expert.
Technical Parameter
| Interface | 4* 2.5G RJ45 port + 2 * 10G SFP+ port |
| Port Standard | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) |
| Switching Capacity | 60Gbps |
| Packet Forwarding Rate | 44.64Mpps |
| Packet Buffer | 8Mbit |
| MAC Address Table | 4K |
| Surge Protection | Surge protection: common mode 4KV, differential mode 2KV (Class A) Electrostatic ESD: air 8KV, contact 6KV (Class A) |
| Environment | Operating Temperature: 0~40°C, Storage Temperature: -40 °C to 70 °C, Operation Humidity: 10%~90%，non condensing, Storage Humidity:5%~95%，non condensing |
| Power Supply | DC 12V 1A |
| Mainboard Power Consumption | 5.34W |
| Structure Information | Product Dimensions :113.5*90*25mm Packaging Dimensions : 175*120*63mm Product Net Weight: 0.25KG Product Gross Weight:0.38KG |
| Installation | desktop / Wall mount |
| Fan Quantity | 0 |
| Packing List | Switch 1pcs, ac adapter 1pcs, instruction manual 1pcs |

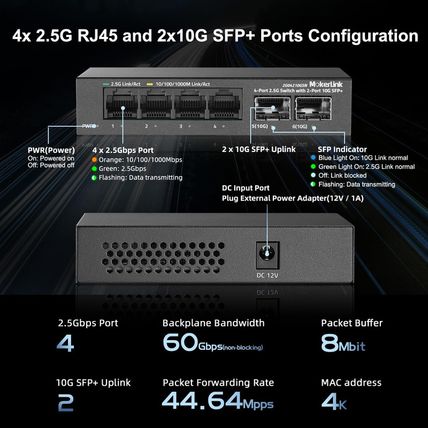

| Indicator Lights | PWR On: Powered on, Off: Powered off, 1-4 port Green Light On：2.5G Link normal, Yellow Light On：10/100/1000Mbps Link normal, Off: Link blocked, Flashing: Data transmitting, 5-6 SPF+ port Blue Light On：10G Link normal, Green Light, On：2.5G Link normal, Off: Link blocked, Flashing: Data transmitting |
