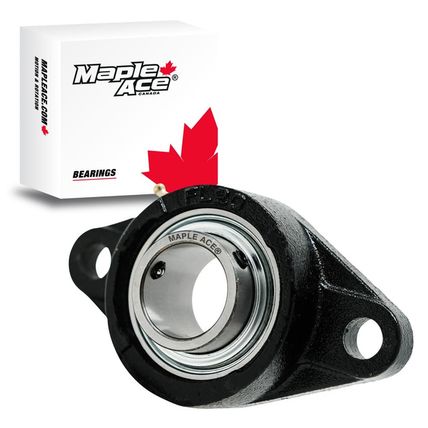

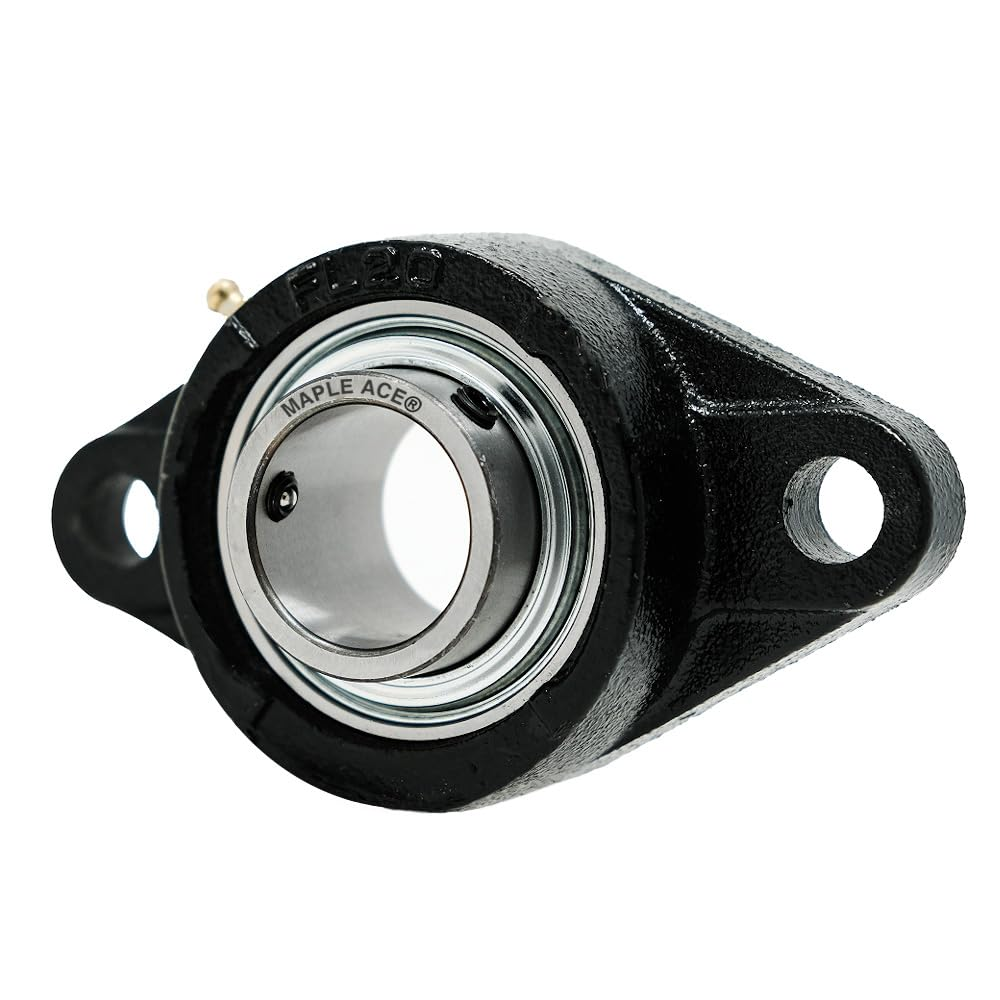

MAPLE ACE UCFL208-24 Flange Bearing 1/2" Bore, Oval 2-Bolt Self-Aligning, Solid

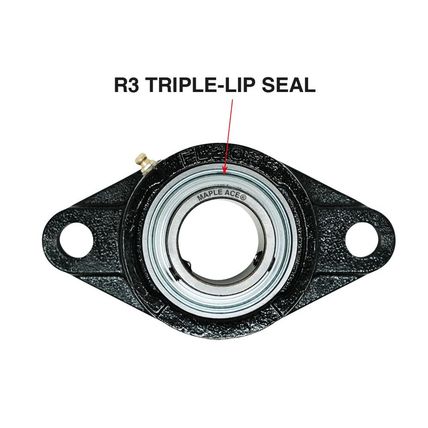

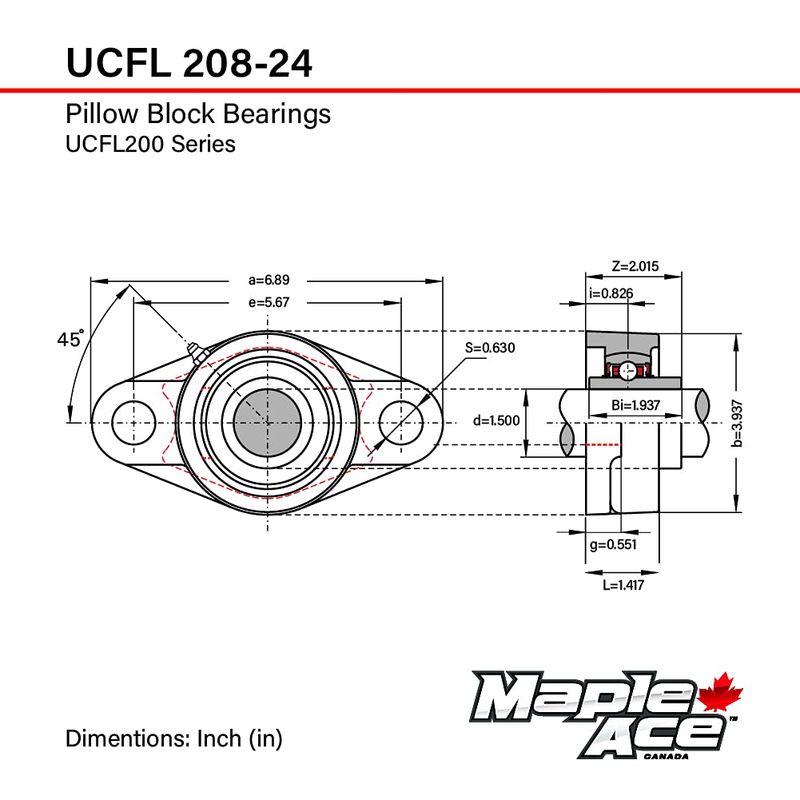

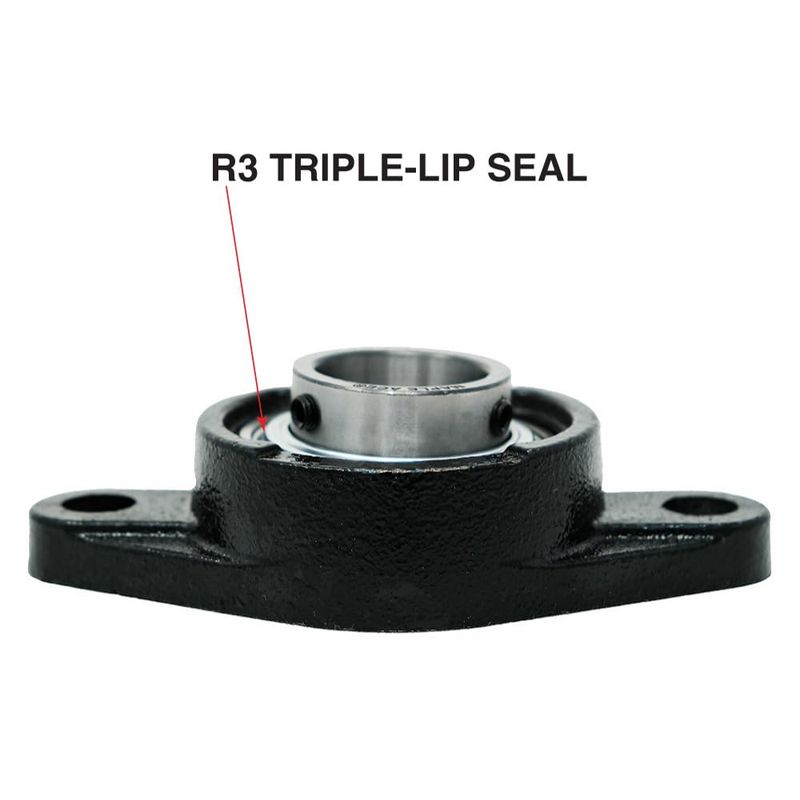

This UCFL OVAL FLANGED-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The INSERT BEARING has Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Has a Set Screw Lock on its surface for securing the shaft. The OVAL FLANGED-MOUNT BEARING can be mounted on levelled surfaces using the Two Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. - Specification: Item UCFL208-24R3, Series UCFL200, Bearing Number UC208-24R3, Housing Number FL208, Number of Bolts 2, Bolt Size (S) 1/2 in, Bearing Bore Diameter (d) Metric 38.1 mm, Bearing Bore Diameter (d) Inch 1-1/2 in, Bearing Width Inner Ring (Bi) Matric 49.2 mm, Bearing Width Inner Ring (Bi) Inch 1.937 in, Bolt Hole Center to Center (e) Matric 144 mm, Bolt Hole Center to Center (e) Inch 5.67 in, Flange width (a) Matric 175 mm, Flange width (a) Inch 6.89 in, Overall Height (Z) Matric 51.20 mm, Overall Height (Z) Inch 2.015 in, Dynamic Load Rating Cr 30700 N, Static Load Rating Cor 19000 N, Limiting Speed 4800 r/min, Clearance Normal, Bearing Sealing type R3 Triple-Lip Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 1.480 KG.
