Herbert 48 Phase 2 Single Spindle Automatic Parts Manual 1975 AH1175100 PDF
- Condition : Used
- Dispatch : Next Day
- Brand : BSA Herbert
- ID# : 206402616
- Quantity : 50 items
(still available: 50) - Views : 257
- Location : United Kingdom
- Seller : scorpioman (+4709)
- Barcode : None
- Start : Thu 06 Jan 2022 11:56:56 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
Seller's Description
Herbert 48 Phase 2 Single Spindle Automatic Parts Manual 1975 A.H.11/75/100 PDF
Sent To You By Email As A PDF Version
Book Size A4 And A3 Pullouts With About 100 Pages
Book Number A.H.11/75/100
Book Date 1975
Contents
Pullouts Scanned In A3 As Below Only
Gearbox Lubrication ( Metric Fittings )
Swing Stock Stop
Third Slide
General Lubrication
Cycle Time Gears
Spindle Speed Change Gears
Tool Kit
Guards And Trays
Guards And Tray
Bar Steady
Gearbox Lubrication
Turret
Coolant Supply
Cross Slides
Bar Feed ( Longstoke Knock Out )
Bar Feed ( Short Stroke Knock Out )
Bar Feed ( Slide )
Bar Feed ( Cams And Levers )
Headstock ( Feed Tube )

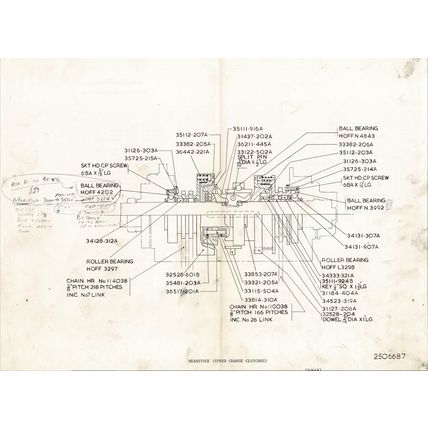

Headstock ( Collet Operating )
Headstock ( Speed Change Clutches )
Headstock ( Workspindle )
Headstock Lubrication
Wormdrive
Backshaft
Trip Levers ( Lever Shaft )
Trip Levers ( Bar Feed Plunger )
Trip Levers ( Change Speed Fork )
Trip Levers ( Workchute )
Trip Levers ( Bar Feed Levers )
Trip Levers ( Change Speed Levers )
Trip Levers ( Turret Lever )
Body
Main Drive ( Belt Drive Shaft )
Main Drive ( Motor Drive )
Gearbox ( Slow Speed Chain Tensioning )
Gearbox ( Fast Speed Chain Tensioning )
Gearbox ( Slow Speed Shaft )
Gearbox ( Reversing Shaft )
Gearbox ( Reduction Shaft )
Gearbox ( Fast Speed Shaft )
Gearbox ( Main Drive Shaft )
Gearbox
Cabinet Base
Condition. A Few Grubby Marks But Still a good scan
Sent By Email Straight To Your Inbox Within 24 Hours But Usually Much Quicker
Reference 000248
