Gofanco 1080P 1X4 HDMI Extender Splitter over Cat5E/6/7 Ethernet Cable - up to 1
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230747036
- Quantity : 1 item
- Views : 4
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:15:34 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description
Gofanco 1080P 1X4 HDMI Extender Splitter over Cat5E/6/7 Ethernet Cable - up to 165Ft (50M), HDMI Local Loopout, Poc, EDID, IR Extension, 5.1/7.1Ch Audio, Mountable, 1 in 4 Out (Hdext4P-Pro, V2.0)
Description
| Item model number | HDExt4P-Pro |
| Style | 1x4 1080p 165ft |

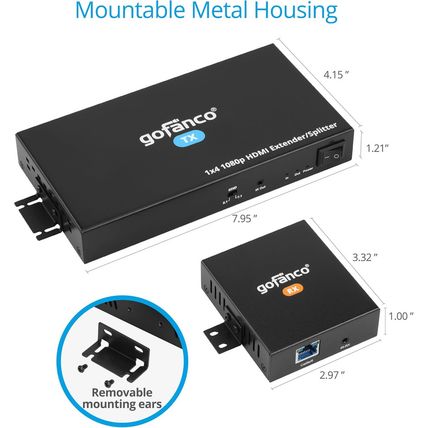

| Product Dimensions | 7.96 x 1.15 x 4.15 inches |
| Country of Origin | China |
| Item dimensions L x W x H | 7.96 x 1.15 x 4.15 inches |
| Compatible Devices | Desktop, DVD |
| Item Weight | 4.11 pounds |

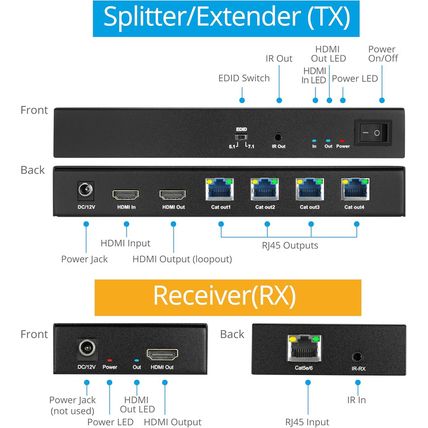

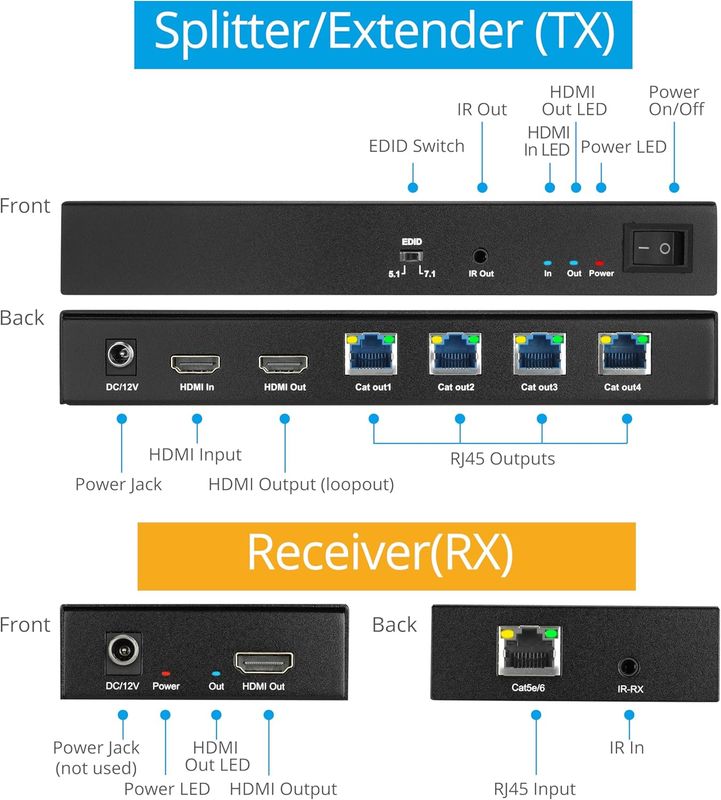

| Connector Type | HDMI, HDMI loopout, IR, RJ45 |
| Specific Uses For Product | TV |
| Manufacturer | gofanco |
| Is Discontinued By Manufacturer | No |
| Brand | gofanco |
| Size | 4-Port |

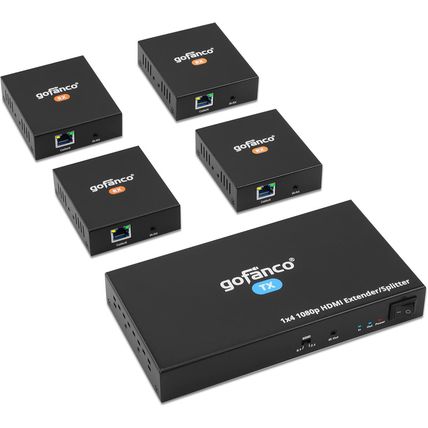

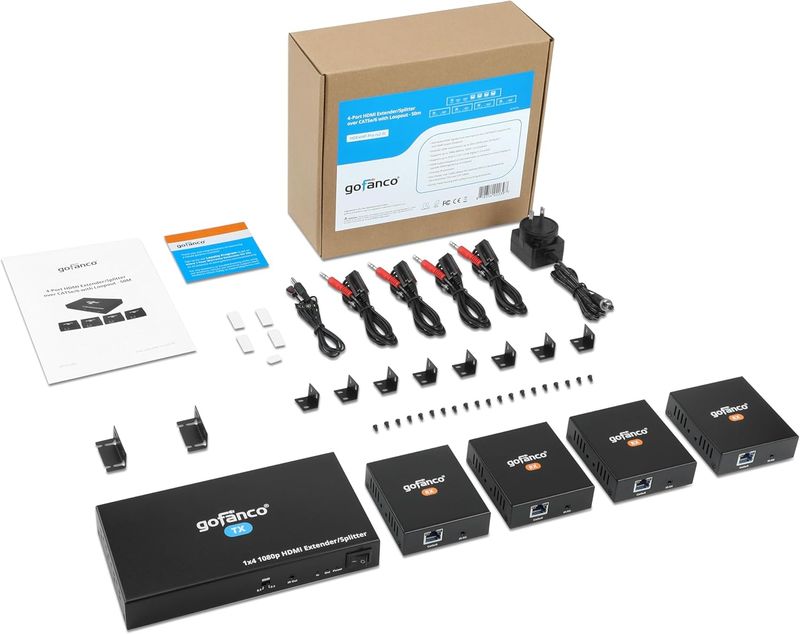

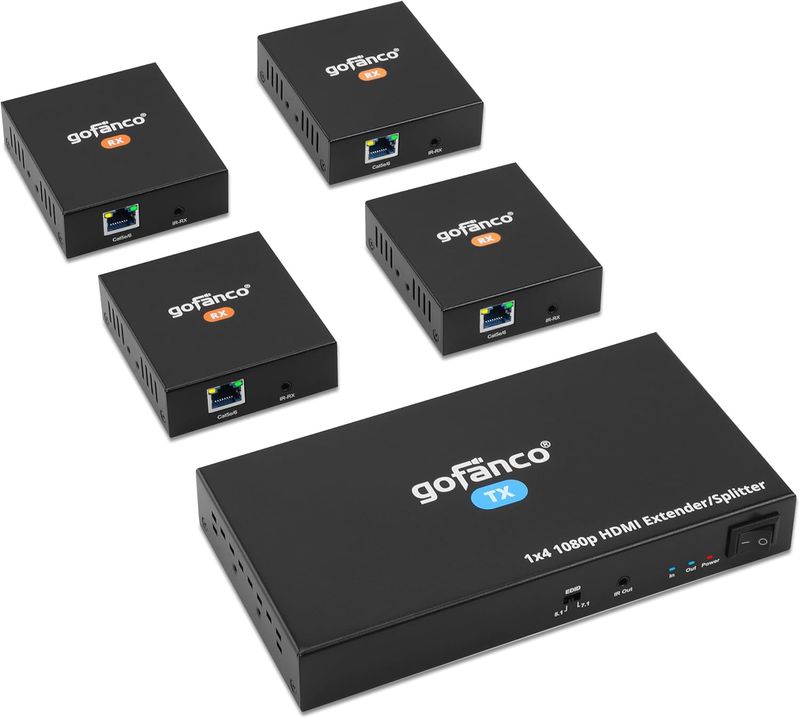

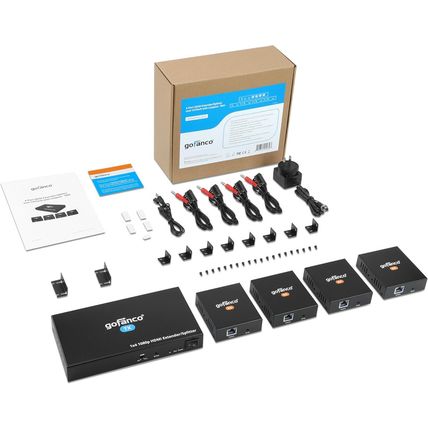

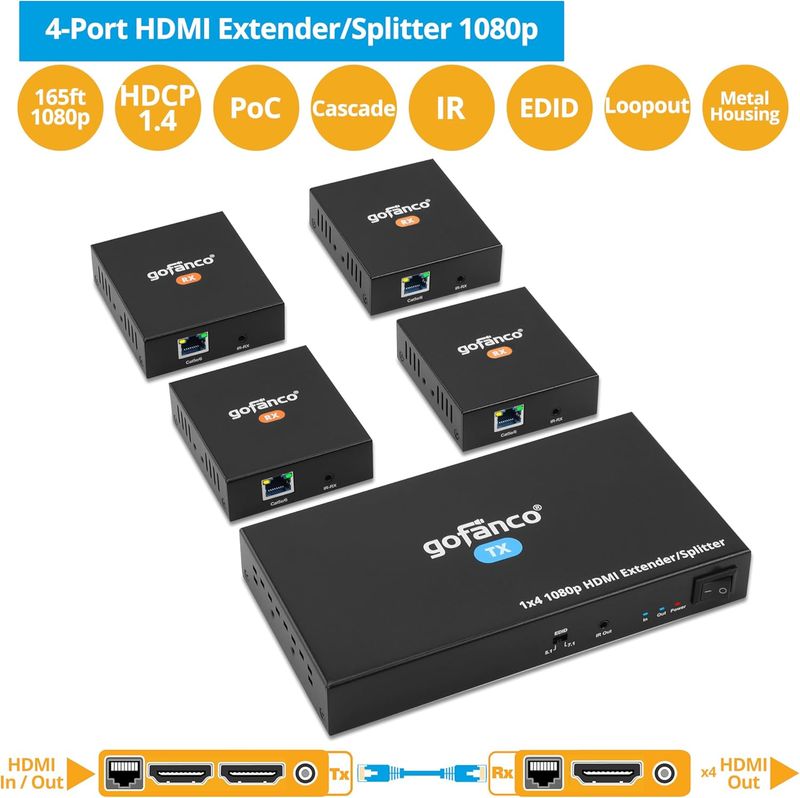

- COMPLETE KIT – Includes 1 Transmitter & 4 Receivers. Extend and split one HDMI source to four CAT5e/6/7 & one HDMI outputs simultaneously at near zero latency
- HDMI LOSSLESS TRANSMISSION – Extends HDMI audio/video signals to synchronous output video display(s), is as fluent as direct connection; Supports up to 50m (165ft) at 1080p@60Hz with CAT5e/6/7 and surround sound up to 7.1-channel digital audio. HDCP 1.4 compliant
- HDMI LOOP-OUT – Additional HDMI output on the Transmitter to connect to a local display for monitoring or cascade HDMI signals to 4 layers; Easy-to-follow EDID configurations
- POWER OVER CABLE (PoC) – Allows 1 TX power adapter to power all RX’s over CAT cables; Supports 1-way IR extension to control a source device from the TV side

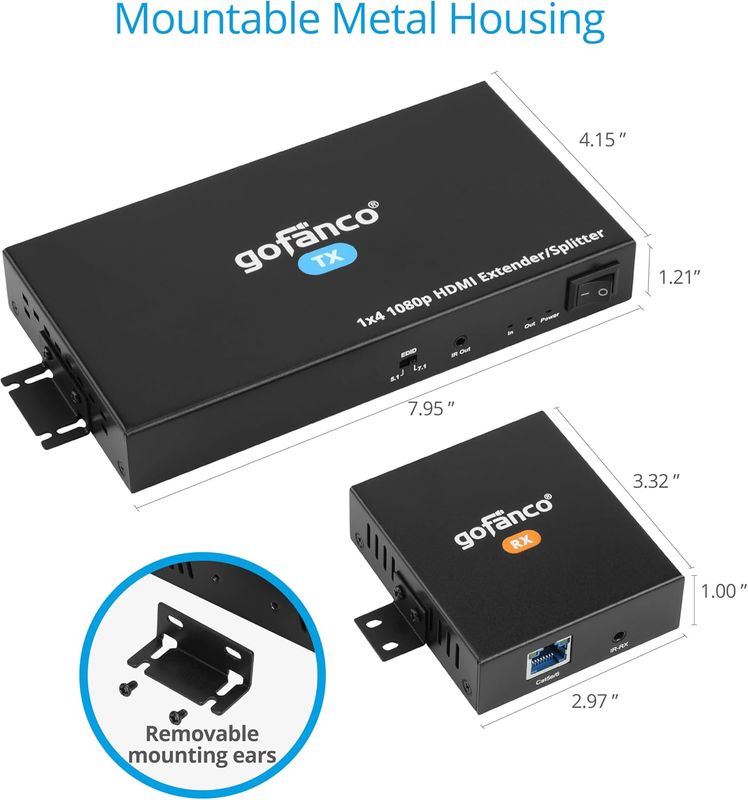

- SIMPLE INSTALLATION – No driver required; Surface-mountable metal housing. FCC, CE and RoHS compliant. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in the buy box and select "Ask a Question"
Product Description
HDMI Lossless Transmission - Extends HDMI audio/video signals to synchronous output video display(s), is as fluent as direct connection; Supports up to 50m (165ft) at 1080p@60Hz with CAT5e/6/7 and surround sound up to 7.1-channel digital audio. HDCP 1.4 compliant
Power Over Cable(PoC) - Allows 1 TX power adapter to power all RX’s over CAT cables; Supports 1-way IR extension to control a source device from the TV side

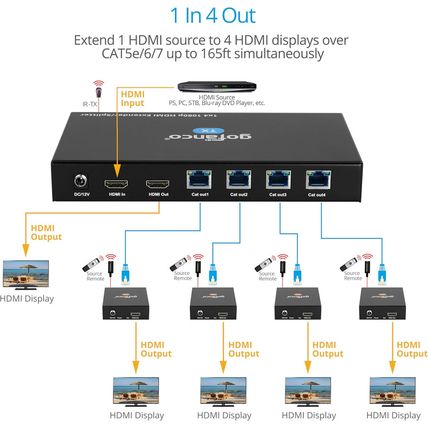

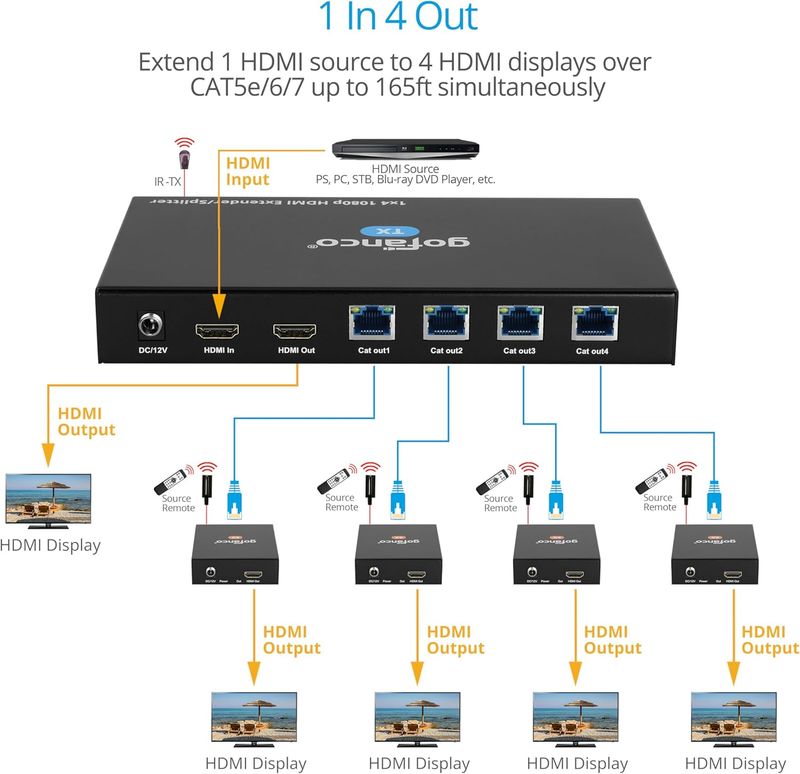

1 In 4 Out - Extend and split one HDMI source to four CAT5e/6/7 & one HDMI outputs simultaneously at near zero latency

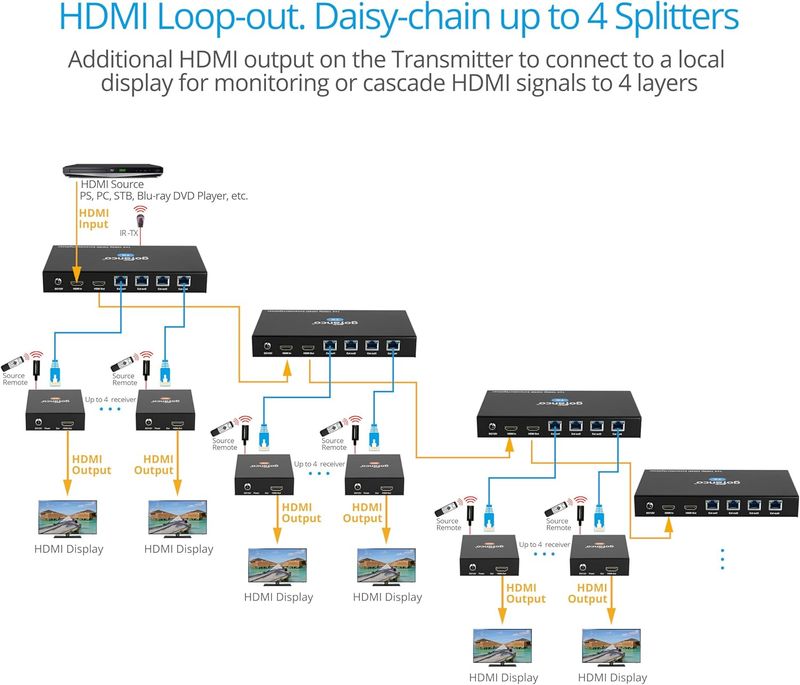

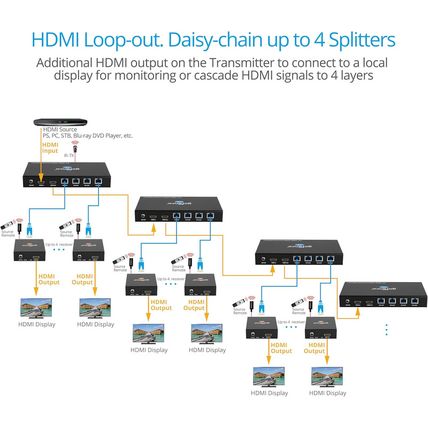

HDMI Loop-out / Daisy-chain up to 4 Layers - Additional HDMI output on the Transmitter to connect to a local display for monitoring or cascade HDMI signals to 4 layers
Specifications
- Extends up to 50m (165ft) at 1080p
- HDCP 1.4 compliant
- HDMI Audio: 2.0, 5.1, 7.1-channel digital audio
- Bi-directional IR / EDID management
- HDMI loopout for a local display or cascade to 4 layers
- PoC allowing the TX power adapter to power all RX’s over CAT cables
Important Notes: 1) A good quality CAT5e/6/7 cable is essential in delivering quality content. CAT6/6a/7 is recommended over CAT5e; 2) We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH); 3) This kit is point to point and comes with 1 Transmitter and 4 Receivers. It’s not meant to work through routers or network switches; 4) If you live in an area with thunderstorms, plug this product's power adapter into a surge protector power strip to protect your device from voltage spikes
-

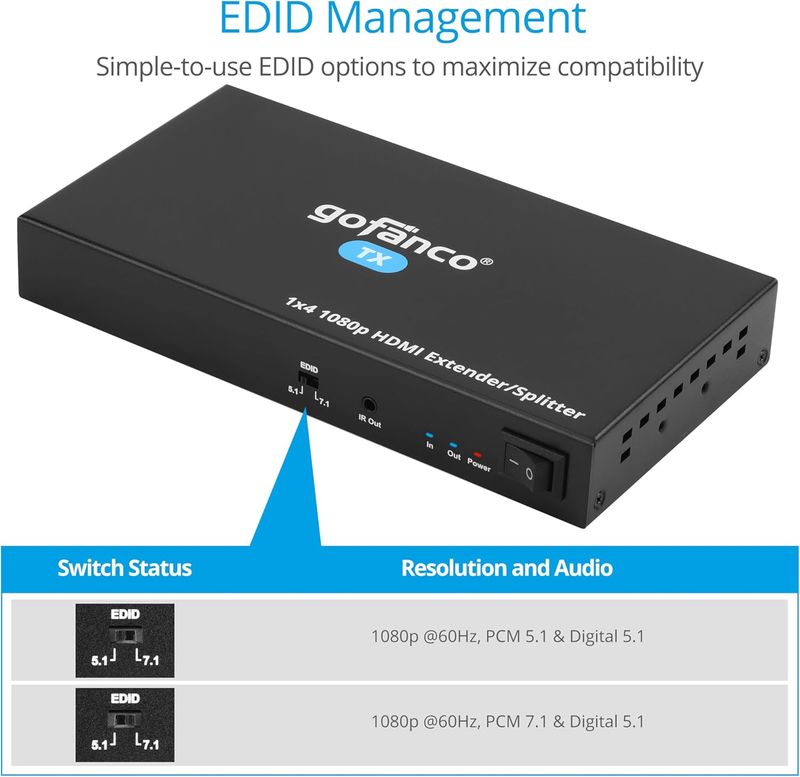

EDID Management
Easy-to-follow EDID configurations to maximize compatibility
Comparison Table
| Customer Reviews | 4.4 out of 5 stars 393 | 4.4 out of 5 stars 393 | 4.4 out of 5 stars 393 | 4.3 out of 5 stars 356 | 4.4 out of 5 stars 393 | 4.4 out of 5 stars 393 |
| Price | $129.99$129.99 | $122.88$122.88 | $179.88$179.88 | $156.88$156.88 | $215.99$215.99 | $299.88$299.88 |
| Role | HDMI Extender/Splitter | HDMI Extender/Splitter | HDMI Extender/Splitter | HDMI Extender/Splitter | HDMI Extender/Splitter | HDMI Extender/Splitter |
| # Receivers (RX) | 2 | 2 | 4 | 4 | 4 | 4 |
| Transmission Range | 165ft | 230ft (1080p), 131ft (4K 30Hz) | 165ft | 130ft | 230ft (1080p), 131ft (4K 30Hz) | 197ft |
| Resolution (Max) | 1080p | 4K 30Hz | 1080p | 1080p | 4K 30Hz | 4K 60Hz 4:4:4 |
| HDCP | 1.2 | 1.4 | 1.4 | 1.4 | 1.4 | 2.2 |
| Loopout | ✔ | ✔ | ✔ | ✘ | ✔ | ✔ |
| Power Over Cable (PoC) | ✘ | ✘ | ✔ | ✘ | ✘ | ✔ |
| IR Extension | Dual IR | Dual IR | One-way IR | One-way IR | Dual IR | Dual IR |
| Audio | 7.1-channel | 5.1-channel | 7.1-channel | 7.1-channel | 5.1-channel | 5.1-channel |
| Audio Extraction | ✘ | ✘ | ✘ | ✔ | ✘ | ✔ |
