FLIPSKY FT85BD Dual ESC 84V 200A with Aluminum Case Non-Vesc for Electric Skateb
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230746533
- Quantity : 1 item
- Views : 3
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:14:24 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description

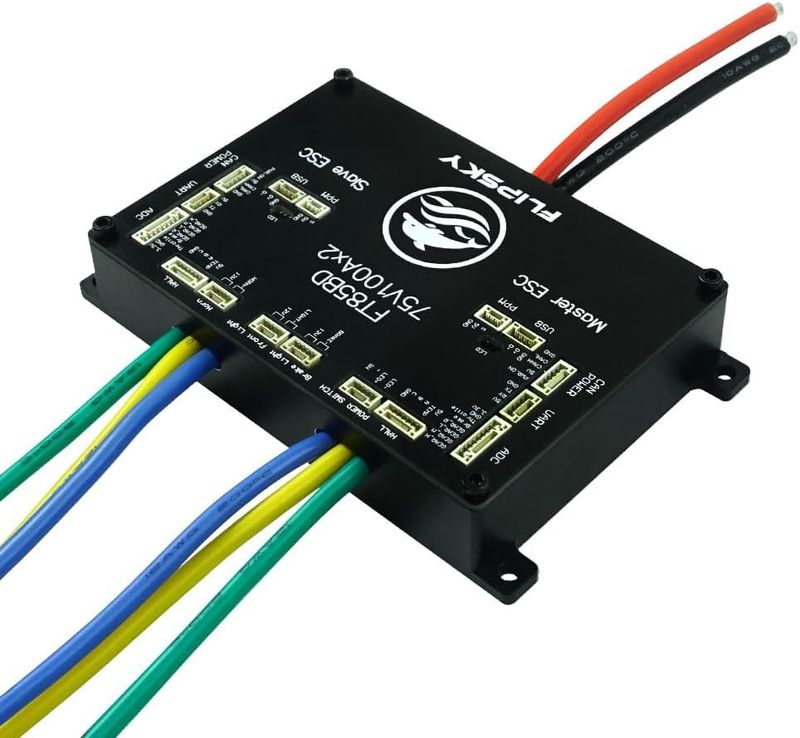

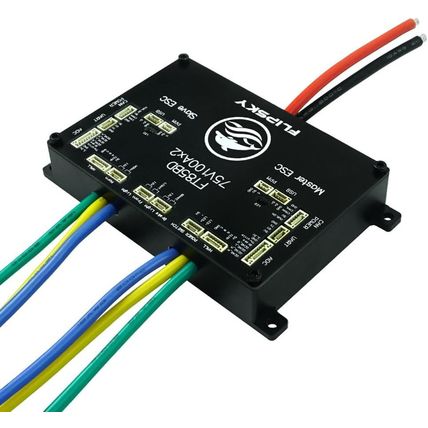

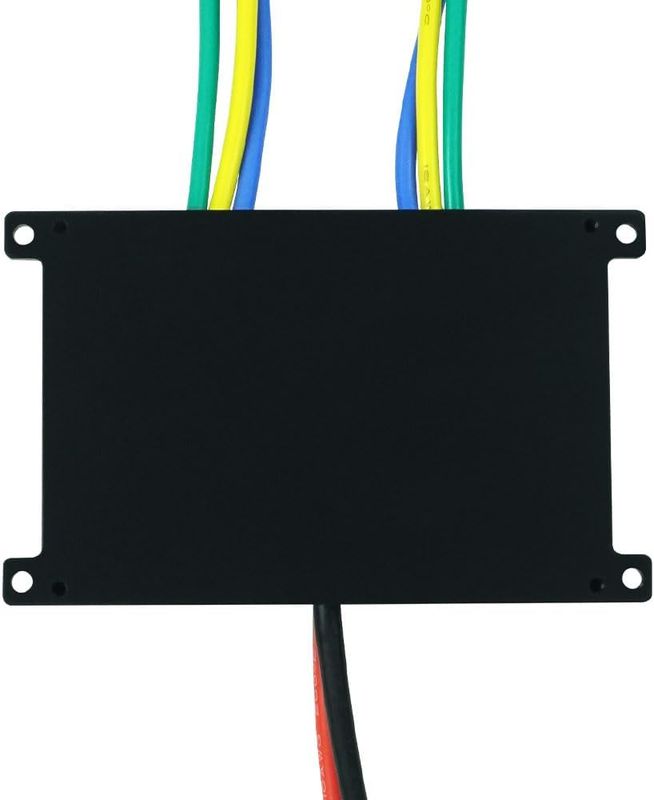

FLIPSKY FT85BD Dual ESC 84V 200A with Aluminum Case Non-Vesc for Electric Skateboard/Scooter/Ebike Speed Controller/Electric Motorcycle/Robotics
Description
| Manufacturer | Flipsky |
| Warranty Description | 2M+ |
| Brand Name | FLIPSKY |
| Color | BLACK |
| Material | Aluminum |
| Package Weight | 0.51 Kilograms |
| Item Weight | 0.51 Kilograms |
| Suggested Users | unisex-adult |
| Model Name | FTC-85D-A-100 |

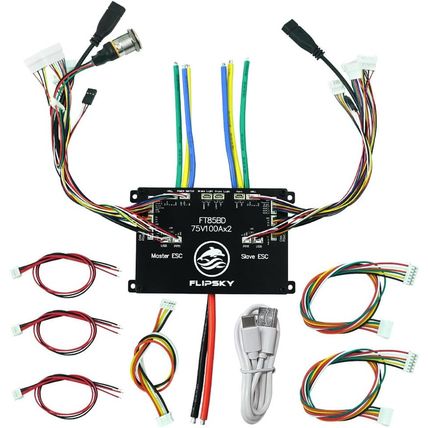

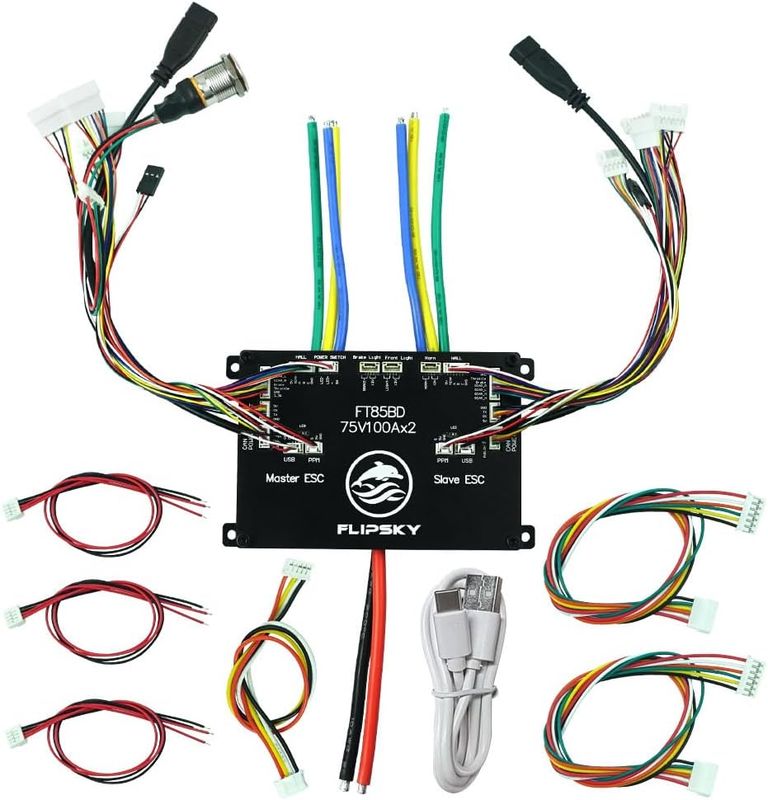

| Included Components | FT85BD ESC With Aluminum |
| Item Package Dimensions L x W x H | 7.95 x 5.59 x 1.34 inches |

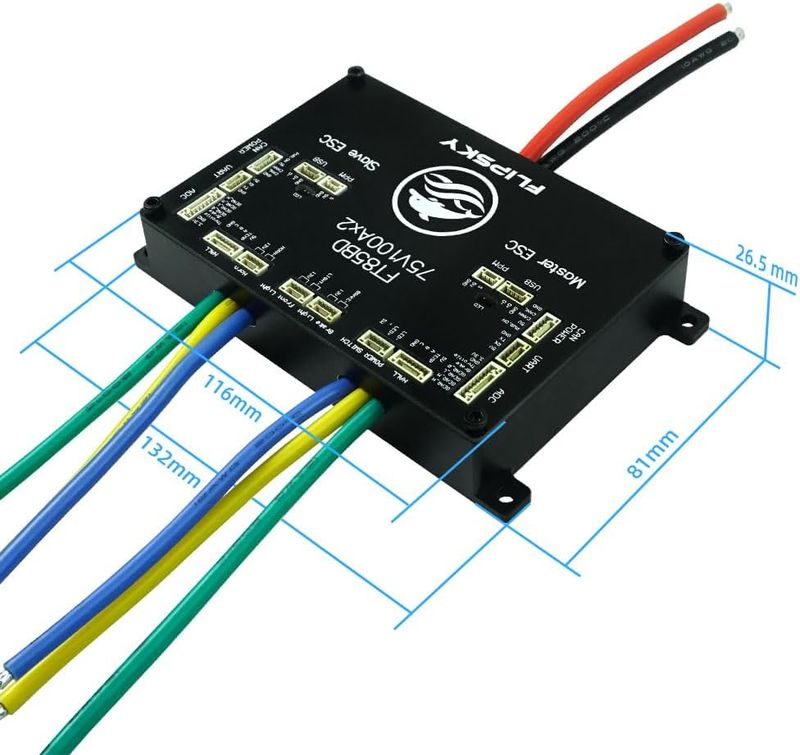

| Size | L132*W81*H26.5mm(Including Alu. Case) |
- Voltage: 14-84V (safe for 4S-20S);Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)

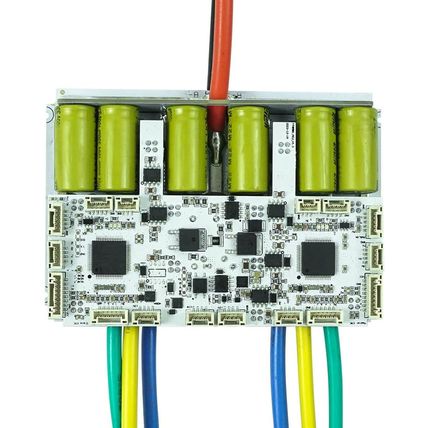

- Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
- Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
- Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
- Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
- Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
- Supporting extra interface like front lights, rear brake lights and horn fixtures.
Note: USB cable black or white will be shipped randomly.

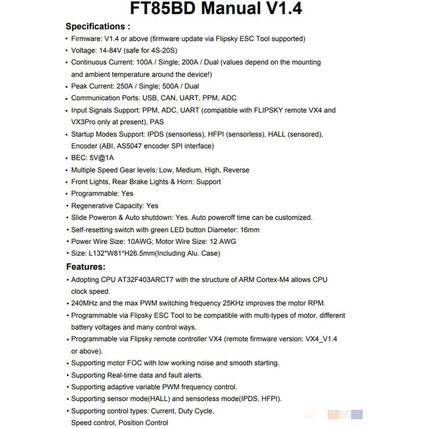

Specifications :
- Firmware: V1.2 (firmware update via Flipsky ESC Tool supported)
- Voltage: 14-84V (safe for 4S-20S)
- Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)
- Peak Current: 250A / Single; 500A / Dual
- Communication Ports: USB, CAN, UART, PPM, ADC
- Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present)
- Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored)
- BEC: 5V@1A
- Multiple Speed Gear levels: Low, Medium, High, Reverse
- Front Lights, Rear Brake Lights & Horn: Support
- Programmable: Yes
- Regenerative Capacity: Yes
- Slide Poweron & Auto shutdown: Yes
- Self-resetting switch with green LED button Diameter: 16mm
- Power Wire Size: 10AWG; Motor Wire Size: 12 AWG

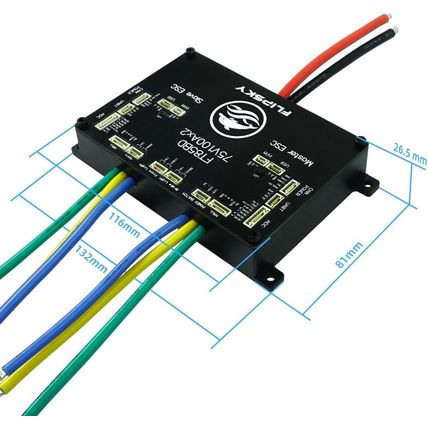

- Size: L132*W81*H26.5mm(Including Alu. Case)
Features:

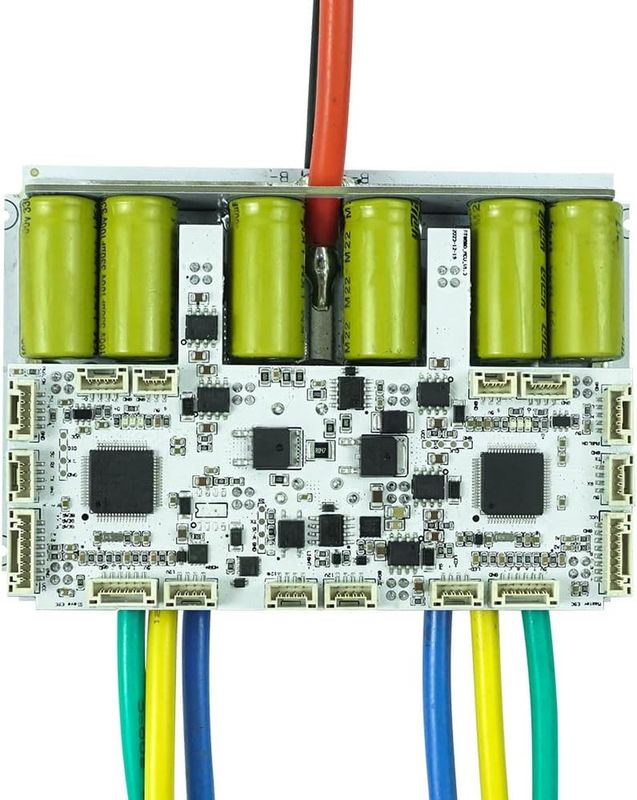

1.Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
2.240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
3.Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
4.Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
5.Supporting motor FOC with low working noise and smooth starting.
6.Supporting Real-time data and fault alerts.
7.Supporting adaptive variable PWM frequency control.
8.Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
9.Supporting control types: Current, Duty Cycle
10.Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
11.Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.
12.Supporting extra interface like front lights, rear brake lights and horn fixtures.
