EPEVER 60A MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identif
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230747051
- Quantity : 1 item
- Views : 2
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:15:34 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description
EPEVER 60A MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identifying System Voltage Max.Pv 150V Solar Panel Regulator (Tracer 6415 An)
Description
| Display Type | LCD |
| Batteries required | No |
| Brand | EPEVER |
| Style | Tracer6415AN |
| Item Weight | 5.4 Kilograms |
| Color | 60A 150V |
| Voltage | 24 Volts |
| Package Dimensions | 17.5 x 11.5 x 7.5 inches |
| Manufacturer | EPEVER |
- MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%. High quality & low failure rate components of ST and Infineon to ensure the product's life.
- With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system.
- All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time. It have battery temperature compensation function, real-time energy recording and statistical function, automatic over-temperature power reduction function. Hundred percent full load operation in working environment temperature range within charging & discharging.
- Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power & charging current double automatic limiting function. Support 4 charging options: Sealed, Gel, Flooded and User.
- The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application, it support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.
Product Description
- Tracer AN series controller, based on multiphase synchronous rectification technology (MSRT) and advanced MPPT control algorithm, with dual-core processor architecture and common negative design, has the features of high response speed, high reliability, and high industrial standard.
- MSRT can sure very high conversion efficiency in any charge power, which sharply improves the energy efficiency of solar system; Advanced MPPT control algorithm minimize the maximum power point loss rate and loss time, to ensure the tracking efficiency, corresponding speed as well as high conversion efficiency under high or low power, so that in any situation, Tracer AN products can rapidly track the maximum power point(MPP) of PV array to obtain the maximum energy of the panel.
- With the adaptive three-stage charging mode based on digital control circuit, Tracer AN series controllers can effectively prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-control relays make it easy to compose the hybrid power system.
- It support up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring, etc.
Features:
- CE certification(LVD EN/IEC62109, EMC EN61000-6-1/3)
- High quality & low failure rate components of ST and Infineon to ensure the product’s life
- The accuracy of the recognition and tracking at the highest point of multiple-peaks MPP
- Auto control system to limit the charging power & current go over the rated value
- Battery temperature compensation function, Real-time energy recording and statistical function, Automatic over-temperature power reduction function

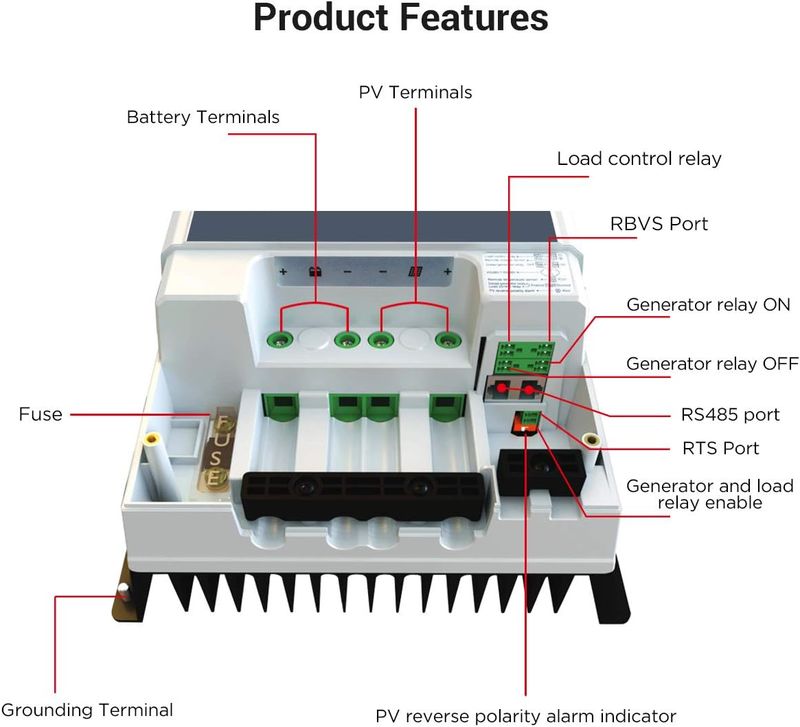

- Load relay control external load switch signal to realize diversified load work modes
- All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively ensure the safer and more reliable operation of the solar system for a longer service time.
The isolated RS485 interface with standard MODBUS communication protocol and 5V power supply makes it easy for customer to expand the application
Ensure compatibility with any negative ground system, which is the standard and most conventional way of grounding
Made of aluminum alloy material good heat dissipation
Battery Type:
- Lead-acid batteries
- Lithium-ion batteries
NOTICE
- The controller connection sequence is Battery--Load--Solar Panel, and discounect the system in the reverse order Solar Panel--Load--Battery

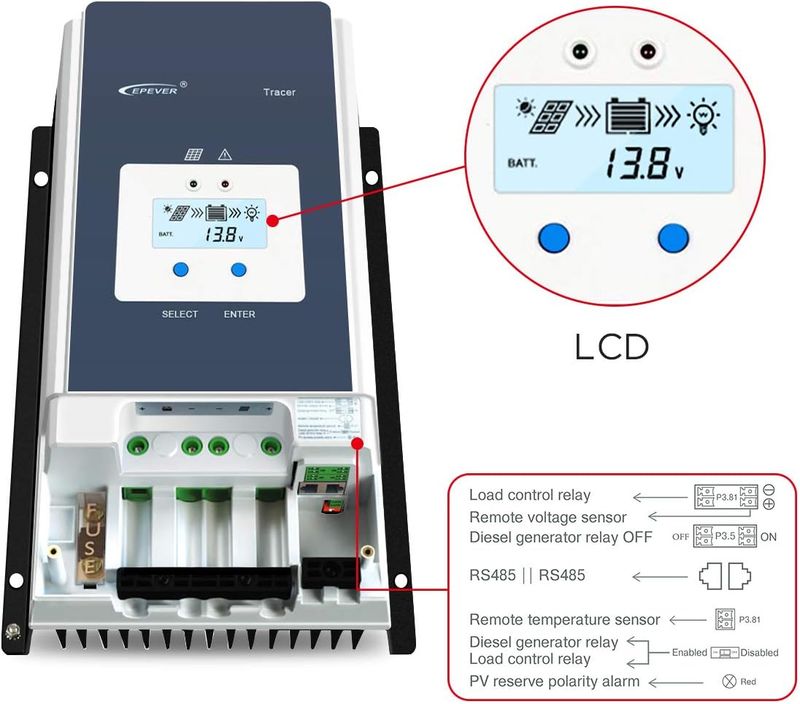

- Browse interface: when no operation, the interface will be automatic cycle, but the follow two interfaces not be display
Package List:
- 1 x Tracer 6415AN Solar Charge Controller
- 1 x User Manual
