Automotive Radiator Coolant Vacuum Refill Tool Kit, Engine Cooling System Vacuum
- Condition : New
- Dispatch : 3 Days
- Brand : None
- ID# : 230746656
- Quantity : 1 item
- Views : 4
- Location : United States
- Seller : powersignaltechno (0)
- Barcode : None
- Start : Tue 29 Jul 2025 09:14:45 (EDT)
- Close : Run Until Sold
- Remain : Run Until Sold
for 1 item(s)
More Listings from This Seller view all
Seller's Description
Automotive Radiator Coolant Vacuum Refill Tool Kit, Engine Cooling System Vacuum Purge & Fill Tool Set with Universal Adapters (O.D. 32Mm 35Mm 40Mm 45Mm) for Car SUV Truck Airlift, Red Case
Description
| Item model number | AD10102RD |
| Color | Red Case |
| Brand | ADAFIRST |
| Manufacturer Part Number | AD10102RD |
| Item Weight | 3.89 pounds |
| Model | AD10102RD |
| Package Dimensions | 14.72 x 12.83 x 4.76 inches |
| Manufacturer | ADAFIRST |
- Cooling System Vacuum Purge & Refill Kit: Hooking up your air compressor(not offered) to the coolant refill tool, draw a vacuum in the cooling system, then suck fresh coolant into the whole system in a breeze. Coolant replacement is usually completed within 10 to 15 minutes for normal vehicles. Vacuum-type coolant filler eliminates the need for time-consuming air exhaust and reduces the risk of engine overheating or warping; Keeping your car running smoothly as usual

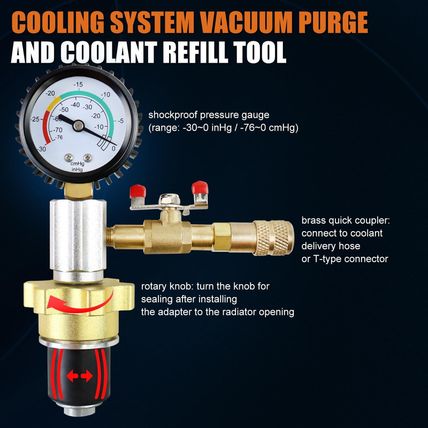

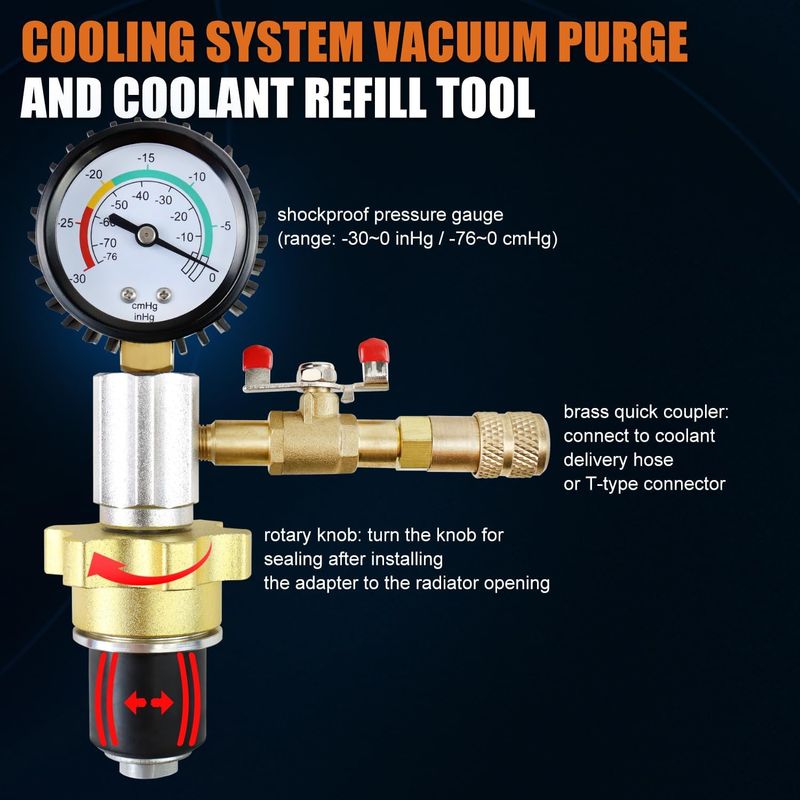

- Coolant Refill Tool with Gauge: Airlift coolant refill tool consists of a shockproof pressure gauge(range: -30~0 inHg / -76~0 cmHg), metal manifold body with convenient designs of on/off valve and quick coupler, rotary golden knob and rubber adapter(O.D. 32 mm). Rotate the knob clockwise after installation of the coolant filling tool, the adapter will expand slightly to achieve the desired sealing effect. Optimal operating pressure range: -25~-20 inHg (-50~-60 cmHg)
- T-type Connector & European Air Plug: Manufactured from solid brass and aluminum material, precision-machined tools are perfect for high corrosion resistance, excellent durability and strength as it can endure long periods of wear and tear. The tee connector owns a removable American air plug and a spare European air plug, realizing a convenient three-way connection among air source, vacuum coolant refiller and drain hose, to achieve fast vacuuming work
- Other Tools: Radiator vacuum tool and refill kit is also equipped with 2 transparent coolant hoses(59-inch coolant delivery hose and 23-5/8-inch coolant drain hose) and 3 applicable rubber adapter sleeves(O.D. 35 mm, 40 mm, 45 mm) in a sturdy portable case. Delivery hose has a suction nozzle with filter net to resist mineral buildup, while drain hose prevents unsafe coolant splashing. Radiator adapter sleeves of different sizes are ready for use on the vacuum tool to achieve more applicability
- After-sale Company: First of all, welcome to ADAFIRST store. Thank you for your trust and choice of the ADAFIRST. We are committed to providing customers with satisfied product and quality service, customer satisfaction is our pursuit. To avoid delaying your work at hand, please check the completeness and functional performance of your purchase as soon as you receive it. If there is any doubt or question, just come to us and we are all at your service. Promise: Reply within 24 hours
Product Description

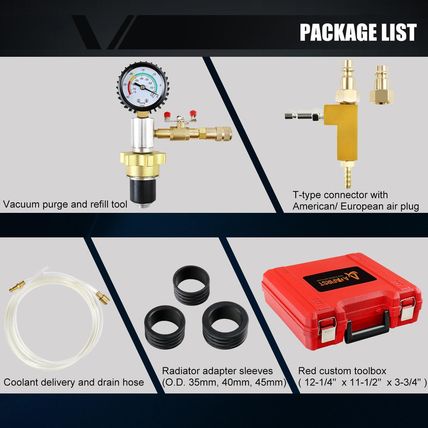

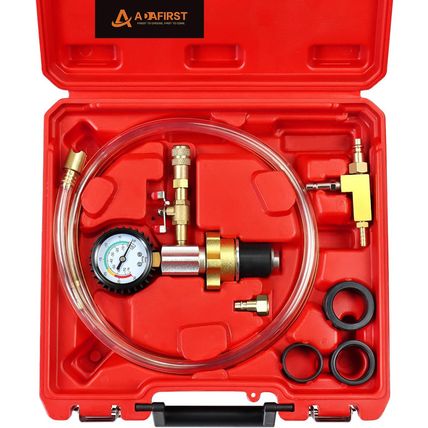

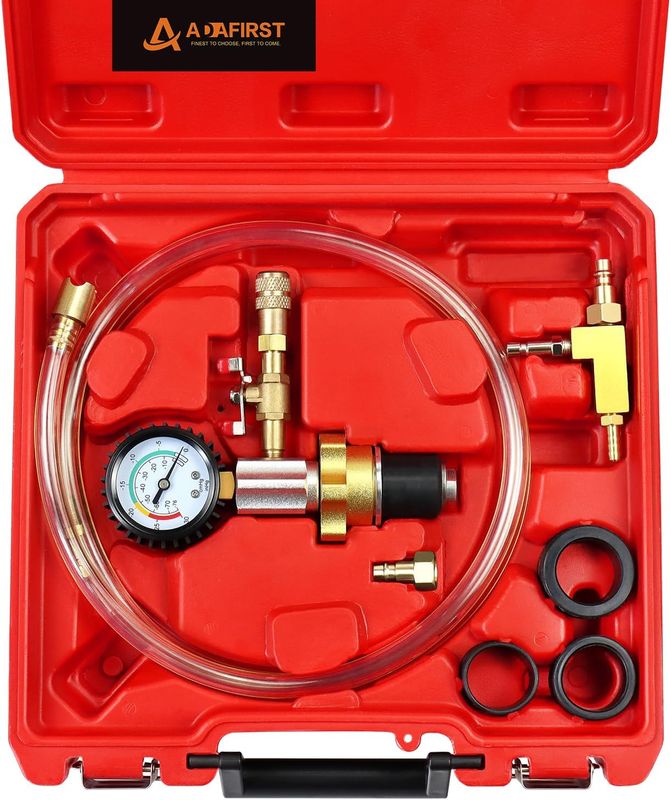

Set Includes
Cooling System Purge and Refill Tool (Range: -30~0 inHg, -76~0 cmHg) x 1
T-type Connector with American Air Plug x 1
59-inch Coolant Delivery Hose x 1
23-5/8-inch Coolant Drain Hose x 1
European Air Plug x 1
Radiator Adapter Sleeves (O.D. 35mm, 40mm, 45mm) x 3
Red Custom Toolbox, 12-1/4 x 11-1/2 x 3-3/4 inches x 1
PS: Required air compressor or vacuum pump is not offered.
Vacuum Coolant Refiller

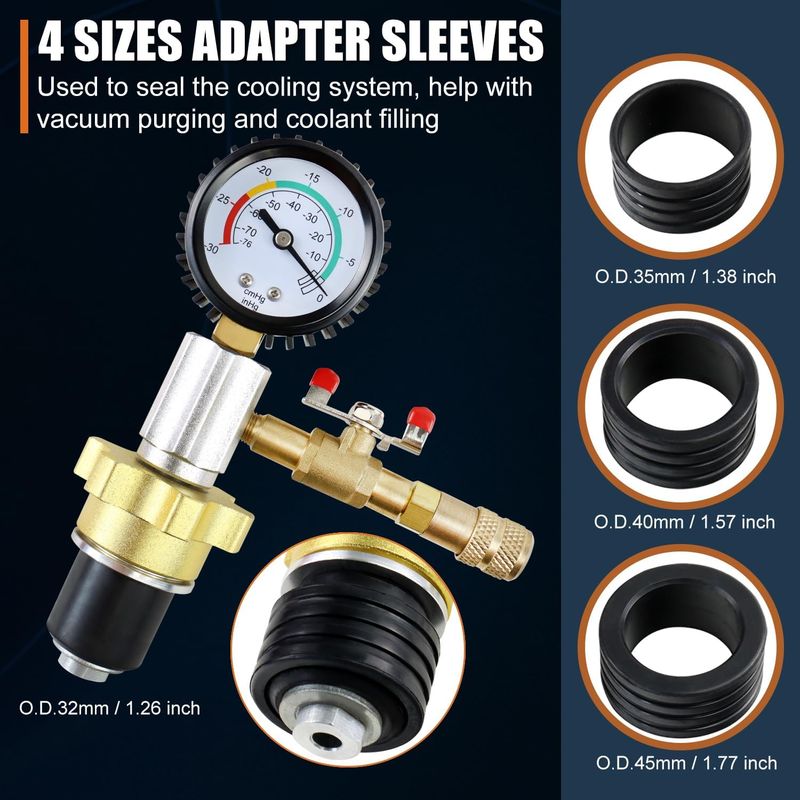

Adapter Size Selection
Four sizes(O.D.32mm / 1.26 inch; 35mm/1.38 inch; 40mm / 1.57 inch; 45mm / 1.77 inch) to choose from.
Please check whether the size of the adapter and matching sleeves meet your vehicles' needs before you purchase.
Vacuum Coolant Refill Tool
For Radiator Vacuum Purge & Coolant Replacement
Strengths
a. Quickly refills the entire cooling system and eliminates air bubbles.
b. Convenient designs like time-saving pneumatic operation and brass quick coupling.
c. Accurate and easy to read vacuum pressure gauge(Range: -30~0 inHg / -76~0 cmHg).
d. Tools are of excellent workmanship. Designed for repeated use with high quality metal, rubber and plastic materials.
You May in Need of It
1. For pneumatic vacuum
Pneumatic operation is much easier and faster than manual work. Saves both time and labour.
2. For excellent quality
Aluminium and brass manufacturing and precision machined processing. Rustproof and corrosion-resistant.
3. For sufficient filling
ADAFIRST coolant vacuum refill kit enables quick and safe coolant change in 10-15 minutes.
Considerations
1. Please refer to the equipment operation instruction carefully, and compare to the manufacturer's recommended readings. Make sure the adapter sizes fit your vehicle before purchase.
2. The coolant vacuum refill kit should be operated by a professional or under the guidance of a professional.
3. Be careful when opening the radiator cover as high-temperature coolant may be sprayed under pressure.
4. It is recommended to wear protective masks, gloves and goggles and work in a well-ventilated place.

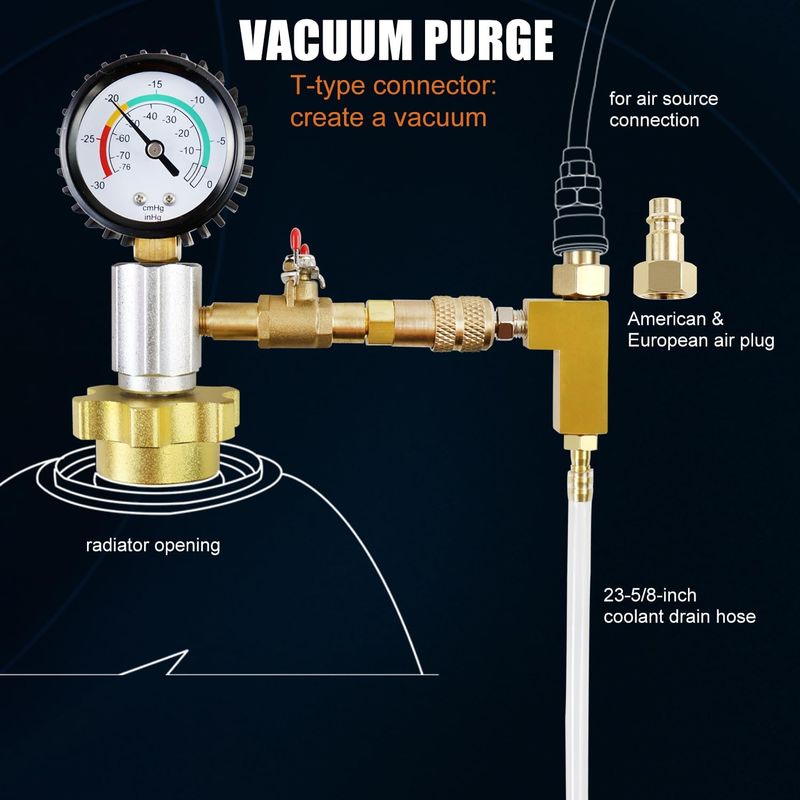

Vacuum Purge Process
(1). Discharge residue coolant in the system as much as possible.
(2). The 3 ends of the T-type connector are respectively connected to the air compressor or vacuum pump (upper side), the drain hose (at the bottom) and the vacuum coolant refill tool (left side; which is required to install the radiator adapter sleeve at the bottom or not, and then insert into the radiator).
(3). Turn clockwise the golden rotary knob slightly to seal it. Open the switch valve on the brass tube, and then turn on the air machine for vacuum when the pressure reaches -25~-20 inHg (-50~-60 cmHg). Close the valve and air source.

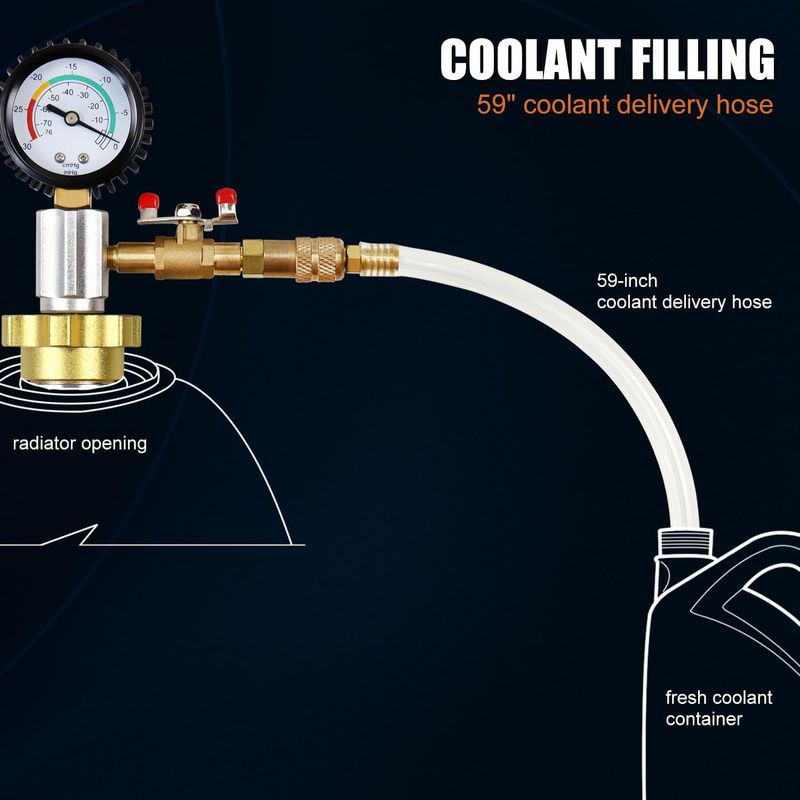

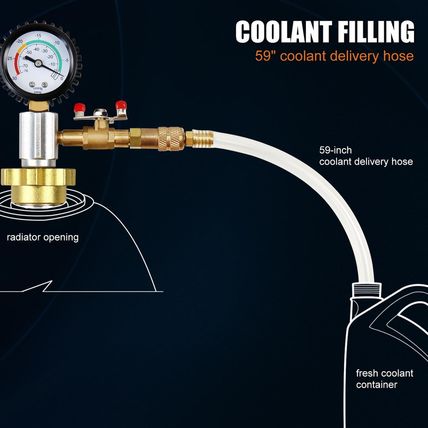

Quick Coolant Filling Work
(4). Disconnect the T-type connector from the vacuum coolant refill tool, and replace by the coolant delivery hose, which needs the suction inlet to be completely immersed in fresh coolant. Open the valve, and the coolant is sucked into the radiator.
(5). Repeat vacuuming and filling until the coolant reaches the specified level
1. T-type Connector
3-way brass & aluminum tee fitting.
T-type connector is used to help create a vacuum.
2. Coolant Delivery Hose
59-inch long transparent hose.
The delivery hose transfers fresh coolant into the whole system in a safe and efficient way.
3. Coolant Drain Hose
23-5/8-inch long transparent hose.
When vacuumizing, the water vapor in the water tank is extracted and condensed into water droplets, which can be discharged from the drain hose to avoid splashing
4. European Air Plug
1/4 inch in size.
European style air plug is an alternative to the American style air plug on the vacuum coolant purge tool.
This greatly expands the scope of application of the tool.
T-type Connector
Coolant Delivery Hose
Coolant Drain Hose
European Air Plug
