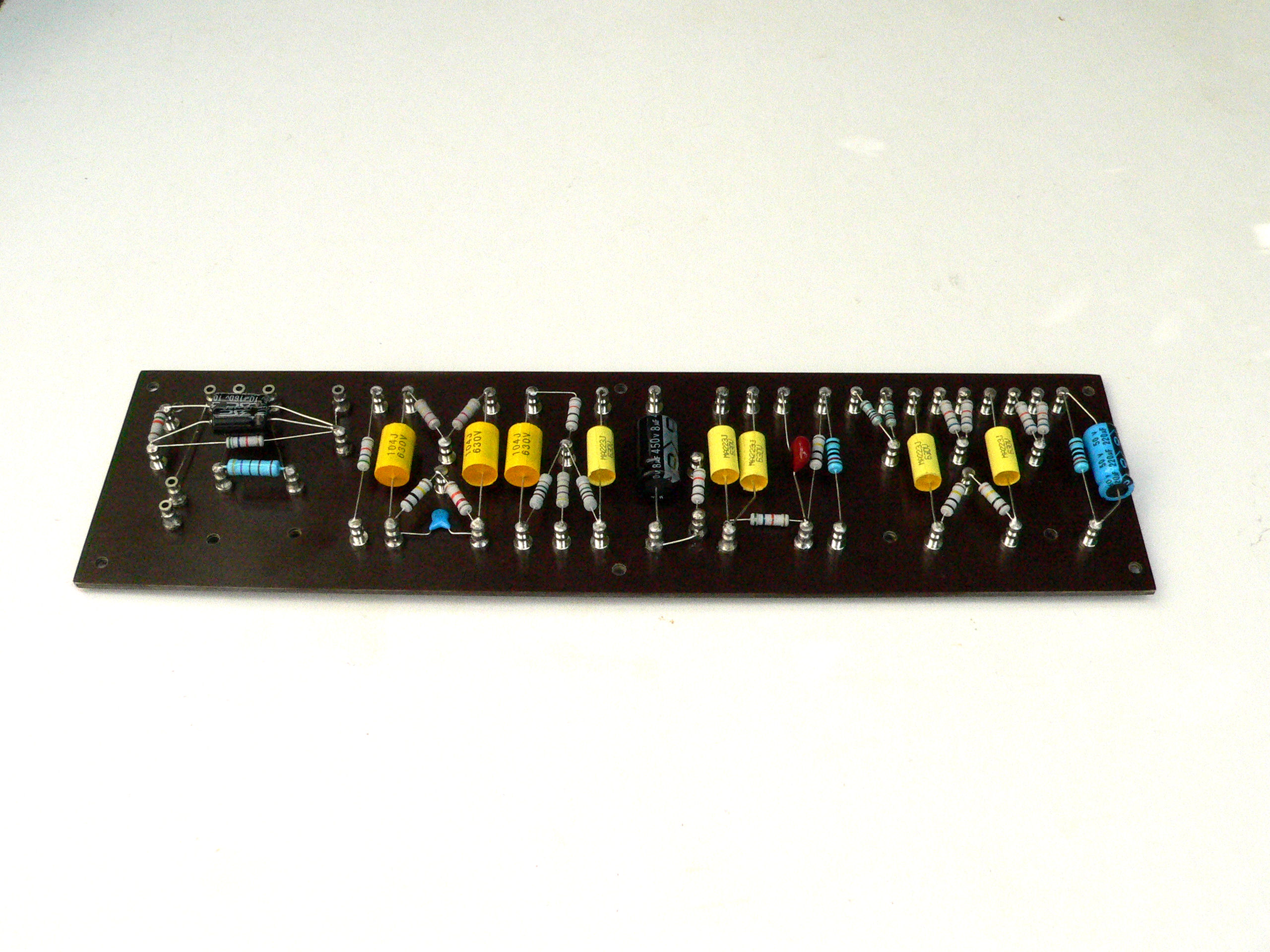

This board is a full size 297mm x 80mm turretboard built on 2.5mm thick Paxolin sheet in chocolate brown. It is fitted with sturdy turret lugs standing 8.4mm above the board, fully wired and tested and ready to use.
The version of the board shown may be wired for 40W 6L6/5881 x 2 or 80W 6L6 / 5881 x 4 based amplifiers with 2 x 12AX7 and 12AY7 preamp front end (valves not included). If you incorporate an external bias pot (the series resistor for this is already on the board) then you can also fit and bias EL34 output valves to work with this amp. Please note that each of these boards is individually hand built to your requirements once you specify which version of the board you require, so if you need any minor component value changes, Silver Mica tone shaping capacitors, or other modifications, just let us know before or when you place your order and we will do our best to accommodate them. Note that due to demand, there is now a waiting list for these Turret boards, so please do contact us as the earliest opportunity to allocate a production time for your board. These modules do not contain a rectifier, leaving the option to wire in a valve rectifier on the chassis or a solid state rectifier on or near the transformer. Note that this amplifier originally also used a power supply capacitor filter board mounted on top of the chassis, and we can also supply a ready assembled version of this board for you, see our store for details. See our other listings for 6P3S (budget 6L6 replacement for lower voltage amps), 6L6 and 12AX7 valves and valve kits, 22uF 500V and 100uF 500V axial electrolytic capacitors also used in these amplifier circuits. We can also supply the capacitor filter board complete and assembled, full pot sets and valve sockets for these amplifiers at our usual keen prices, see our other listings for details! Other Turret Boards built and fitted with components, including your own custom designs, also available - contact us for details and a quotation.
|
