MFJ-890 World Wide Amateur Radio Beacon Receiver

MFJ-890 World Wide Amateur Radio Beacon Receiver



Description

Do not buy if you have not read everything below here.



Everything below here comprises the complete description of the goods on sale and the conditions of sale.  The title above and on the listing is NOT part of the description.

You agree to my description and conditions below by your purchase.



Serious about Amateur Radio ? See my other radio stuff in my eBid store

https://www.ebid.net/uk/stores/Morrismossfets-Amateur-Radio-and-Test-Gear-Store



Every one of my lots is listed as 'parts not working' as they are all untested.  I just do not have enough time to describe every nuance and attribute of a tested unit, so I have decided not to test any of them.

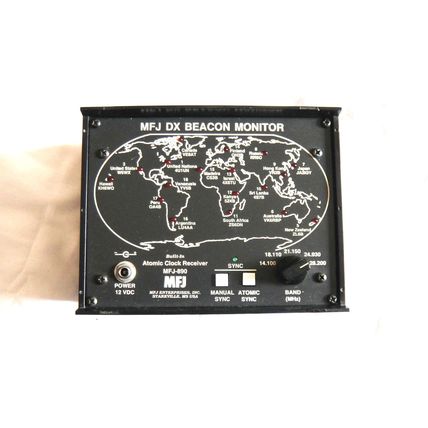

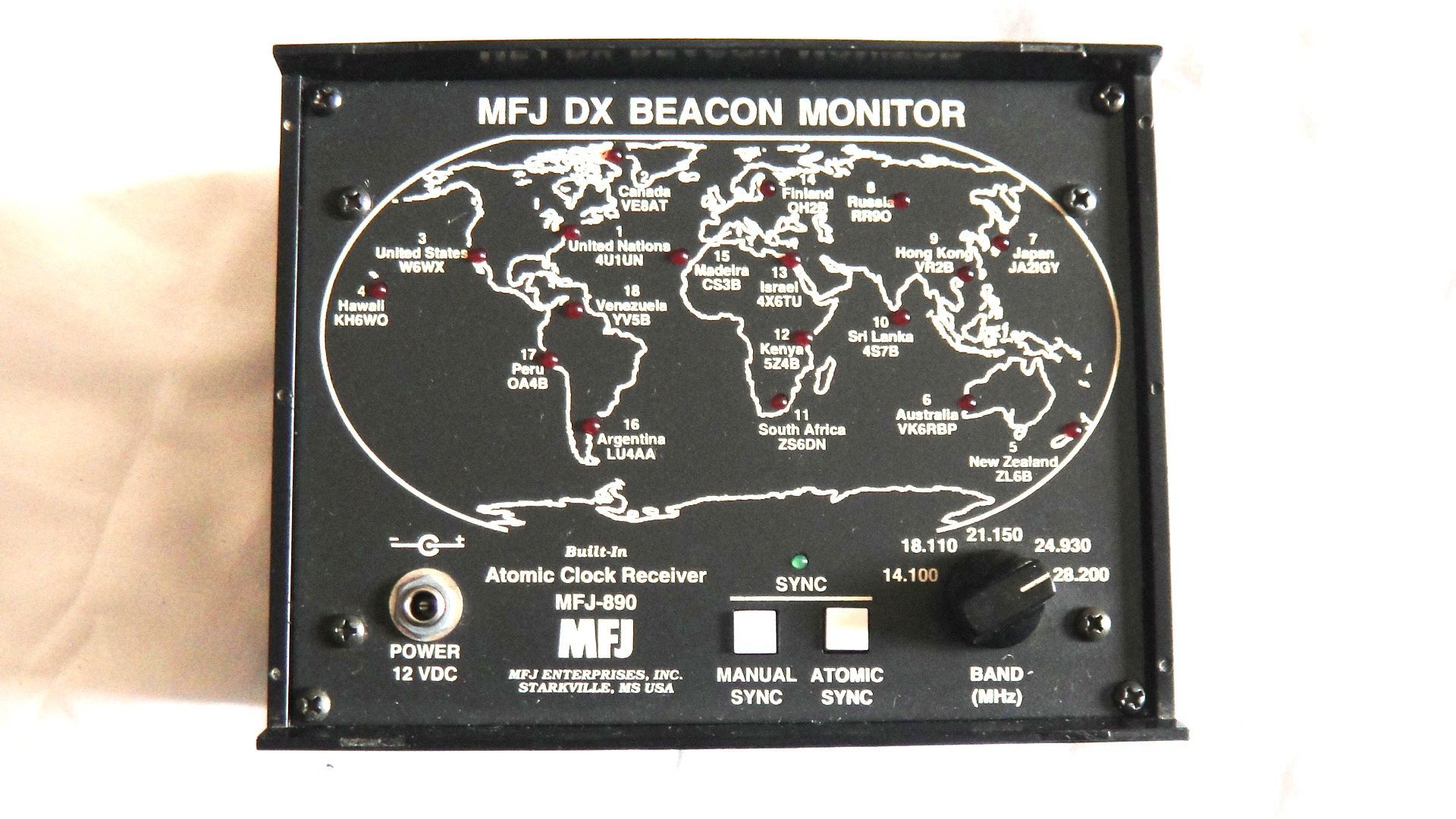

You are buying a MFJ-890 Global Amateur Radio Beacon Receiver

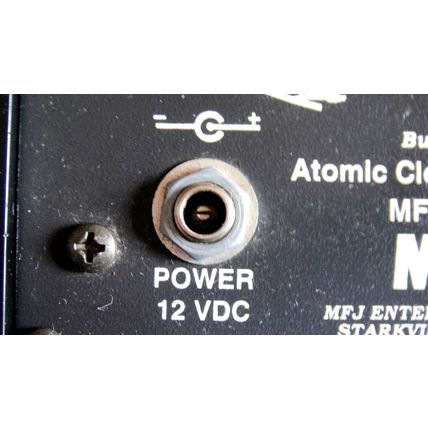

The unit powers up and steps through beacons. There is no power supply, but the receiver takes a standard 12V DC camera supply, which is easily obtained.



Due to the very high noise levels at this location it has not been possible to test beyond powering up. Because of the noise the 60KHz syc signal has not been found (nor ever has been on frequency standards or communications receivers – all far to noisy down there). Consequentially the unit is sold as parts not working.



From The Handbook



This beacon monitor enables you to track the 18 NCDXF/IARU beacon transmissions that make up the International Beacon Network. Tracking these beacons is very useful because it allows you to know how the propagation is around the world, and what transmitting frequency is the best. Once the MFJ-890 is synched, an LED will light to tell you which beacon is being heard.

The MFJ-890 has a built-in time signal receiver for synchronization. This provides a very precise timing to track the beacon transmissions. It automatically performs daily synchronization to correct and adjust any timing error. The firmware works with signals from WWVB (United States), MSF (Great Britain), DCF 77 (Germany), and JJY (Japan) transmitters; however, the proper time signal receiver must be installed to use signals other than WWVB. In this manual, only the USA transmitter WWVB will be referenced.



The International Beacon System

The International Beacon Network is a worldwide network of high-frequency radio beacons on 14.100, 18.110, 21.150, 24.930, and 28.200 MHz. There are currently 18 beacons located around the world transmitting continuously. The purpose of these beacons is to allow one to know how the propagation is in different parts of the world, and at what frequency it is best.

The beacons’ transmit sequence starts on the hour and runs continuously in three-minute cycles. A transmission consists of the callsign of the beacon, sent at 22 words per minute, followed by four one-second dashes. The callsign and the first dash are sent at 100 watts, while the remaining dashes are sent at 10 watts, 1 watt and 0.1 watts, respectively. The four power levels of dashes allow the listener to know how the propagation is in that section of the world. The more dashes that are heard, the better the propagation.

Each of the 18 beacons has a specific time and frequency at which they transmit. This allows the user to know which beacon is being heard. The first beacon to transmit on the hour is the United Nations beacon, 4U1UN on 14.100 MHz.

Once its transmission is complete, the Canada beacon, VE8AT, transmits on the same frequency. This sequence continues throughout all the beacons and then repeats itself.

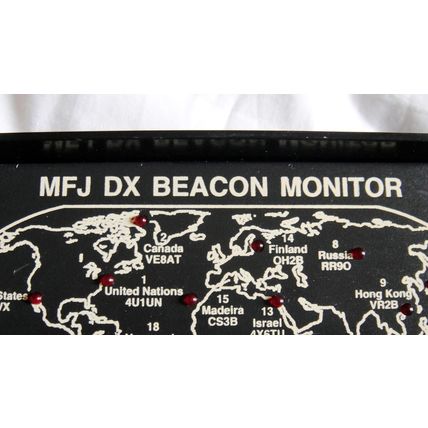

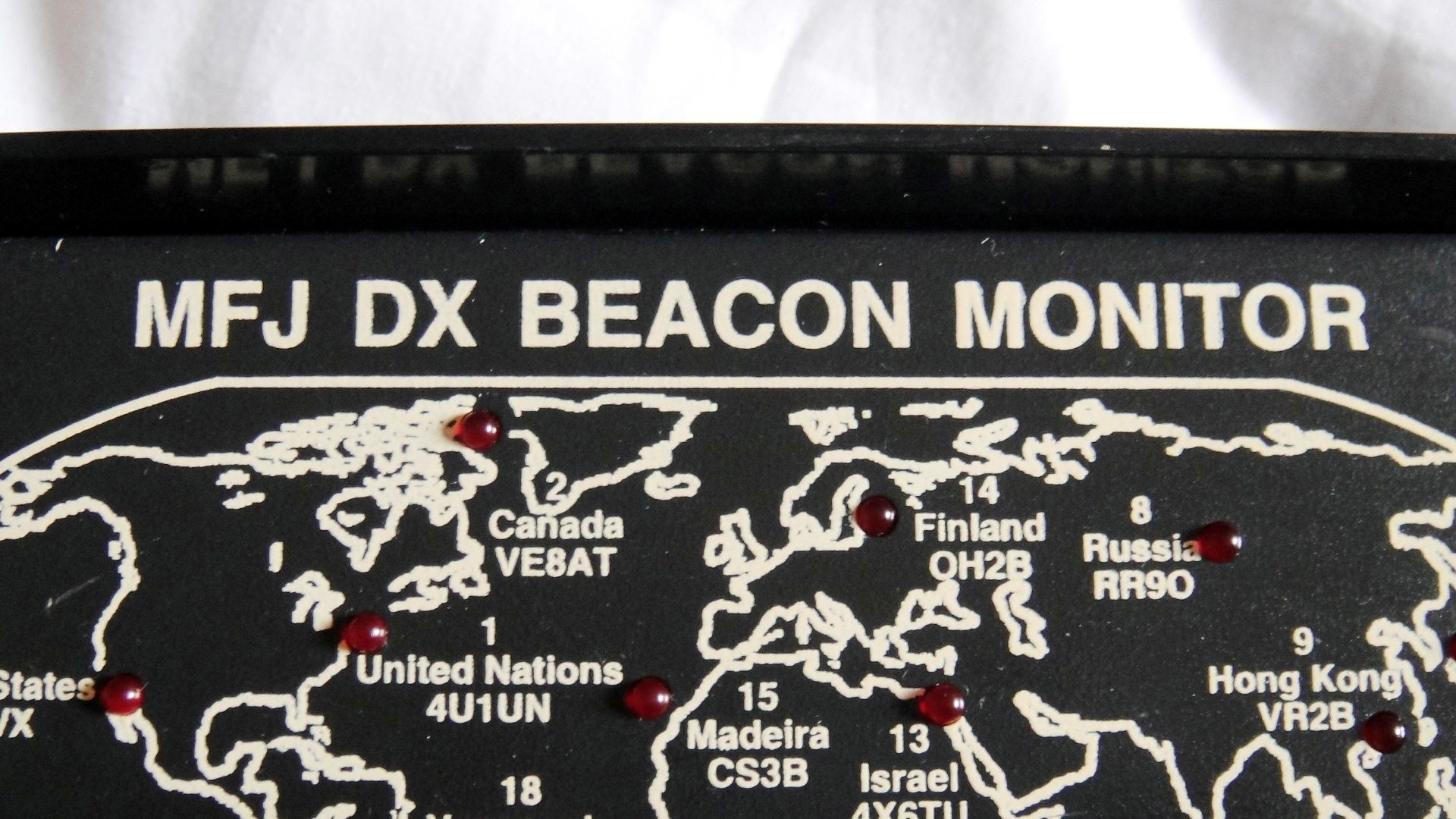

When the MFJ-890 is synched and on the 14.100 MHz frequency, tune your radio to 14.100 MHz. You can see which beacon is transmitting by looking to see which LED is lit on the MFJ-890. You will then notice the LED light at the next transmitting beacon, and cycle throughout all of them



Handbook here

https://en.classicinternational.eu/_clientfiles/manuals/mfj890.pdf



Only what is pictured is included in the sale (except the 2p coin used for size indication).

See the pictures as they are the description. The words provide additional information taken from the pictures and the internet. Please judge the goods for sale yourself from the pictures.
