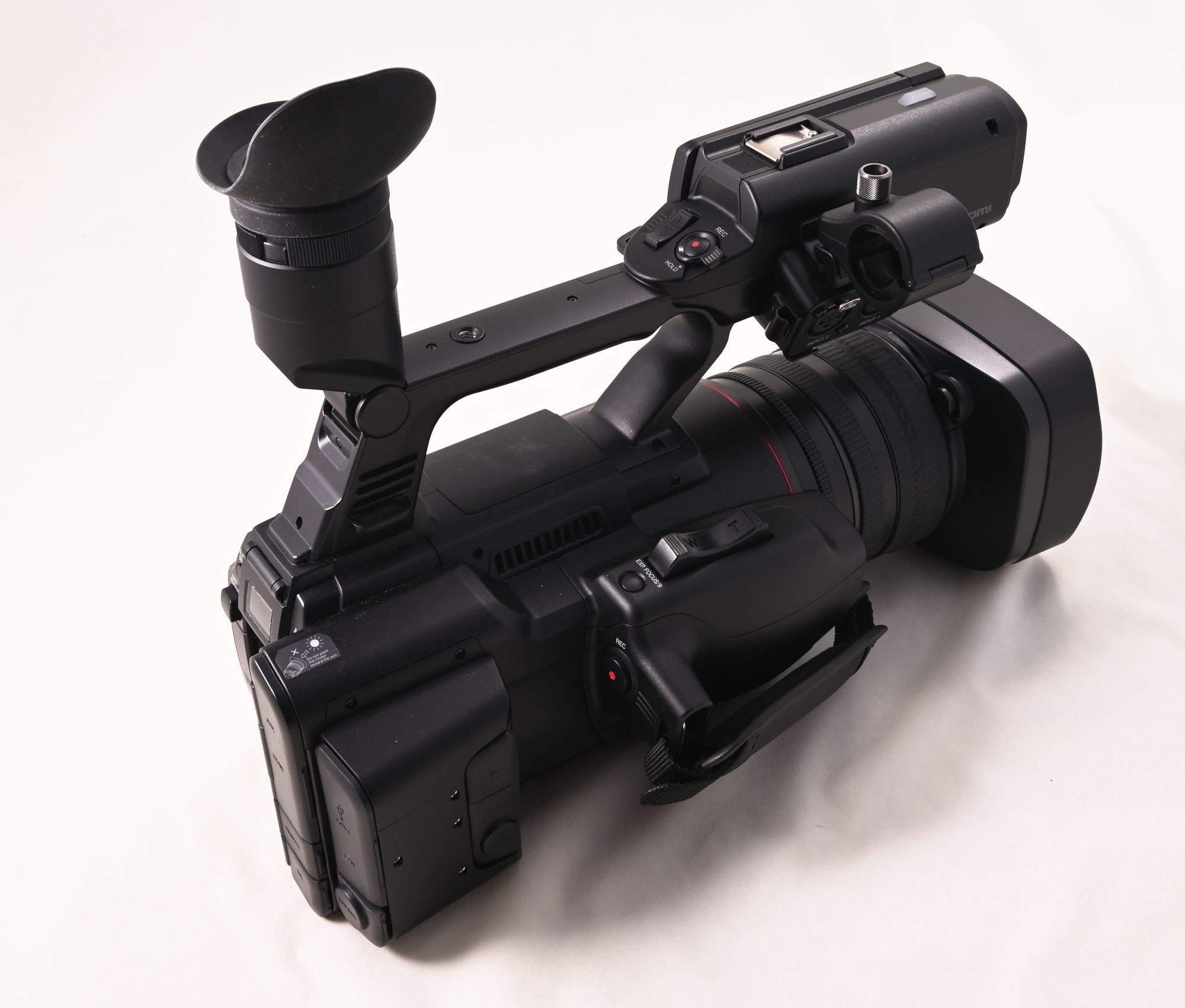

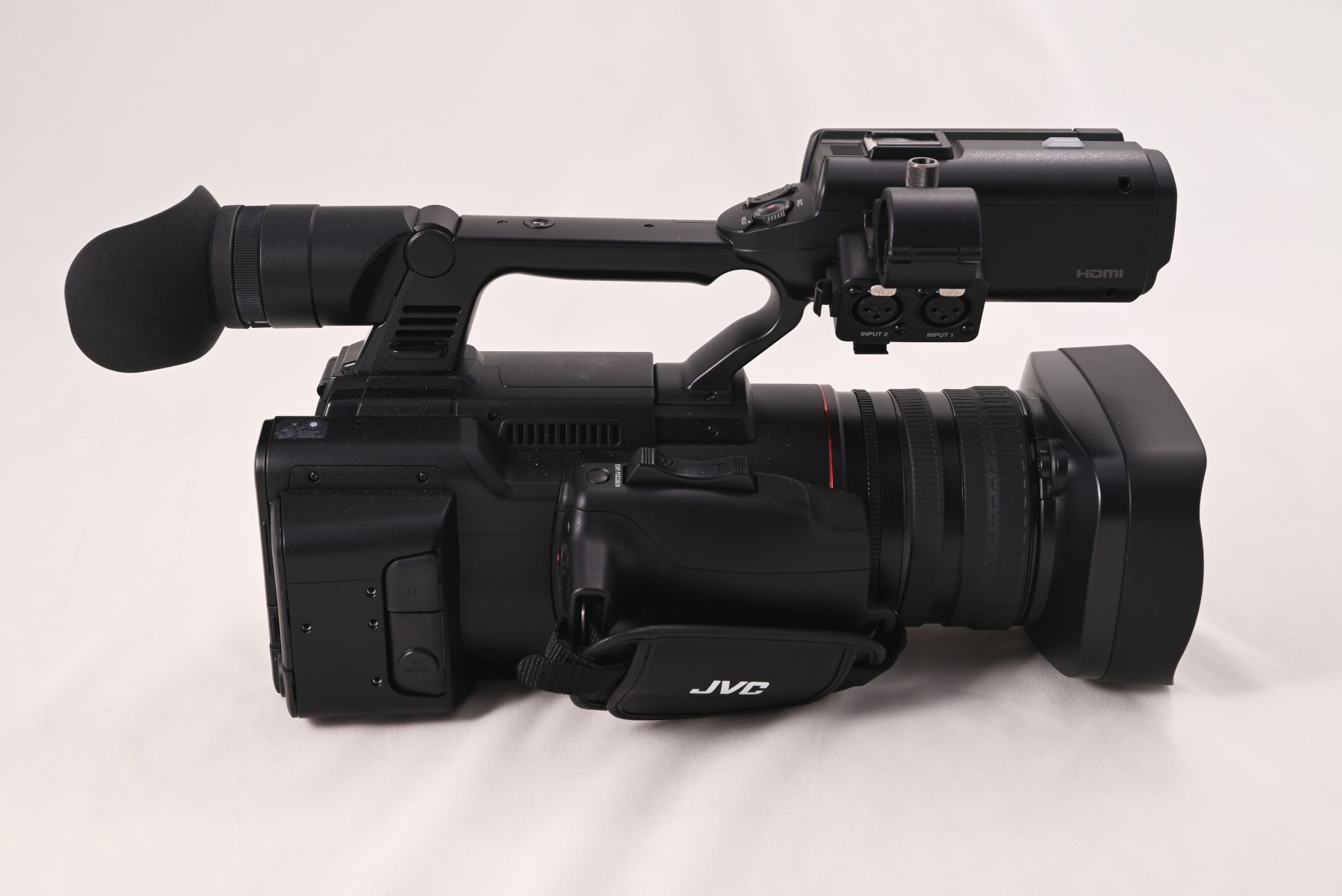

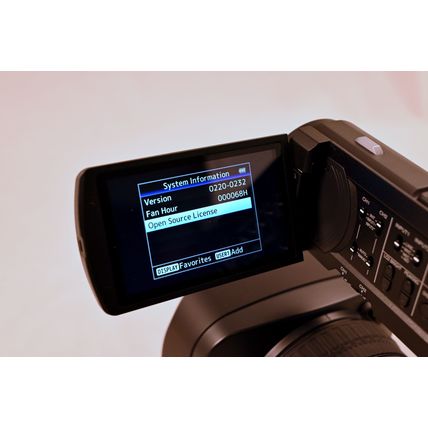

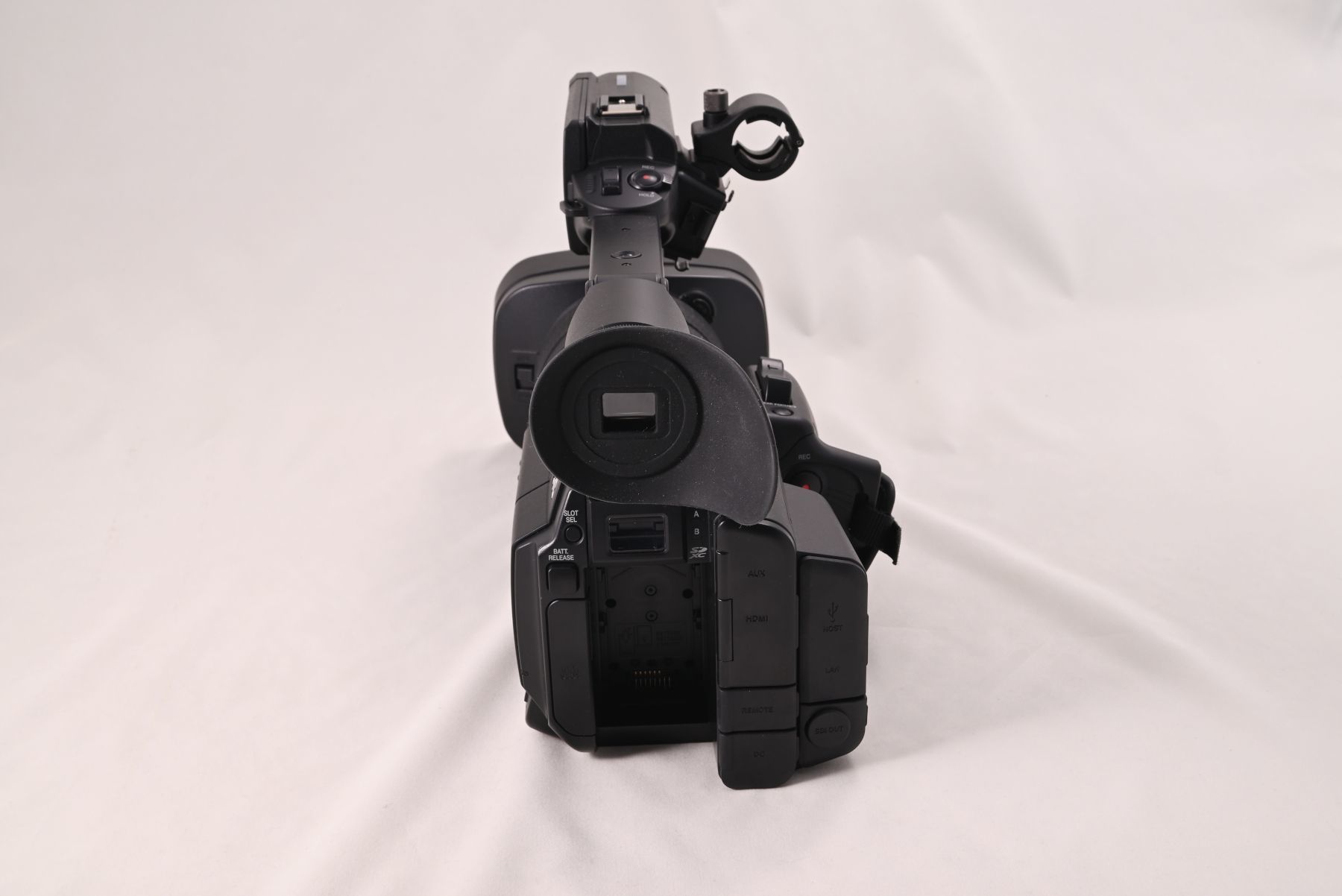

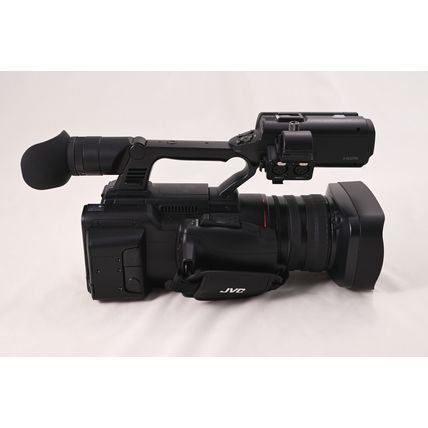

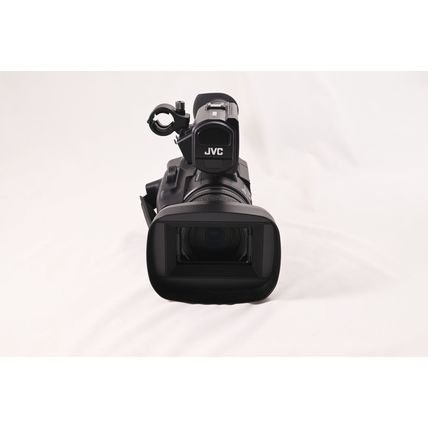

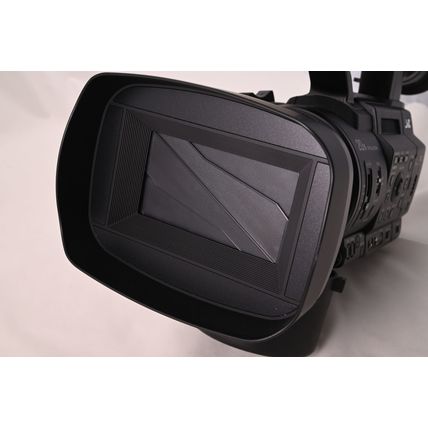

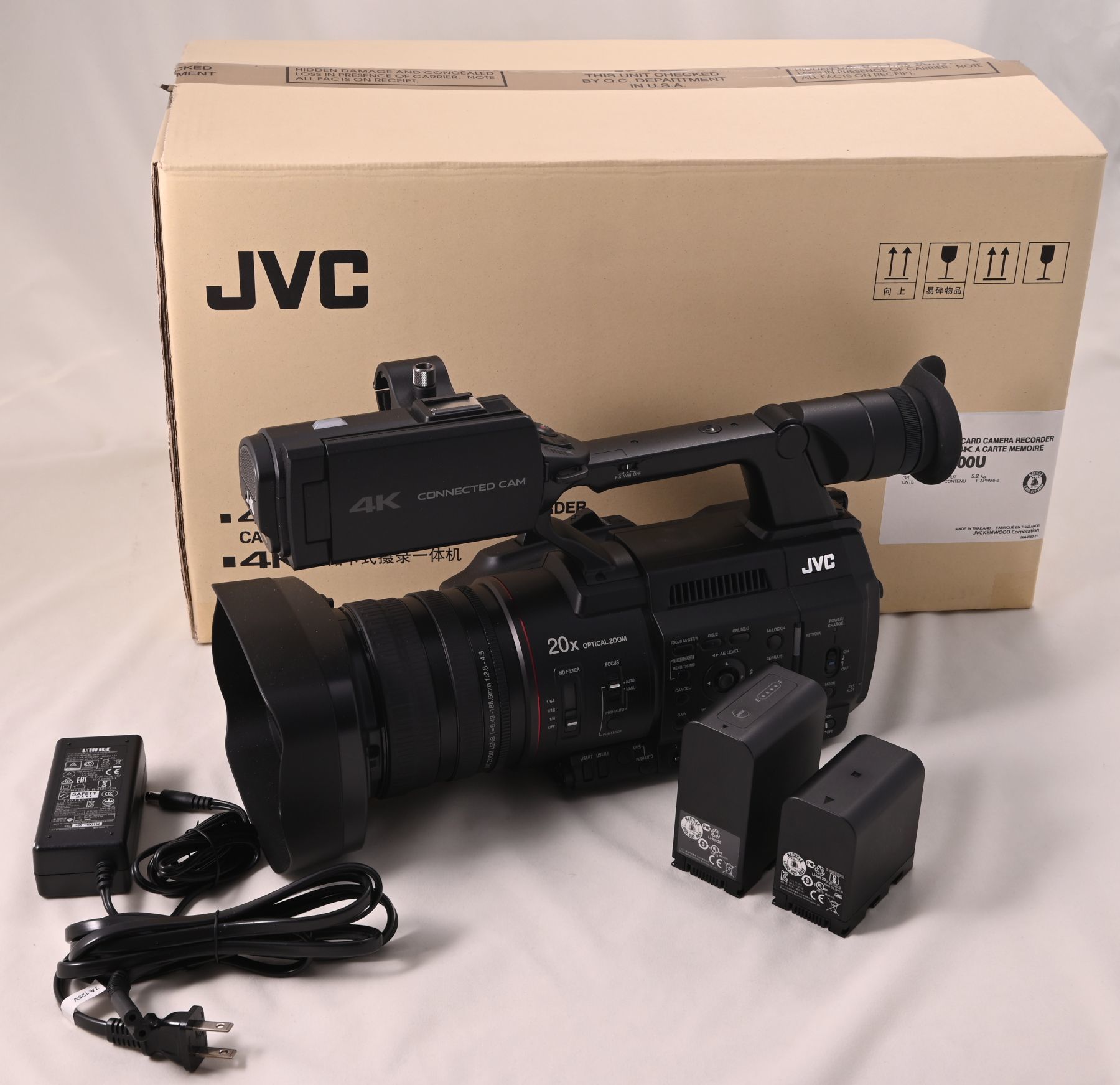

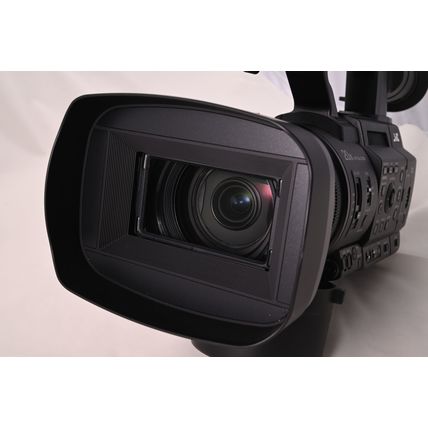

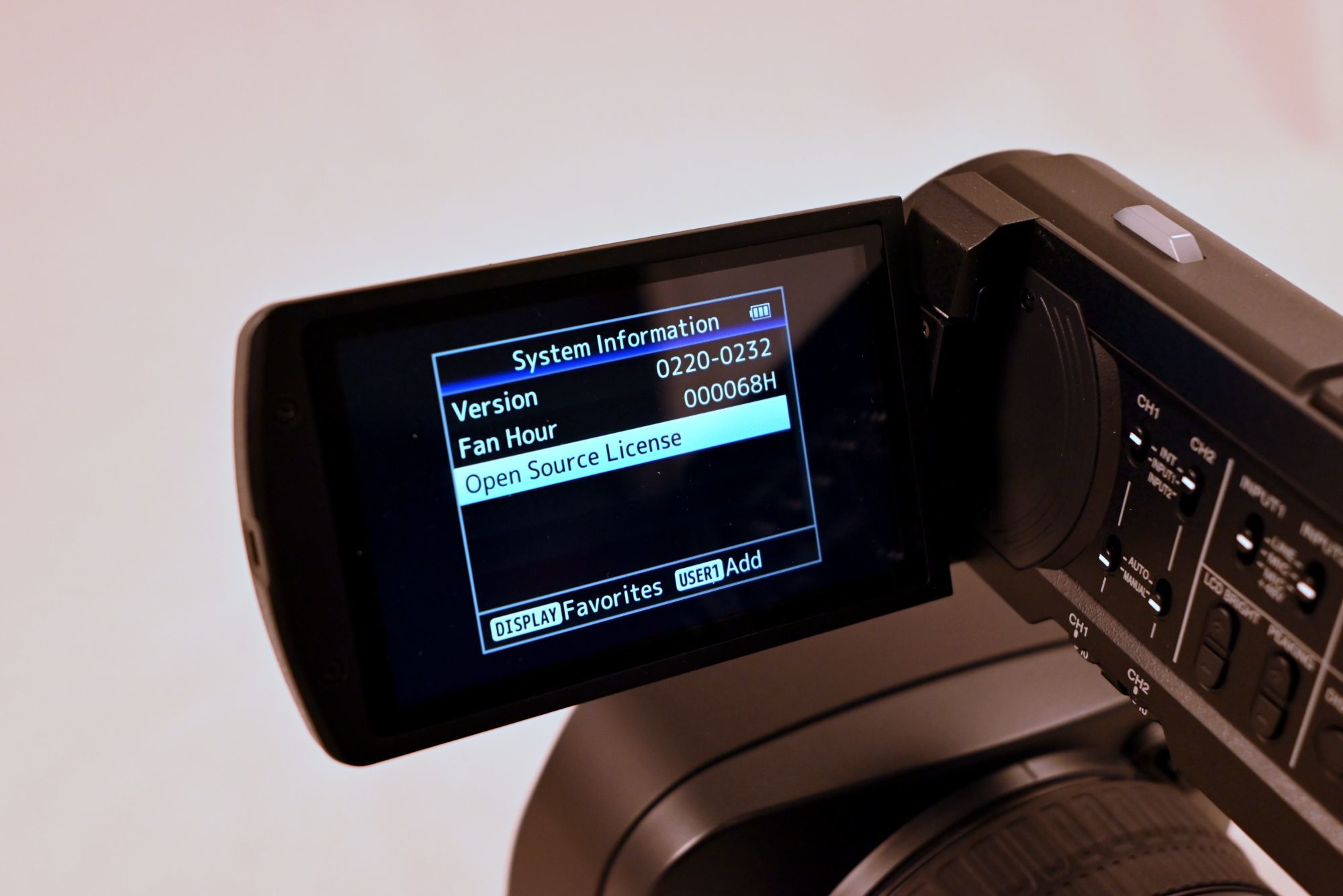

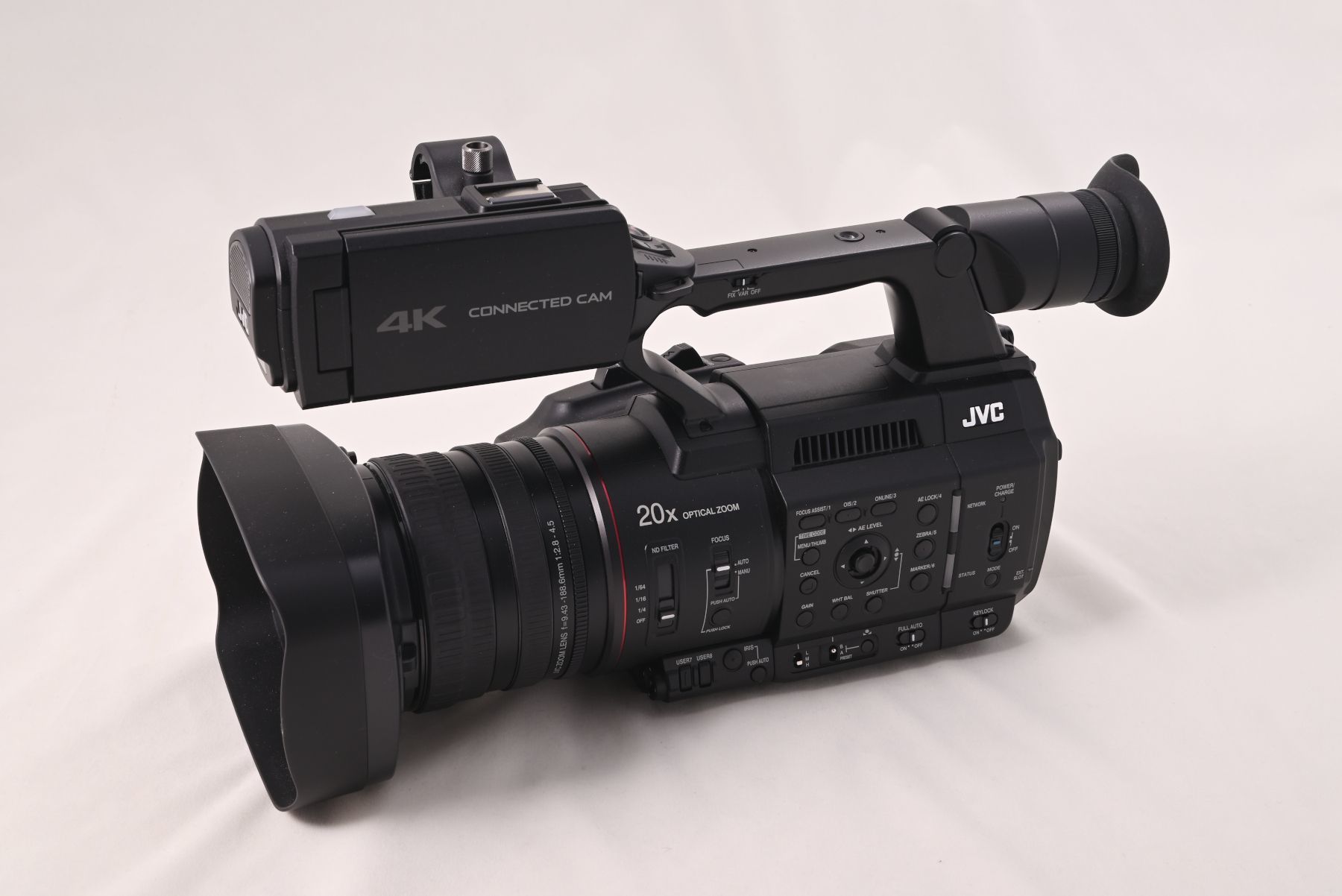

JVC GY-HC500U, 1" CMOS 4K Professional Camcorder, with accessories – Only 68Hrs

Sensor Resolution

Effective: 9.35 Megapixel

Image Sensor

1"-Type CMOS

Internal Recording Modes

H.264
960 x 540 [1.2 to 3Mb/s]
720 x 480 [8 Mb/s]
480 x 270 [1.2 to 3 Mb/s]
H.2644:2:2 10-Bit
3840 x 2160 at 24.00/25/29.97 fps [70 to 150Mb/s]
1920 x 1080 [8 to 50 Mb/s]
1280 x 720 [8 to 50Mb/s]
ProRes 422/ProRes 422 HQ/ProRes 422LT 4:2:210-Bit
3840 x 2160 up to 50/59.94 fps

Show More

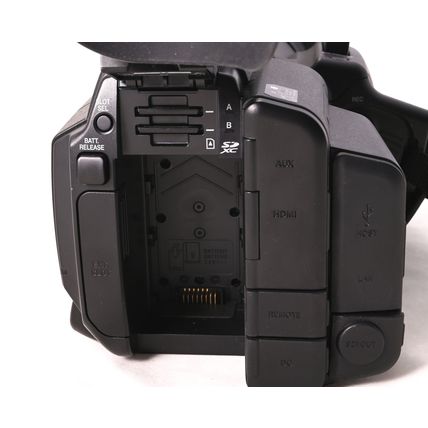

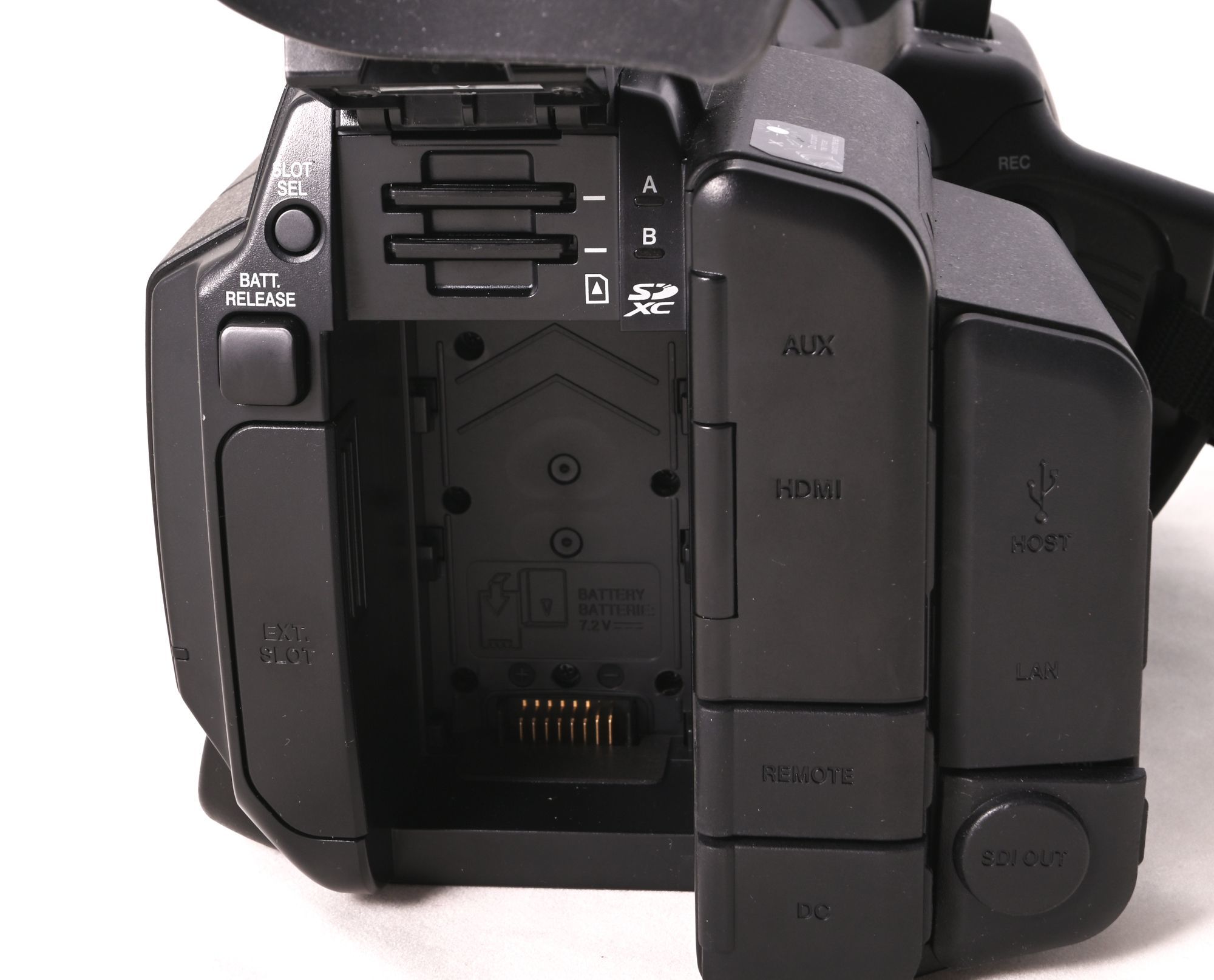

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 orFaster Recommended]

VideoI /O

1x BNC (3G-SDI) Output
1x HDMIOutput
1x 1/8" / 3.5 mm TRRS A/V (Composite) Output

Mobile App Compatible

No

Battery Type

JVC BN-VC296G

Sensor Resolution

Effective: 9.35 Megapixel

Image Sensor

1"-Type CMOS

Built-In ND Filter

Mechanical Filter Wheel with Clear, 2-Stop(1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters

Capture Type

Video Only

Shutter Type

Electronic Rolling Shutter

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/6 Second

Sensitivity

f/11 at 2000 lux 89% Reflectance

Focal Length

9.4 to 188.6mm (35mm Equivalent: 28 to560mm)

Optical Zoom Ratio

20x

Maximum Aperture

f/2.8 to 4.5

Filter Size

82 mm

Control Rings

Focus
Zoom
Iris

Focus Control

Autofocus
Manual Focus

Internal Recording Modes

H.264
960 x 540 [1.2 to 3Mb/s]
720 x 480 [8 Mb/s]
480 x 270 [1.2 to 3 Mb/s]
H.2644:2:2 10-Bit
3840 x 2160 at 24.00/25/29.97 fps [70 to 150Mb/s]
1920 x 1080 [8 to 50 Mb/s]
1280 x 720 [8 to 50Mb/s]
ProRes 422/ProRes 422 HQ/ProRes 422LT 4:2:210-Bit
3840 x 2160 up to 50/59.94 fps

Built-In Microphone

Stereo

Audio Recording

MOV:
MP4:
Proxy:

IP Streaming

MPEG2, RTMP, RTP, RTSP, TCP, UDP
640x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s)

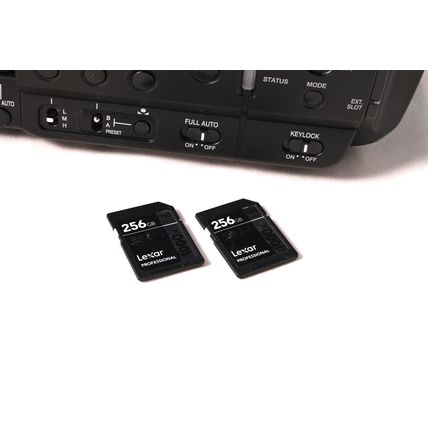

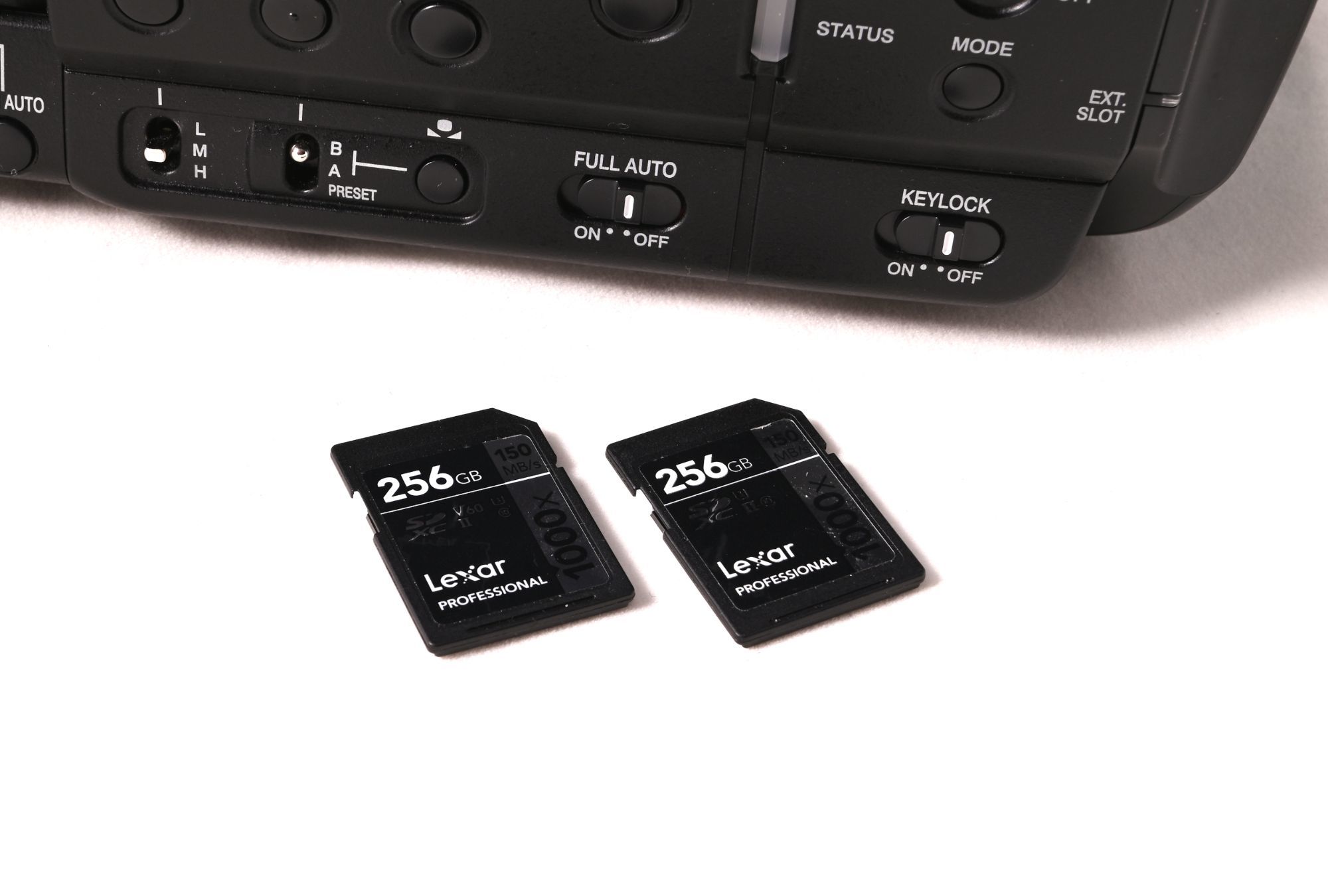

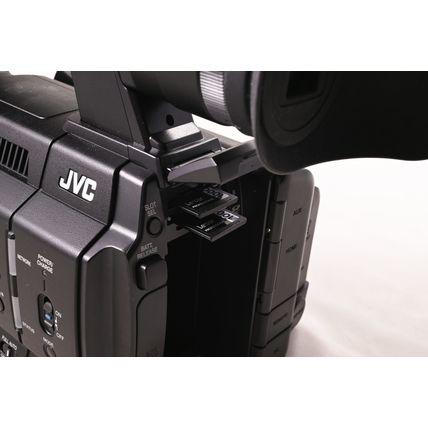

Media/Memory Card Slot

Dual Slot: SD/SDHC/SDXC (UHS-I) [U3/V30 orFaster Recommended]

Video I/O

1x BNC (3G-SDI) Output
1x HDMIOutput
1x 1/8" / 3.5 mm TRRS A/V (Composite) Output

Audio I/O

2x XLR 3-Pin Mic/Line (+48 V Phantom Power)Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Input
1x1/8" / 3.5 mm TRS Stereo Headphone Output

Power I/O

1x Barrel (12VDC) Input

Other I/O

1x 2.5 mm Sub-Mini
1x RCA (Timecode)
1xUnspecified USB (LAN) Data
1x RJ45 (LAN)
1x 2.5 mmSub-Mini Control

Wireless

No

Mobile App Compatible

No

Global Positioning (GPS, GLONASS, etc.)

No

Type

Built-In Electronic (LCOS)

Size

0.4"

Resolution

1280 x 960 (1,228,800 Dot)

Focus Type

Auto and Manual Focus

Focus Mode

Automatic, Manual Focus

Battery Type

JVC BN-VC296G

Accessory Mounting Thread

No

Dimensions (W x H x D)

7.7 x 9.1 x 17.5" / 195 x 230 x 445 mm

Weight

7.94 lb / 3.6 kg
